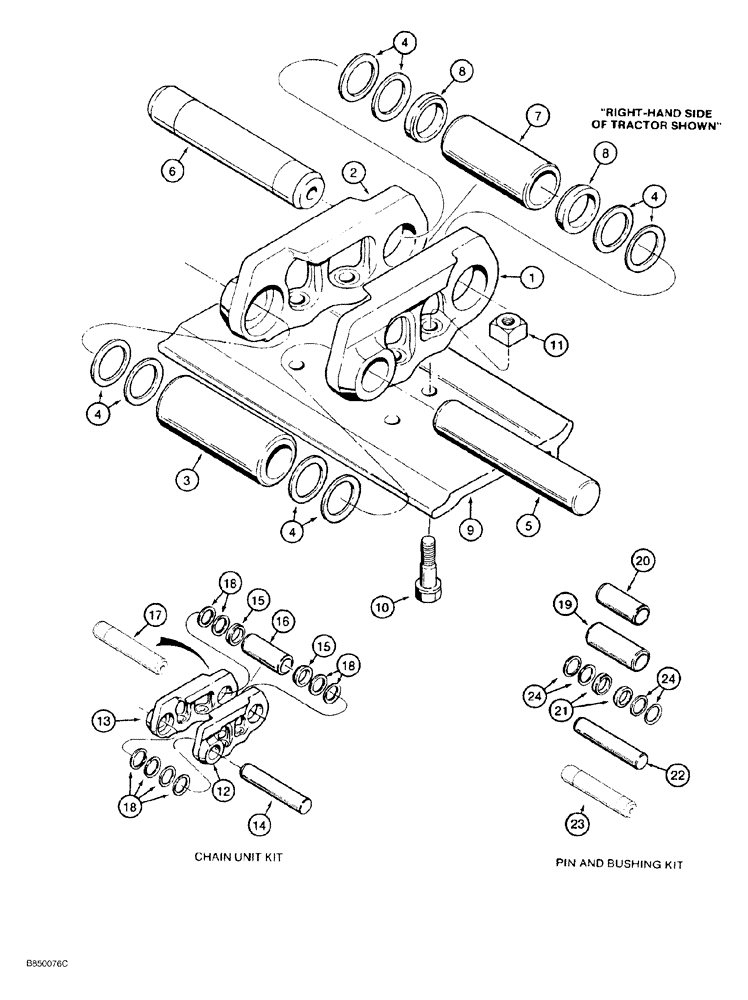

Запчасти Case 550G (5-12) - SEALED TRACK CHAIN (04) - UNDERCARRIAGE

R57371

CHAIN (CE)

37 unit, Includes: Ref. 1 - 8

2шт.

1

R57404

CHAIN LINK

Track, RH

37шт.

2

R57403

CHAIN LINK

Track, LH

37шт.

3

R57378

BUSHING

link, 4-3/4" long

36шт.

4

R52291

SEAL

Belleville spring

148шт.

5

R57367

PIN

29 mm (1-1/8") dia.

36шт.

6

R57366

PIN,28.24mm OD x 167mm L

master link, for oversized pin order Ref. 23 R57412

1шт.

7

R57379

BUSHING

master link, 4" long

1шт.

8

R57411

SPACER

master bushing

2шт.

9

R57417

PLATE

SHOE track, 406 mm (16")

74шт.

10

R57374

BOLT

hex, special, 9/16" NF x 1-25/32"

296шт.

11

R57375

SQUARE NUT

square, special, 9/16" NF

296шт.

R57414

CHAIN (AG)

KIT unit, includes instruction sheet, Includes: Ref. 12 - 18

1шт.

12

R57404

CHAIN LINK

Track, RH

1шт.

13

R57403

CHAIN LINK

Track, LH

1шт.

14

R57367

PIN

29 mm (1-1/8") dia.

2шт.

15

R57411

SPACER

master bushing, used with master pin

2шт.

16

R57379

BUSHING

master link, 4" long

1шт.

17

R57366

PIN,28.24mm OD x 167mm L

master link, for oversized pin order Ref. 23 R57412

1шт.

18

R52291

SEAL

Belleville spring, bushing

8шт.

R57413

PIN

KIT bushing, includes instruction sheet, services complete track chain for both sides of tractor, Includes: Ref. 19 - 24

1шт.

19

R57378

BUSHING

link, 4-3/4" long, pin and bushing kit

72шт.

20

R57379

BUSHING

master link, 4" long, pin and bushing kit

2шт.

21

R57411

SPACER

master bushing, pin and bushing kit

4шт.

22

R57367

PIN

29 mm (1-1/8") dia., pin and bushing kit

72шт.

23

R57412

PIN

Master, 0.08" oversized, pin and bushing kit

2шт.

24

R52291

SEAL

Belleville spring, bushing, pin and bushing kit

296шт.
