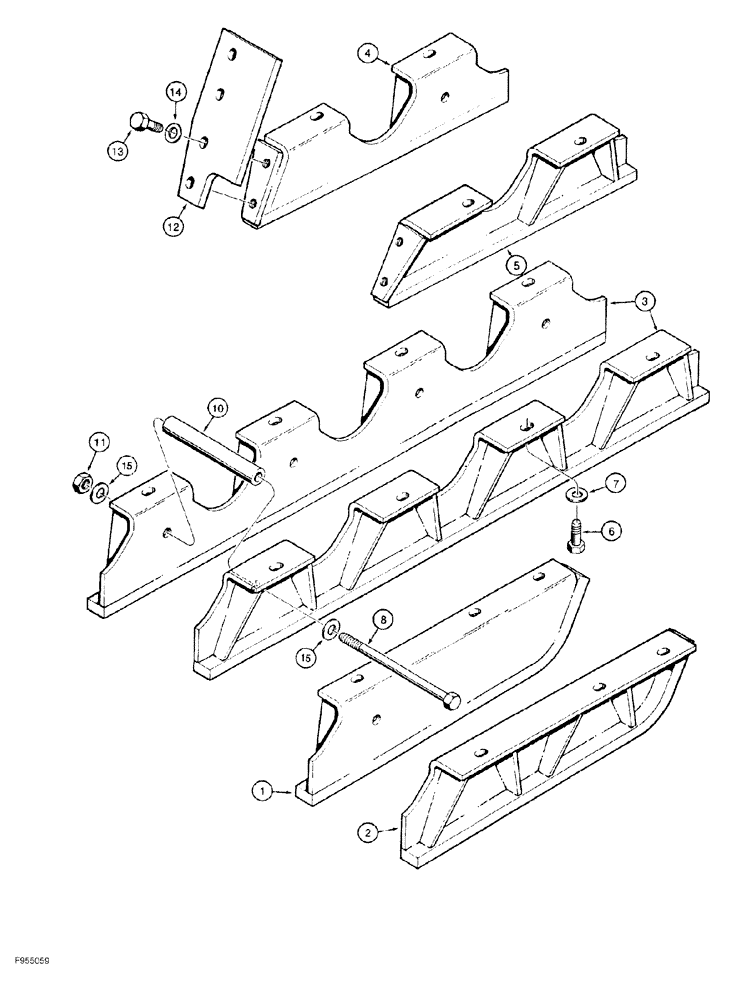

Запчасти Case 550G (5-10) - TRACK GUARDS (04) - UNDERCARRIAGE

1

141195A1

GUARD

track, front, left-hand

2шт.

2

141194A1

GUARD

track, front, right-hand

2шт.

3

141196A1

GUARD

track, center

4шт.

4

141198A1

GUARD

track, rear, right-hand

2шт.

5

141197A1

GUARD

track, rear, left-hand

2шт.

6

106-9820

LOCK BOLT,Locking, 1/2"-13 x 1 1/4", G5, Full Thd

36шт.

7

496-21053

WASHER,17/32" x 1 1/16" x .134"

Hardened

36шт.

8

413-12144

BOLT,Hex, 3/4" - 10 x 9", Gr 5

hex, 3/4" NC x 9"

12шт.

10

141188A1

SPACER

track guards

12шт.

11

231-41112

LOCK NUT,3/4"-10, GB

12шт.

12

R57458

COVER

GUARD rear, sprocket

4шт.

13

106-9820

LOCK BOLT,Locking, 1/2"-13 x 1 1/4", G5, Full Thd

16шт.

14

496-21053

WASHER,17/32" x 1 1/16" x .134"

Hardened

16шт.

15

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

flat, special, 3/4"

8шт.
