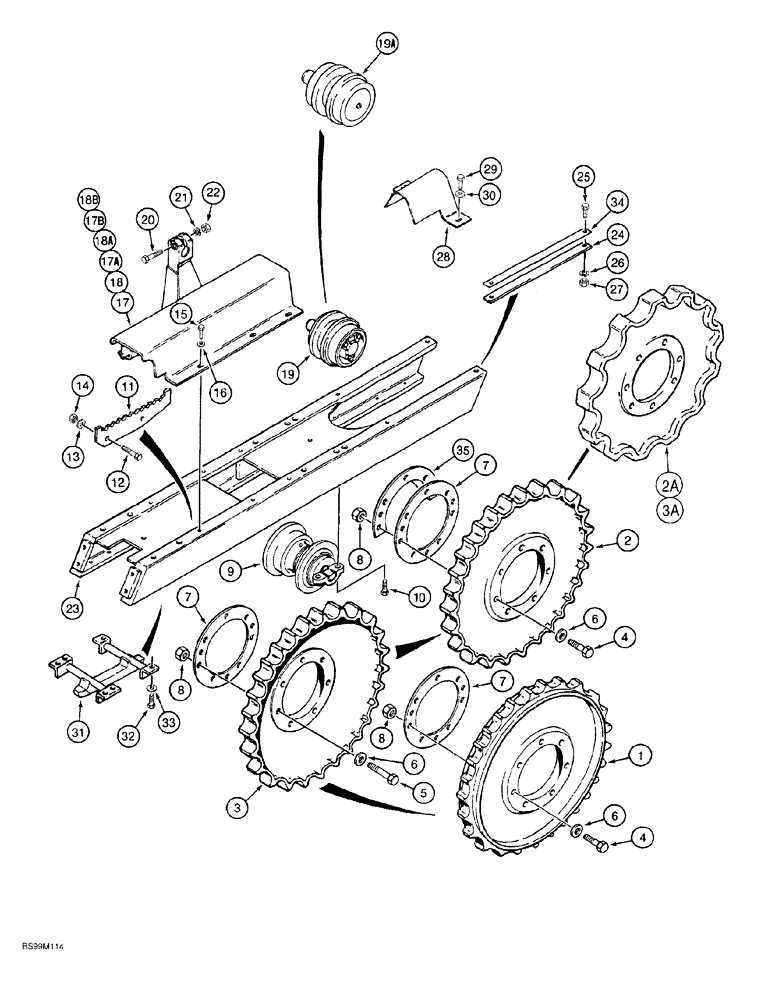

Запчасти Case 550G (5-02) - TRACK FRAME, SPROCKET, ROLLER, AND RECOIL HOUSING (04) - UNDERCARRIAGE

1

R57765

SPROCKET ASSY.

for rubber track, 53" gauge long track models

2шт.

2

R57298

DRIVE SPROCKET

for metal track, 53" gauge long track models

2шт.

2

R57392

DRIVE SPROCKET

relieved, for metal track, 53" gauge long track models

2шт.

2a

199706A1

SPROCKET ASSY.

for extended life track, 53" gauge long track models

2шт.

3

R57281

DRIVE SPROCKET

64" gauge

2шт.

3a

254393A1

SPROCKET ASSY.

64" gauge, ELT models only

2шт.

4

R27954

BOLT

special, 3/4" NC x 3"

14шт.

5

R39270

BOLT

hex, special, 3/4" NC x 3-1/2", grade 8

14шт.

6

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

flat, special, 3/4"

14шт.

7

R46160

SHIM,.032" Thk

Sprocket

1шт.

8

232-41112

NUT,3/4"-10, GC

14шт.

9

R57357

TRACK ROLLER

track, see Figure 5-08

12шт.

10

106-91024

LOCK BOLT,Locking, 5/8"-11 x 1 1/2", G5, Full Thd

48шт.

11

100776A1

STEP

PLATE, 53" gauge models only

2шт.

12

413-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

hex, 5/8" NC x 2-3/4"

4шт.

13

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

Hardened

4шт.

14

425-1010

NUT,5/8"-11, G5

4шт.

15

326-816

BOLT,Hex, 1/2" - 13 x 1", Gr 8

10шт.

16

496-21053

WASHER,17/32" x 1 1/16" x .134"

Hardened

10шт.

17

187931A1

HOUSING

recoil, right-hand, used on rubber track models

1шт.

17a

109712A1

HOUSING

recoil, right-hand, used on steel track models

1шт.

17b

187917A2

HOUSING

recoil, right-hand, used on 53" steel track models, Replaces: 187917A1

1шт.

18

187932A2

HOUSING

recoil, left-hand, used on rubber track models, Replaces: 187932A1

1шт.

18a

109711A1

HOUSING

recoil, left-hand, used on steel track models

1шт.

18b

187916A2

HOUSING

recoil, left-hand, used on 53" steel track models, Replaces: 187916A1

1шт.

19

R33965

ROLLER

ASSY. carrier, used on all models except models with extended life track, if used, see Figure 5-08, no longer available, order 198941A1 shown below

2шт.

19a

198941A1

ROLLER ASSY.

carrier, used on all models including models with extended life track, see Figure 5-08

2шт.

20

326-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 8

2шт.

21

R24323

WASHER

flat, special

2шт.

22

231-1448

NUT,1/2"-13, GB

hex, NC

2шт.

23

175297A1

FRAME

track

2шт.

24

R58373

BAR

PLATE wear, track frame

4шт.

25

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

8шт.

26

492-11062

BEARING WASHER,5/8"

8шт.

27

425-1010

NUT,5/8"-11, G5

8шт.

28

R57631

GUARD

track adjuster, if used

2шт.

29

326-816

BOLT,Hex, 1/2" - 13 x 1", Gr 8

If used

4шт.

30

496-21053

WASHER,17/32" x 1 1/16" x .134"

Hardened

4шт.

31

247213A1

GUIDE

rubber track, Replaces: 183844A1

4шт.

32

113-2448

LOCK BOLT,Locking, 1/2"-13 x 1 1/2", G8

24шт.

33

496-21053

WASHER,17/32" x 1 1/16" x .134"

Hardened

24шт.

34

R58722

SHIM,0.81mm Thk

Wear plate

1шт.

35

117702A1

GUARD

seal, final drive

4шт.
