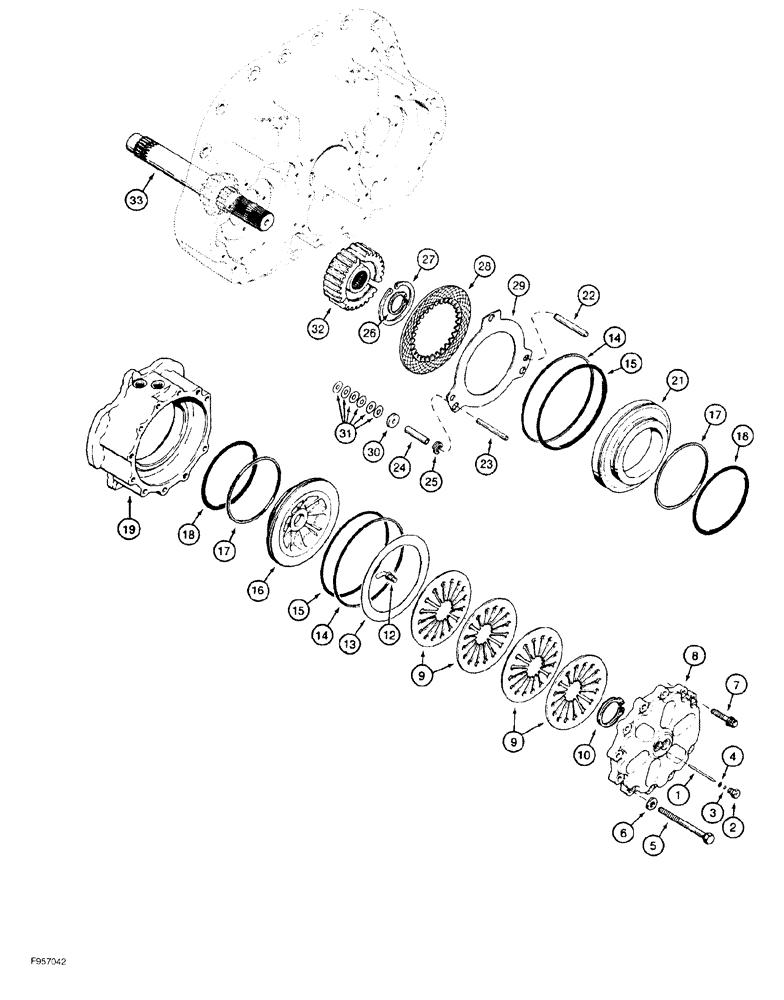

Запчасти Case 550G (7-06) - TRANSMISSION BRAKES (03) - TRANSMISSION

REF

INSTRUCTION

TRANSMISSION ASSY., see Figure 6-08 for correct assembly, Includes: Ref. 1 - 33

1шт.

1

1997011C4

PIN

GAUGE sight, brake wear

2шт.

2

1997050C3

PLUG

special, sight gauge

2шт.

3

238-5006

O-RING,0.07" Thk x 0.114" ID, -6, Cl 5, 75 Duro

2шт.

4

100-2531

SNAP RING,0.312", Int, #31

2шт.

5

107-9684

LOCK BOLT,Locking, 3/8"-16 x 5 1/4", G8

16шт.

6

396-21041

WASHER,10.31mm ID x 20.63mm OD x 2.26mm Thk

flat, hardened, 13/32" x 13/16" x 3/32"

16шт.

7

380-2628

12 PT SCREW,Flg, 3/8" - 16 x 1 3/4"

12-point flange, chemical locking, 3/8" NC x 1-3/4"

6шт.

8

1348963C3

COVER

brake

2шт.

9

1348986C1

SPRING

parking brake

8шт.

10

100-16193

SNAP RING,#193, Ext

2шт.

12

1997079C1

TUBE,7.94 mm OD

brake, lube

2шт.

13

1348999C1

SPRING WASHER,146.8mm ID x 187mm OD x 1.05mm Thk

spring, parking brake

2шт.

14

1348992C1

SEAL

brake piston, outer

4шт.

15

238-7167

O-RING,0.103" Thk x 6.987" ID, -167, Cl 7, 75 Duro

4шт.

16

1348971C2

PISTON

parking brake

2шт.

17

1348903C1

SEAL

brake piston, inner

4шт.

18

238-5159

O-RING,0.103" Thk x 4.987" ID, -159, Cl 5, 75 Duro

4шт.

19

1997049C1

HOUSING

brake, right-hand

1шт.

20

1348960C2

HOUSING

brake, left-hand, not illustrated

1шт.

21

1348972C2

PISTON

brake

2шт.

22

37-1852

DOWEL,3/4" x 3 1/4"

dowel, hardened, 1/2" x 3-1/4"

4шт.

23

37-1652

DOWEL,3/8" x 3 1/4"

dowel, hardened, 3/8" x 3-1/4"

6шт.

24

1348983C1

TUBE,9.83 mm ID, 12.7 mm OD, 50 mm Length

self-adjuster

6шт.

25

100-1450

SNAP RING,#50, Ext

Self-adjuster

12шт.

26

800-1140

SNAP RING,M40, Ext

Retaining, Brake hub

2шт.

27

800-2188

SNAP RING,M88, Int

internal retaining, No. 88, brake hub

2шт.

28

G102354

PLATE

DISC friction, brake

8шт.

29

1348965C3

LARGE PLATE

PLATE, LARGE separator, brake

10шт.

30

496-41041

WASHER,13/32" x 1 1/8" x .134"

Hardened, Replaces 25553R1

6шт.

31

1348985C1

SPRING

piston return

36шт.

32

1348981C1

HUB

brake

2шт.

33

REF

INSTRUCTION

SHAFT bevel pinion, see Figure 6-08, Ref. 9

2шт.
