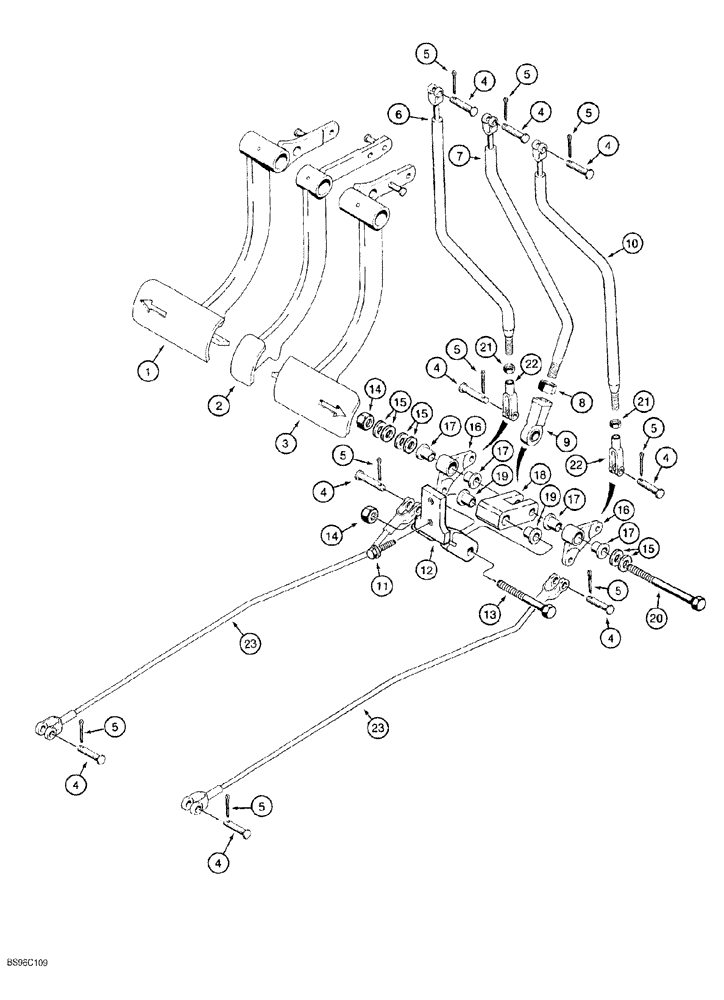

Запчасти Case 550G (6-40) - TRANSMISSION CLUTCH CUTOUT LINKAGE (03) - TRANSMISSION

1

R58466

PEDAL

ASSY. brake, left-hand, see Figure 7-02 for components and related parts

1шт.

2

R58628

PEDAL

ASSY. brake, center, see Figure 7-02 for components and related parts

1шт.

3

R58465

PEDAL

ASSY. brake, right-hand, see Figure 7-02 for components and related parts

1шт.

4

D149287

PIN,7.9mm OD x 26.72mm L

Clevis, Special, hardened, 5/16" x 15/16"

9шт.

5

432-612

COTTER PIN,3/32" x 3/4"

9шт.

6

R58671

ROD

left-hand, Serial Range: pedal,-bellcrank

1шт.

R58704

ROD

ASSY. center pedal, to clutch cutout block, Includes: Ref. 7 - 9

1шт.

7

NSS

NOT SOLD SEPARAT

ROD center pedal, to clutch cutout block

1шт.

8

425-158

JAM NUT,Jam, 1/2"-20, G5

1шт.

9

L115782

BALL JOINT

female

1шт.

10

R58669

ROD

right-hand, Serial Range: pedal,-bellcrank

1шт.

11

160-102

BOLT,Hex, 3/8" - 16 x 1", Gr 8, Full Thd

2шт.

12

R58701

BRACKET

block mounting

1шт.

13

426-864

BOLT,Hex, 1/2" - 13 x 4", Gr 8

hex, 1/2" NC x 4", grade 8

1шт.

14

231-1448

NUT,1/2"-13, GB

hex, NC

2шт.

15

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32")

6шт.

R58374

CRANK LEVER

ASSY. bell, clutch cutout, Includes: Ref. 16 and 17

2шт.

16

NSS

NOT SOLD SEPARAT

BELLCRANK clutch cutout

1шт.

17

R58311

BRONZE BUSHING

BUSHING bronze

2шт.

R58375

BLOCK

ASSY. connection, clutch cutout, Includes: Ref. 18 and 19

1шт.

18

NSS

NOT SOLD SEPARAT

BLOCK connection, clutch cutout

1шт.

19

R58311

BRONZE BUSHING

BUSHING bronze

2шт.

20

426-888

BOLT,Hex, 1/2" - 13 x 5-1/2", Gr 8

BOLT hex, 1/2" NC x 5-1/2", grade 8

1шт.

21

329-115

NUT,5/16"-24, G8

2шт.

22

213-125

ADJUSTABLE CLEVIS,5/16" - 32

2шт.

23

R58644

ROD

, Serial Range: bellcrank-transmission

2шт.
