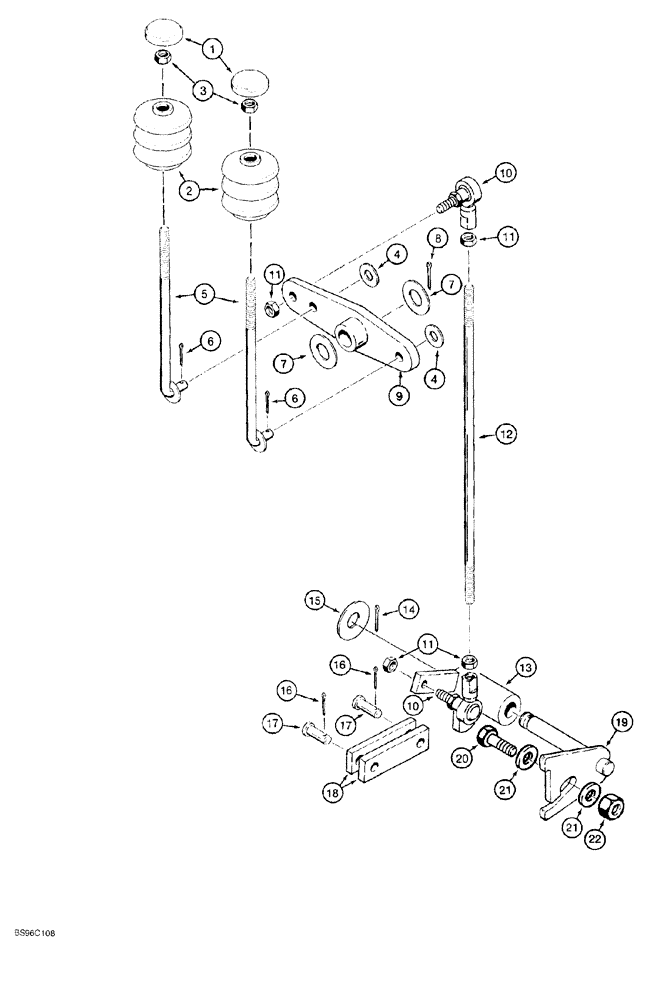

Запчасти Case 550G (6-38) - TRANSMISSION RANGE SHIFT CONTROL (03) - TRANSMISSION

1

R57963

PEDAL

range shift control

2шт.

2

D141049

BOOT

pedal

2шт.

3

425-106

NUT,3/8"-16, Cl 5

2шт.

4

495-21044

WASHER,3/8"

(flat, 7/16" x 1" x 5/64")

2шт.

5

R58478

ROD

pedal

2шт.

6

432-612

COTTER PIN,3/32" x 3/4"

2шт.

7

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

flat, hardened, 22 x 37 x 4 mm

2шт.

8

32-1220

COTTER PIN,3/16" x 1 1/4"

1шт.

9

R58623

LEVER

BELLCRANK range shift control

1шт.

10

R47940

BALL JOINT

control lever, 3/8" NF

2шт.

11

425-116

NUT,3/8" - 24, Gr 5

Hex

4шт.

12

S224930

STUD

ROD bellcrank to range shift lever

1шт.

13

R58567

LEVER

range shift control

1шт.

14

432-1016

COTTER PIN,5/32" x 1"

5/32" x 1"

1шт.

15

495-11066

WASHER,5/8", SAE

flat, 21/32" x 1-5/16" x 3/32"

1шт.

16

432-612

COTTER PIN,3/32" x 3/4"

2шт.

17

D149288

PIN,8.33mm OD x 30.66mm L

Clevis, Special

2шт.

18

R53701

LINK

range control lever

2шт.

19

100729A1

SHAFT

range shift control

1шт.

20

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

1шт.

21

496-21053

WASHER,17/32" x 1 1/16" x .134"

Hardened

2шт.

22

231-1448

NUT,1/2"-13, GB

hex, NC

1шт.
