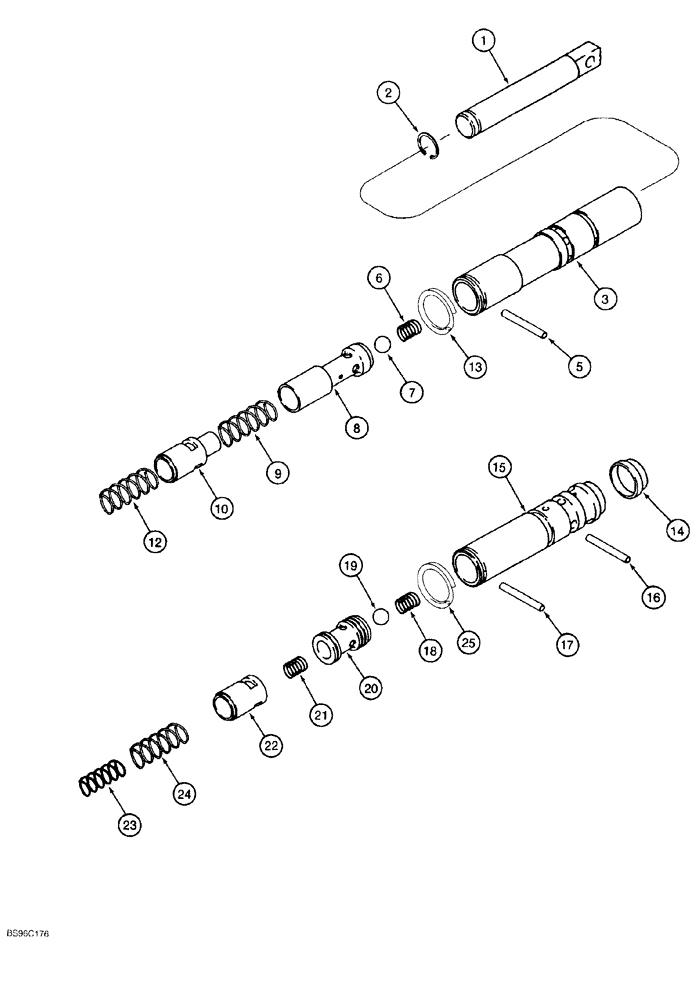

Запчасти Case 550G (6-24) - TRANSMISSION CONTROL VALVE SPOOL ASSEMBLIES (03) - TRANSMISSION

REF

INSTRUCTION

TRANSMISSION ASSY., see Figure 6-08 for correct assembly, Includes: Ref. 1 - 25

1шт.

189265A2

SPOOL

ASSY. clutch cutout, Replaces: 189265A1, Includes: Ref. 1 - 13

2шт.

1

138436A1

ROD

spool eye

1шт.

2

G107637

RING, SNAP

RING SNAP retaining, spool rod

1шт.

189269A2

SPOOL

ASSY. clutch cutout, Includes: Ref. 3 - 13

1шт.

3

NSS

NOT SOLD SEPARAT

SPOOL sleeve

1шт.

5

37-1214

DOWEL,1/8" x 7/8"

dowel, hardened, 1/8" x 7/8"

1шт.

6

129700A1

SPRING

check valve ball

1шт.

7

211-1012

BALL,3/8" Dia

chrome alloy steel, 3/8", grade 24

1шт.

8

189267A1

SPOOL

track modulation

1шт.

9

189259A1

SPRING

spool return, track reducer

1шт.

10

189268A1

PISTON

track modulation

1шт.

12

121866A1

SPRING

track modulation, outer

1шт.

13

102-1393

SNAP RING,#93, Ext, Spiral

external spiral retaining, No. 93, spring and piston, Replaces: 121493A2

1шт.

126430A3

SPOOL

ASSY. forward and reverse modulation, Includes: Ref. 14 - 25

1шт.

14

121494A1

STOP

spool, forward and reverse modulation

1шт.

15

126255A3

SLEEVE

modulation spool, forward and reverse, Replaces: 126255A2

1шт.

16

132923A1

PIN

retaining, 3.18 x 24 mm long, forward and reverse modulation spool

1шт.

17

37-1214

DOWEL,1/8" x 7/8"

dowel, hardened, spring retaining, spool end, , forward and reverse modulation spool 1/8" x 7/8"

1шт.

18

129700A1

SPRING

check valve ball, forward and reverse modulation spool

1шт.

19

211-1012

BALL,3/8" Dia

chrome alloy steel, 3/8", grade 24, forward and reverse modulation spool

1шт.

20

126252A1

SPOOL

forward and reverse modulation

1шт.

21

127427A1

SPRING

spool return, forward/reverse reducer, modulation

1шт.

22

121492A1

PISTON

forward/reverse modulation, spool

1шт.

23

121870A1

SPRING

forward/reverse modulation, spool

1шт.

24

121871A1

SPRING

forward/reverse modulation, spool

1шт.

25

102-1393

SNAP RING,#93, Ext, Spiral

external spiral retaining, No. 93, spring and piston, Replaces: 121493A2, forward and reverse modulation spool

1шт.
