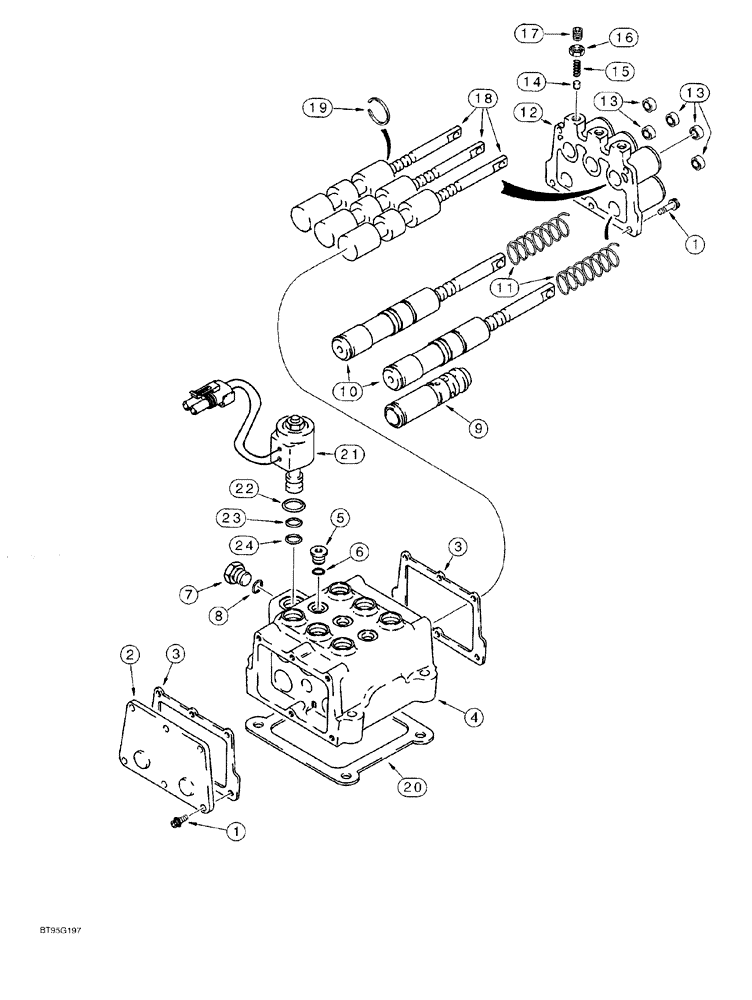

Запчасти Case 550G (6-22) - TRANSMISSION CONTROL VALVE ASSEMBLY (03) - TRANSMISSION

REF

INSTRUCTION

TRANSMISSION ASSY., see Figure 6-08 for correct assembly

1шт.

125588A4

VALVE

ASSY. transmission control, Replaces: 125588A3 valve

1шт.

1

193-511

HEX SOC SCREW,Sems, 1/4"-28 x 5/8"

lock, external tooth, with lock washer, 1/4" NF x 5/8"

11шт.

2

R21384

COVER

rear

1шт.

3

35665

GASKET

cover

2шт.

4

NSS

NOT SOLD SEPARAT

BODY control valve

1шт.

5

278548

PLUG,Hex, 7/16"-20 ORB

Incl Ref 6

3шт.

6

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

7

86529630

PLUG,Hex Soc, 3/8"-24 ORB

Includes Ref. 8

3шт.

8

237-6003

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

1шт.

9

126430A3

SPOOL

ASSY. forward/reverse modulation, see Figure 6-24

1шт.

10

189265A2

SPOOL

ASSY. clutch cutout, Replaces: 189265A1 spool, see Figure 6-24

2шт.

11

121865A1

SPRING

clutch cutout spool

2шт.

1542672C1

COVER

ASSY. front, Includes: Ref. 12 and 13

1шт.

12

NSS

NOT SOLD SEPARAT

COVER front

1шт.

13

G105700

OIL SEAL

oil, spool, double lip

5шт.

14

71120

VALVE

PIN dowel

3шт.

15

1542824C1

SPRING

poppet, detent

3шт.

16

131-407

LOCK NUT,Pal, 3/8" - 16, 0.145" High

3шт.

17

G104208

SET SCREW

special, oval point, sealant coated, 3/8" NC x 1/2"

3шт.

18

G107659

ROD

SPOOL ASSY. shift, Includes: Ref. 19

3шт.

19

G107637

RING, SNAP

RING SNAP retaining, shift spool

1шт.

20

1986527C1

GASKET

valve, base

1шт.

349296A1

CARTRIDGE

VALVE ASSY., 12 volt, Replaces: 110415A1, Includes: Ref. 21 - 24

1шт.

21

NSS

NOT SOLD SEPARAT

VALVE solenoid, 12 volt

1шт.

22

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

23

238-5014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

1шт.

24

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

1шт.
