Запчасти Case 550G (6-20) - TRANSMISSION HYDRAULIC LINES (03) - TRANSMISSION

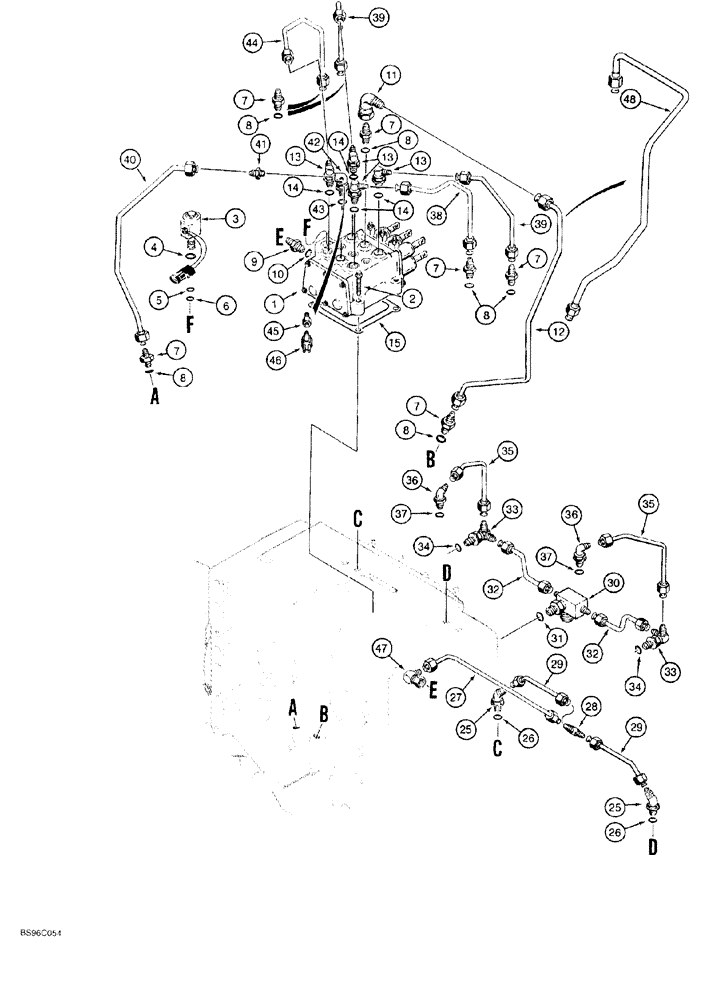

Схема запчастей Case 550G - (6-20) - TRANSMISSION HYDRAULIC LINES (03) - TRANSMISSION
14
14
41
39
15
6
40
48
9
29
37
13
8
39
25
31
8
36
25
28
37
44
14
47
34
7
33
7
7
4
34
7
36
1
13
2
30
26
11
7
45
32
29
3
43
12
38
10
33
35
32
13
46
35
8
5
8
7
27
26
8
42

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

TRANSMISSION ASSY., see Figure 6-08 for correct assembly, Includes: Ref. 1 - 48

1шт.

1

125588A4

VALVE

ASSY. transmission control, Replaces: 125588A3 valve, see Figure 6-22

1шт.

2

180-607

12 PT SCREW,Flg, 3/8" - 16 x 2", Gr 8

12-point flange, chemical coating, 3/8" NC x 2", grade 8

4шт.

349296A1

CARTRIDGE

VALVE ASSY., 12 volt, Replaces: 110415A1, Includes: Ref. 3 - 6

1шт.

3

NSS

NOT SOLD SEPARAT

VALVE solenoid, 12 volt

1шт.

4

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

5

238-5014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

1шт.

6

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

1шт.

7

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Adapter, Straight, O-ring boss, Incl. Ref 8

7шт.

8

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

9

218-5352

HYD CONNECTOR,9/16"-18, 37 Degree x 7/16"-20, O-Ring

ADAPTER straight, 9/16"-18 flare x 7/16"-20 O-ring boss, Includes: Ref. 10

1шт.

10

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

11

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

If used

1шт.

12

1997056C1

TUBE

forward, used with Ref. 11 elbow, if used

1шт.

13

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Includes: Ref. 14

4шт.

14

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

15

1986527C1

GASKET

, Serial Range: valve,-housing

1шт.

Part of Transmission Seal Kit P/N 138971A1

1шт.

25

218-5135

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

45 degree, 9/16"-18 flare x adjusting O-ring boss, Includes: Ref. 26

2шт.

26

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

27

140920A2

TUBE,9.25 mm OD, 208.2, 150.5 mm Length

parking brake supply

1шт.

28

218-593

TEE,9/16"-18, 37 Degree

9/16"-18 flare branch x flare x flare

1шт.

29

1997023C2

TUBE,9.52 mm OD

parking brake

2шт.

30

1997012C1

TEE

FITTING special, front of transmission, see Figure 6-30, Ref. 16 for attaching cooling system tube, Includes: Ref. 31

1шт.

31

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

32

1997107C1

TUBE,9.52 mm OD

special fitting, to tee at brake housing

2шт.

33

L104616

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 ORB

Special, Adjusting O-ring branch x flare x flare, Incl. Ref. 34

2шт.

34

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

35

1997029C1

TUBE,9.52 mm OD

track lube

2шт.

36

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

90 degree, 9/16"-18 flare x adjusting O-ring boss, Includes: Ref. 37

2шт.

37

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

38

135916A1

TUBE,12.7 mm OD, 222.6, 148.1 mm Length

low track, right-hand

1шт.

39

1997021C2

TUBE,12.7 mm OD

high track

2шт.

40

G108276

TUBE,0.5" OD

reverse

1шт.

41

218-444

HYD CONNECTOR,3/4" - 16 Male JIC x 3/8" - 18 Male NPTF

straight, 3/4"-16 flare x 3/8" PT

1шт.

42

G107178

ELBOW

90 degree, special, tapped for backup alarm switch plumbing, Includes: Ref. 43

1шт.

43

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

44

135918A1

TUBE,12.7 mm OD, 222.6, 148.1 mm Length

low track, left-hand

1шт.

45

R52651

FITTING

SNUBBER pressure switch

1шт.

46

D139904

SWITCH

pressure, backup alarm, see Figure 4-22

1шт.

47

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

1шт.

48

G110408

TUBE,12.7 mm OD x 273, 472 mm L

forward, replaces Ref. 11 elbow and Ref. 12 tube on some models, if used

1шт.

138971A1

SEAL KIT

KIT transmission

1шт.

Includes: Ref. 6 in Figure 6-06, Ref. 3's, 4, 24 and 26 in Figure 6-08, Ref. 6, 9, 12, 14, 16A's and 23 in Figure 6-10, Ref. 2, 5's, 8, 9, 11 - 14, 24, 32 - 35 and 44 in this figure, Ref. 1, 2, 14 - 17, and 29's in Figure 6-14, Ref. 37 (P/N A50199 and A50198) in Figure 6-16, Ref. 37 (P/N A50199 and A50198) in Figure 6-18, and Ref. 15 in Figure 6-20, plus an additional gasket not used in this application

1шт.
