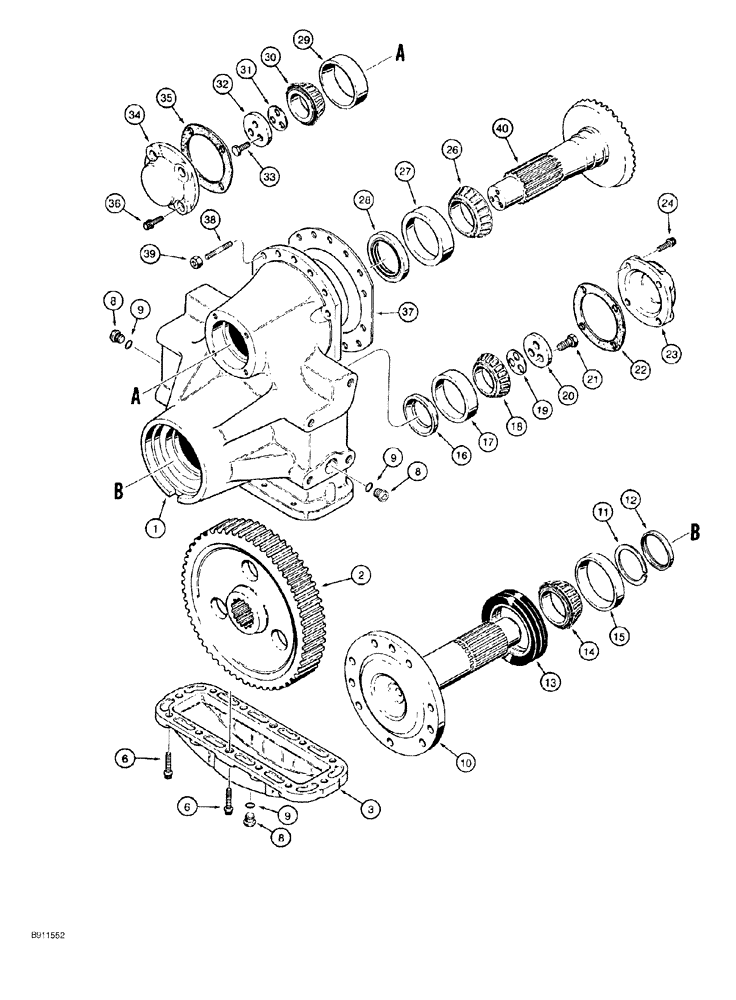

Запчасти Case 550G (6-18) - TRANSMISSION ASSEMBLY, FINAL DRIVE, 64 INCH GAUGE LONG TRACK MODELS (03) - TRANSMISSION

REF

INSTRUCTION

TRANSMISSION ASSY., see Figure 6-08 for correct assembly, Includes: Ref. 1 - 40

1шт.

G104730

TRANSMISSION

DRIVE ASSY. final, 64" gauge, Includes: Ref. 1 - 37

2шт.

1

G104731

HOUSING

final drive, assembly

1шт.

2

G101531

GEAR

final drive, 76 teeth

1шт.

3

1348873C1

COVER

lower, final drive gear, see B17555 sealant shown below

1шт.

6

180-610

12 PT SCREW,Flg, 1/2" - 13 x 1 1/2", Gr 8

12-point flange, chemical coating, 1/2" NC x 1-1/2", grade 8, use with Loctite 242

12шт.

8

71100209

PLUG,Hex Soc, 3/4"-16 ORB

Incl Ref 9

3шт.

9

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

Part of Seal Kit P/N 138973A1

1шт.

10

G106477

SHAFT

final drive

1шт.

11

101-11325

SNAP RING,#325, 3.070, Ext

external retaining, No. 325, tapered roller bearings

1шт.

12

G107232

SPACER

final drive gear

1шт.

13

1981095C1

SEAL

face, final drive shaft, outer

1шт.

Part of Seal Kit P/N 138973A1

1шт.

14

622336C1

ROLLER BEARING,84.99mm ID x 30mm W

tapered roller, final drive shaft, outer

1шт.

15

A63171

BEARING CUP,85 mm ID x 130 mm OD x 30.2 mm

tapered roller, outer

1шт.

16

G100325

SPACER

final drive shaft

1шт.

17

L35931

BEARING CUP

tapered roller bearing, inner

1шт.

18

630203C91

TAPERED BEARING

tapered roller, final drive shaft, inner

1шт.

19

R21741

SHIM,.005" Thk

(0.127 mm)

1шт.

Part of Seal Kit P/N 138973A1

1шт.

19

R21742

SHIM,.007" Thk

(0.178 mm)

1шт.

Part of Seal Kit P/N 138973A1

1шт.

19

R21743

SHIM,.020" Thk

(0.508 mm)

1шт.

Part of Seal Kit P/N 138973A1

1шт.

20

1997099C1

PLATE

bearing retaining

1шт.

Part of Seal Kit P/N 138973A1

1шт.

21

110-14

LOCK BOLT,Locking, 9/16"-18 x 1 1/4", G8, Full Th

3шт.

Part of Seal Kit P/N 138973A1

1шт.

22

G101598

GASKET

cover

1шт.

Part of Seal Kit P/N 138973A1

1шт.

23

G105822

COVER ASSY

shaft

1шт.

24

180-609

12 PT SCREW,Flg, 1/2" - 13 x 1", Gr 8

12-point flange, chemical coating, 1/2" NC x 1", grade 8

4шт.

26

622336C1

ROLLER BEARING,84.99mm ID x 30mm W

tapered roller, input shaft, inner

1шт.

27

A63171

BEARING CUP,85 mm ID x 130 mm OD x 30.2 mm

tapered roller, inner

1шт.

28

A32015

SEAL,82.55mm ID x 114.3mm OD x 11.91mm Thk

oil, final drive housing, input shaft

1шт.

Part of Seal Kit P/N 138973A1

1шт.

29

895366C1

BEARING CUP

CUP tapered roller, outer

1шт.

30

1997114C1

TAPERED BEARING,55.001 mm ID x 39 mm

tapered roller, input shaft, outer

1шт.

31

G100328

SHIM,.005" Thk

(0.127 mm)

1шт.

Part of Seal Kit P/N 138973A1

1шт.

31

G100329

SHIM,.007" Thk

(0.178 mm)

1шт.

Part of Seal Kit P/N 138973A1

1шт.

31

G100330

SHIM,.020" Thk

(0.508 mm)

1шт.

Part of Seal Kit P/N 138973A1

1шт.

B17555

LOCTITE

SEALANT bottom gear cover to housing, gasket eliminator No. 515, 50 ml tube, see Ref. 3

1шт.

32

1997100C1

PLATE

bearing retaining

1шт.

Part of Seal Kit P/N 138973A1

1шт.

33

107-9820

LOCK BOLT,Locking, 1/2"-13 x 1 1/4", G8, Full Thd

hex, chemical locking, 1/2" NC x 1-1/4", grade 8

3шт.

Part of Seal Kit P/N 138973A1

1шт.

34

G105822

COVER ASSY

shaft, input

1шт.

35

G101598

GASKET

cover

1шт.

Part of Seal Kit P/N 138973A1

1шт.

36

180-609

12 PT SCREW,Flg, 1/2" - 13 x 1", Gr 8

12-point flange, chemical coating, 1/2" NC x 1", grade 8

4шт.

37

A50199

SHIM,.003" Thk

(0.076 mm)

1шт.

Part of Transmission Seal Kit P/N 138971A1

1шт.

Part of Seal Kit P/N 138973A1

1шт.

37

A50198

SHIM,.005" Thk

(0.127 mm)

1шт.

Part of Transmission Seal Kit P/N 138971A1

1шт.

Part of Seal Kit P/N 138973A1

1шт.

37

1997091C1

SHIM

0.508 mm (0.02") thick

1шт.

38

308713A1

STUD

1/2" NC x 2-5/16", Replaces: G100303

24шт.

39

232-4118

NUT,1/2"-13, GC

24шт.

40

1348973C1

GEAR, BEVEL

BEVEL GEAR SHAFT pinion, matched set, see Figure 6-08, Ref. 9

1шт.

138971A1

SEAL KIT

KIT transmission

1шт.

Includes: Ref. 6 in Figure 6-06, Ref. 3's, 4, 24 and 26 in Figure 6-08, Ref. 6, 9, 12, 14, 16A's and 23 in Figure 6-10, Ref. 2, 5's, 8, 9, 11 - 14, 24, 32 - 35 and 44 in this figure, Ref. 1, 2, 14 - 17, and 29's in Figure 6-14, Ref. 37 (P/N A50199 and A50198) in Figure 6-16, Ref. 37 (P/N A50199 and A50198) in Figure 6-18, and Ref. 15 in Figure 6-20, plus an additional gasket not used in this application

1шт.

138973A1

SEAL KIT

KIT shim, final drive, transmission, Includes: Ref. 9, 13, 19's - 22, 28, 31's - 33, 35 and 37 (P/N A50199 and A50198)

1шт.
