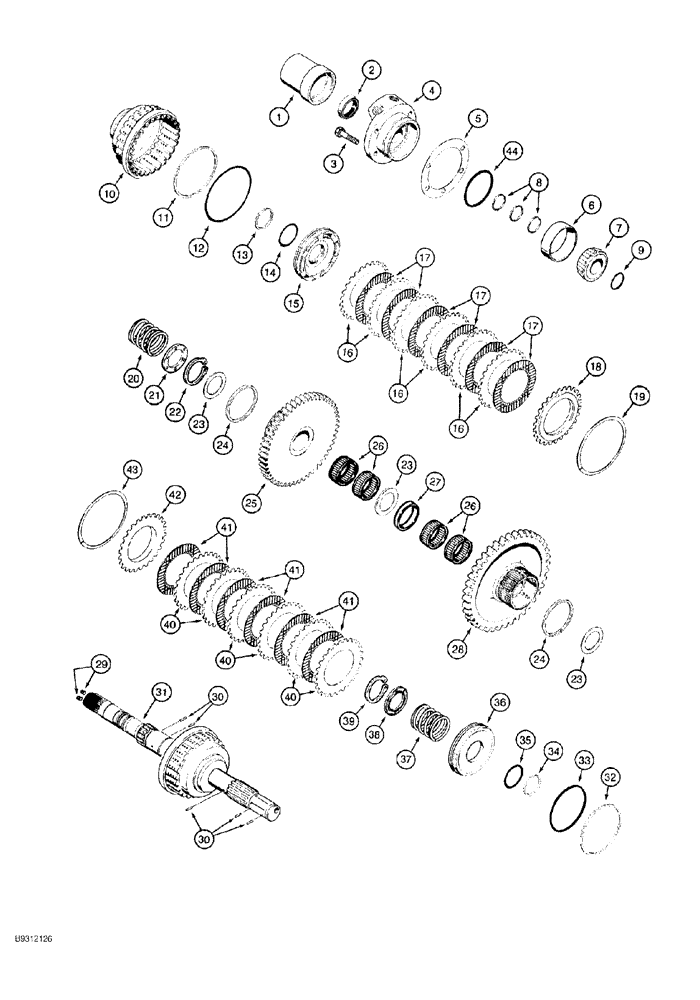

Запчасти Case 550G (6-12) - TRANSMISSION ASSEMBLY, MAIN SHAFT AND FORWARD-REVERSE CLUTCHES (03) - TRANSMISSION

REF

INSTRUCTION

TRANSMISSION ASSY., see Figure 6-08 for correct assembly, Includes: Ref. 1 - 44

1шт.

1

G101696

PROTECTIVE COVER

mainshaft, rear

1шт.

2

A54107

OIL SEAL,38.1mm ID x 8mm Thk

oil, mainshaft cover

1шт.

Part of Transmission Seal Kit P/N 138971A1

1шт.

3

107-9620

LOCK BOLT,Locking, 3/8"-16 x 1 1/4", G8

5шт.

4

1997065C1

SEAL RETAINER

bearing, mainshaft

1шт.

5

1997066C1

SHIM

0.076 mm (.003") thick

1шт.

Part of Transmission Seal Kit P/N 138971A1

1шт.

5

1997067C1

SHIM

0.178 mm (.007") thick

1шт.

Part of Transmission Seal Kit P/N 138971A1

1шт.

5

1997068C1

SHIM

0.254 mm (.01") thick

1шт.

Part of Transmission Seal Kit P/N 138971A1

1шт.

6

G109317

BEARING CUP

tapered roller bearing, rear

1шт.

7

1342259C1

ROLLER BEARING,38.113 mm ID x 30.467 mm

tapered roller, mainshaft, rear

1шт.

8

1348976C1

SEAL

RING mainshaft

3шт.

Part of Transmission Seal Kit P/N 138971A1

1шт.

9

238-5324

O-RING,0.21" Thk x 1.35" ID, -324, Cl 5, 75 Duro

1шт.

Part of Transmission Seal Kit P/N 138971A1

1шт.

1997048C2

CLUTCH HOUSING

ASSY. forward, with hub, Includes: Ref. 10 - 19

1шт.

10

1997003C2

HUB

HOUSING clutch

1шт.

11

A158051

SEAL,116.49mm ID x 123.91mm OD x 3.07mm Thk

piston, to clutch housing

1шт.

Part of Transmission Seal Kit P/N 138971A1

1шт.

12

238-5156

O-RING,0.103" Thk x 4.237" ID, -156, Cl 5, 75 Duro

Piston

1шт.

Part of Transmission Seal Kit P/N 138971A1

1шт.

13

A159295

SEAL,44.2mm ID x 50.7mm OD x 3.1mm Thk

, Serial Range: piston,-mainshaft

1шт.

Part of Transmission Seal Kit P/N 138971A1

1шт.

14

238-5135

O-RING,0.103" Thk x 1.925" ID, -135, Cl 5, 75 Duro

to mainshaft, 2-1/16" ID x 3/32" wide

1шт.

Part of Transmission Seal Kit P/N 138971A1

1шт.

15

A159239

PISTON

forward clutch

1шт.

16

A175806

PLATE

clutch, separator

6шт.

17

A188946

DRIVE PLATE,81.9mm ID x 127mm OD x 2.6mm Thk

clutch, friction

6шт.

18

137720A1

PLATE

clutch

1шт.

19

139987A1

SNAP RING,126.34mm ID x 142.4mm OD x 2.82mm Thk

RING retaining, internal, clutch backing plate

1шт.

20

A188080

SPRING

return

1шт.

21

A188044

RETAINER

spring

1шт.

22

100-16175

SNAP RING,#175, Ext

Clutch

1шт.

23

A188192

WASHER, THRUST,45.05mm ID x 64.94mm OD x 2.05mm Thk

forward and reverse gears

3шт.

24

1995174C1

SEALING RING

SEALRING 87 x 90 x 3 mm

2шт.

Part of Transmission Seal Kit P/N 138971A1

1шт.

25

1997062C1

GEAR

forward clutch, 51 teeth

1шт.

26

A178460

NEEDLE BEARING,44.99mm ID x 50.02mm OD x 16.8mm W

needle

4шт.

27

A183452

THRUST BEARING,45.05mm ID x 66.85mm OD x 3.85mm W

thrust, between gears

1шт.

28

1997061C1

GEAR

reverse clutch, 56 teeth, Replaces: 1997103C1

1шт.

1997045C2

SHAFT

ASSY. main, with reverse clutch, Includes: Ref. 29 - 43

1шт.

29

83-3446

SET SCREW,Hex Soc, 7/16"-14 x 3/8"

set, hex socket headless, flat point, 7/16" NC x 3/8"

2шт.

30

38-3605

PIN,3/32" x 5/16", Coiled

5шт.

31

1997001C2

HUB

SHAFT ASSY. main, with reverse clutch housing

1шт.

32

A158051

SEAL,116.49mm ID x 123.91mm OD x 3.07mm Thk

piston, to clutch housing

1шт.

Part of Transmission Seal Kit P/N 138971A1

1шт.

33

238-5156

O-RING,0.103" Thk x 4.237" ID, -156, Cl 5, 75 Duro

Piston

1шт.

Part of Transmission Seal Kit P/N 138971A1

1шт.

34

A159297

SEAL,47.2mm ID x 54.1mm OD x 3.1mm Thk

SEALRING, Serial Range: piston,-mainshaft

1шт.

Part of Transmission Seal Kit P/N 138971A1

1шт.

35

238-5137

O-RING,0.103" Thk x 2.05" ID, -137, Cl 5, 75 Duro

Piston

1шт.

Part of Transmission Seal Kit P/N 138971A1

1шт.

36

A159292

PISTON

clutch

1шт.

37

A188080

SPRING

return

1шт.

38

A188044

RETAINER

spring

1шт.

39

100-16175

SNAP RING,#175, Ext

1шт.

40

A175806

PLATE

clutch, separator

6шт.

41

A188946

DRIVE PLATE,81.9mm ID x 127mm OD x 2.6mm Thk

clutch, friction

6шт.

42

137720A1

PLATE

clutch

1шт.

43

139987A1

SNAP RING,126.34mm ID x 142.4mm OD x 2.82mm Thk

RING retaining, internal

1шт.

44

238-5154

O-RING,0.103" Thk x 3.737" ID, -154, Cl 5, 75 Duro

1шт.

Part of Transmission Seal Kit P/N 138971A1

1шт.

138971A1

SEAL KIT

KIT transmission

1шт.

Includes: Ref. 6 in Figure 6-06, Ref. 3's, 4, 24 and 26 in Figure 6-08, Ref. 6, 9, 12, 14, 16A's and 23 in Figure 6-10, Ref. 2, 5's, 8, 9, 11 - 14, 24, 32 - 35 and 44 in this figure, Ref. 1, 2, 14 - 17, and 29's in Figure 6-14, Ref. 37 (P/N A50199 and A50198) in Figure 6-16, Ref. 37 (P/N A50199 and A50198) in Figure 6-18, and Ref. 15 in Figure 6-20, plus an additional gasket not used in this application

1шт.
