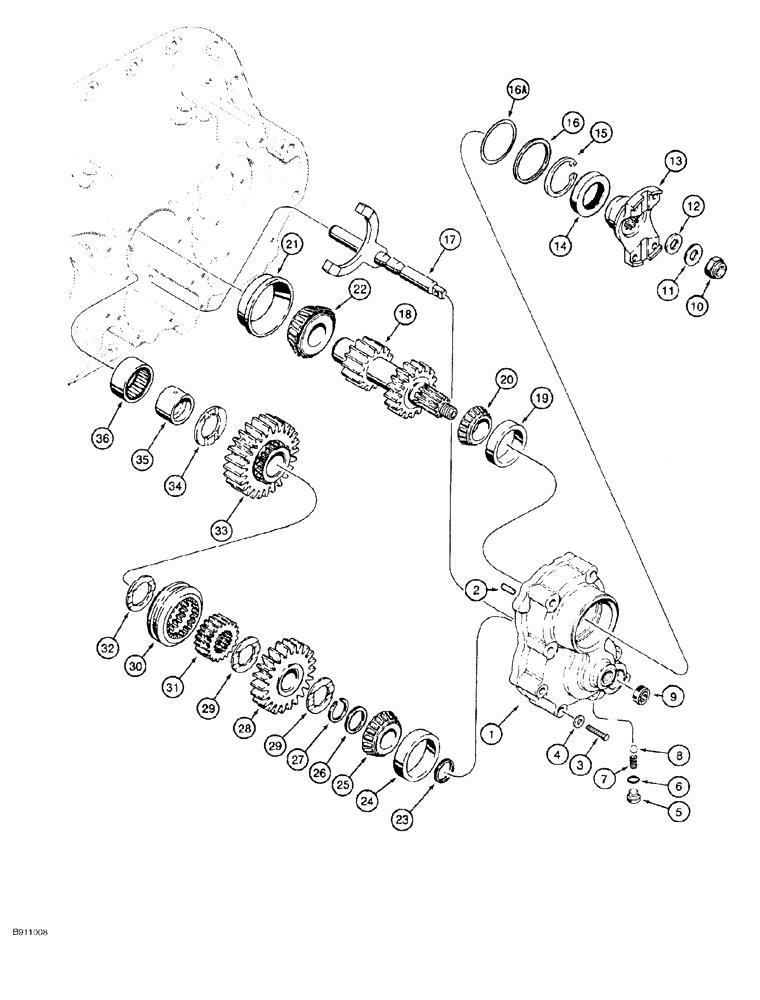

Запчасти Case 550G (6-10) - TRANSMISSION ASSEMBLY, RANGE SHIFT (03) - TRANSMISSION

REF

INSTRUCTION

TRANSMISSION ASSY., see Figure 6-08 for correct assembly, Includes: Ref. 1 - 36

1шт.

1

1348962C2

HOUSING ASSY.

range gear, see B17555 and B17556 sealant shown below

1шт.

2

37-1820

DOWEL,1/2" x 1 1/4"

PIN hardened, range gear housing, 1/2" x 1-1/4"

2шт.

3

107-9648

LOCK BOLT,Locking, 3/8"-16 x 3", G8

9шт.

4

396-21041

WASHER,10.31mm ID x 20.63mm OD x 2.26mm Thk

flat, hardened, 13/32" x 13/16" x 3/32"

9шт.

5

76349

PLUG,9/16" - 18 ORB

Incl. Ref. 6

1шт.

7

A50092

SPRING

detent

1шт.

8

211-1016

BALL,12.7mm OD, Gr 24

Chrome alloy steel, grade 24

1шт.

9

G105118

OIL SEAL

oil, selector shaft, at range gear housing

1шт.

Part of Transmission Seal Kit P/N 138971A1

1шт.

10

131-37

LOCK NUT,3/4"-16

Thin, hex, input shaft

1шт.

11

896-16018

WASHER,19.8mm ID x 41.5mm OD x 5mm Thk

flat, hardened, yoke retaining, 20 x 41 x 5 mm

1шт.

12

34395

SEALING WASHER

WASHER seal, special, cork, input shaft

1шт.

Part of Transmission Seal Kit P/N 138971A1

1шт.

13

G110044

STIRRUP

YOKE input shaft

1шт.

14

A39110

OIL SEAL,54mm ID x 76.33mm OD x 9.09mm Thk

oil, yoke

1шт.

Part of Transmission Seal Kit P/N 138971A1

1шт.

15

100-21300

SNAP RING,3.00", Int, #300

Housing

1шт.

16

1997006C2

SHIM

SPACER, 3.175 mm thick

1шт.

16a

1997004C1

SHIM

0.076 mm thick

1шт.

Part of Transmission Seal Kit P/N 138971A1

1шт.

16a

1997005C1

SHIM

0.178 mm thick

1шт.

Part of Transmission Seal Kit P/N 138971A1

1шт.

17

G107672

SHAFT

range selector, with welded fork

1шт.

18

G107129

SHAFT

input, with gears

1шт.

19

165964R1

BEARING CUP

tapered roller, front, input shaft

1шт.

20

560953R91

BEARING ASSY,1.375" ID x 2.875" OD x 0.9688"

tapered roller, front, input shaft

1шт.

21

G106463

BEARING, CUP,89.59mm OD x 23.81mm W

CUP tapered roller, rear, with flange

1шт.

22

ST791

TAPERED BEARING,1.6255" ID x 3.376" OD x 1.202"

tapered roller, rear, input shaft

1шт.

23

1981335C1

SEAL

RING mainshaft, front

1шт.

Part of Transmission Seal Kit P/N 138971A1

1шт.

24

128242R1

BEARING CUP,76.225 mm OD x 23.863 mm

CUP tapered roller, front, main shaft

1шт.

25

G106461

ROLLER BEARING,33.34mm ID x 28.78mm W

tapered roller, front, main shaft

1шт.

26

1997008C1

SPACER

special

1шт.

27

100-16131

SNAP RING,#131, Ext

Front bearing

1шт.

28

G107093

GEAR

range, front, main shaft

1шт.

29

G107116

WASHER,33.48mm ID x 55.63mm OD x 3.17mm Thk

thrust, range gear

2шт.

30

A51806

COLLAR

range selector

1шт.

31

G107110

HUB

COLLAR range selector

1шт.

32

G107117

WASHER

thrust, between range selector collar and rear range gear

1шт.

33

G107094

GEAR WHEEL

range, rear, main shaft

1шт.

34

G106465

WASHER

thrust, range gear, rear, main shaft

1шт.

35

G106696

BEARING,41.26mm ID x 50.77mm OD x 32mm W

RACE needle

1шт.

36

H748111

NEEDLE BEARING,Needle, 50.8mm ID x 65.17mm OD x 25.4mm W

needle, main shaft at front housing cover

1шт.

B17555

LOCTITE

SEALANT gasket eliminator No. 515, 50 ml tube, see Ref. 1

1шт.

B17556

LOCTITE

SEALANT gasket eliminator No. 515, 300 ml tube, see Ref. 1

1шт.

138971A1

SEAL KIT

KIT transmission

1шт.

Includes: Ref. 6 in Figure 6-06, Ref. 3's, 4, 24 and 26 in Figure 6-08, Ref. 6, 9, 12, 14, 16A's and 23 in Figure 6-10, Ref. 2, 5's, 8, 9, 11 - 14, 24, 32 - 35 and 44 in this figure, Ref. 1, 2, 14 - 17, and 29's in Figure 6-14, Ref. 37 (P/N A50199 and A50198) in Figure 6-16, Ref. 37 (P/N A50199 and A50198) in Figure 6-18, and Ref. 15 in Figure 6-20, plus an additional gasket not used in this application

1шт.

6

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

Part of Transmission Seal Kit P/N 138971A1

1шт.
