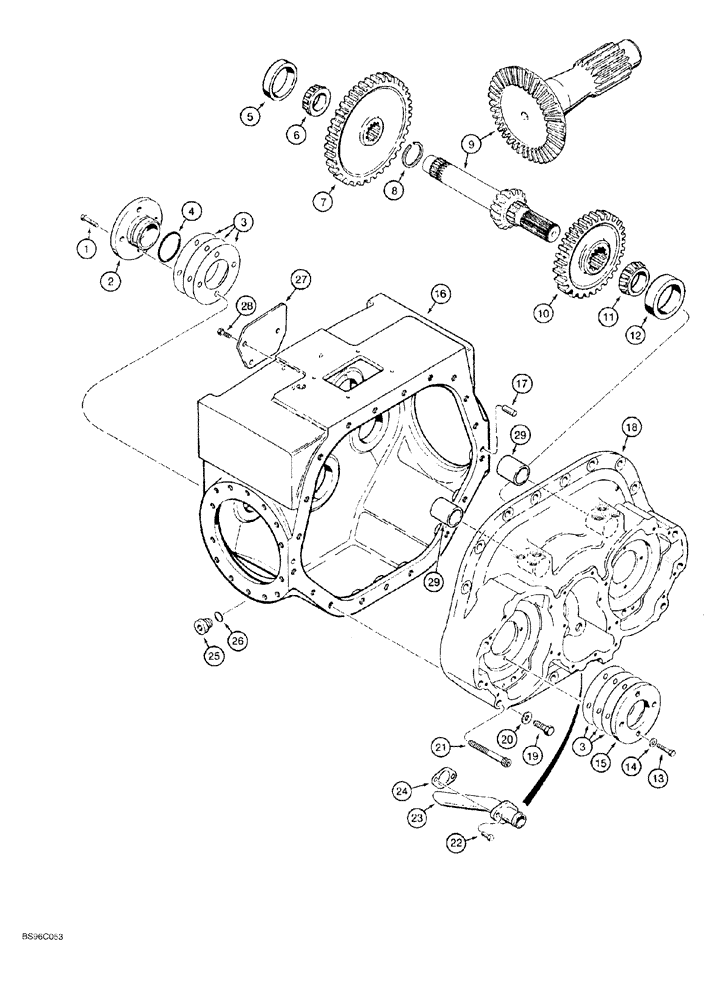

Запчасти Case 550G (6-08) - TRANSMISSION ASSEMBLY, HOUSING, BEVEL PINION SHAFT AND GEAR (03) - TRANSMISSION

130727A1

TRANSMISSION

ASSY., 1346 mm (53") gauge models, see Figures 6-08 - 6-24 and 7-06 for complete transmission, Includes: Ref. 1 - 29

1шт.

130728A1

TRANSMISSION

ASSY., 1627 mm (64") gauge models, see Figures 6-08 - 6-24 and 7-06 for complete transmission, Includes: Ref. 1 - 29

1шт.

1

107-9620

LOCK BOLT,Locking, 3/8"-16 x 1 1/4", G8

8шт.

2

G103644

COVER ASSY

shaft, bevel pinion

2шт.

3

G103645

SHIM,.003" Thk

(0.076 mm)

1шт.

Part of Transmission Seal Kit P/N 138971A1

1шт.

3

G103647

SHIM,.010" Thk

(0.254 mm)

1шт.

Part of Transmission Seal Kit P/N 138971A1

1шт.

3

1348980C1

BLOCK

SHIM, 0.504 mm (0.02") thick

1шт.

Part of Transmission Seal Kit P/N 138971A1

1шт.

4

238-5151

O-RING,0.103" Thk x 2.987" ID, -151, Cl 5, 75 Duro

2шт.

Part of Transmission Seal Kit P/N 138971A1

1шт.

5

A50264

BEARING CUP,72mm OD x 14.2mm W

CUP tapered roller, rear

2шт.

6

A26719

ROLLER BEARING,38.1mm ID x 20.64mm W

BEARING tapered roller, rear

2шт.

7

G103778

GEAR

driven, low clutch, rear, 51 teeth

2шт.

8

A27085

RING

retaining, low clutch gear

2шт.

9

1348973C1

GEAR, BEVEL

BEVEL GEAR SHAFT pinion, matched set

2шт.

10

1981357C1

PINION

GEAR driven, high clutch, front, 43 teeth

2шт.

11

A31264

ROLLER BEARING,1.625" ID x 1"

BEARING tapered roller, high clutch gear, front

2шт.

12

ST973

TAPERED BEARING,1.688" ID x 3.126" OD x 0.9515"

CUP tapered roller bearing, front

2шт.

13

107-9620

LOCK BOLT,Locking, 3/8"-16 x 1 1/4", G8

8шт.

14

396-21041

WASHER,10.31mm ID x 20.63mm OD x 2.26mm Thk

flat, hardened, 13/32" x 13/16" x 3/32"

8шт.

15

1348975C1

RETAINER

PLATE, LARGE RETAINER bearing, front

2шт.

16

1997054C1

HOUSING

transmission, see B17555 and B17556 sealant shown below

1шт.

17

37-1820

DOWEL,1/2" x 1 1/4"

PIN hardened, front cover to housing, 1/2" x 1-1/4"

2шт.

18

1348959C2

COVER

transmission, front, see B17555 and B17556 sealant shown below

1шт.

Ref. 29 wear sleeve is for repairs of Ref. 18 transmission cover in the event the seal bore for the hi/lo track shaft becomes damaged. Refer to Service Bulletin NCR SB 017 94 for installation instructions.

1шт.

19

107-91028

LOCK BOLT,Locking, 5/8"-11 x 1 3/4", G8

13шт.

20

396-11066

WASHER,0.66" ID x 1.31" OD x 0.1" Thk

flat, hardened, 21/32" x 1-5/16" x 3/32"

13шт.

21

61-35064

HEX SOC SCREW,1/2"-13 x 4"

hex socket, 1/2" NC x 4"

6шт.

22

107-9616

LOCK BOLT,Locking, 3/8"-16 x 1", G8, Full Thd

2шт.

23

A50110

TUBE

suction

1шт.

24

1981223C1

GASKET

suction tube

1шт.

Part of Transmission Seal Kit P/N 138971A1

1шт.

25

9841223

PLUG,1-1/16" - 12 ORB

Incl. Ref. 26

1шт.

26

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

Part of Transmission Seal Kit P/N 138971A1

1шт.

27

1997121C1

LARGE PLATE

PLATE, LARGE modulator cover, if used

1шт.

28

107-9616

LOCK BOLT,Locking, 3/8"-16 x 1", G8, Full Thd

If used

3шт.

29

1348982C1

WEAR PLATE

SLEEVE shaft

2шт.

Ref. 29 wear sleeve is for repairs of Ref. 18 transmission cover in the event the seal bore for the hi/lo track shaft becomes damaged. Refer to Service Bulletin NCR SB 017 94 for installation instructions.

1шт.

B17555

LOCTITE

SEALANT gasket eliminator No. 515, 50 ml tube, see Ref. 16 and 18

1шт.

B17556

LOCTITE

SEALANT gasket eliminator No. 515, 300 ml tube, see Ref. 16 and 18

1шт.

138971A1

SEAL KIT

KIT transmission

1шт.

Includes: Ref. 6 in Figure 6-06, Ref. 3's, 4, 24 and 26 in Figure 6-08, Ref. 6, 9, 12, 14, 16A's and 23 in Figure 6-10, Ref. 2, 5's, 8, 9, 11 - 14, 24, 32 - 35 and 44 in this figure, Ref. 1, 2, 14 - 17, and 29's in Figure 6-14, Ref. 37 (P/N A50199 and A50198) in Figure 6-16, Ref. 37 (P/N A50199 and A50198) in Figure 6-18, and Ref. 15 in Figure 6-20, plus an additional gasket not used in this application

1шт.
