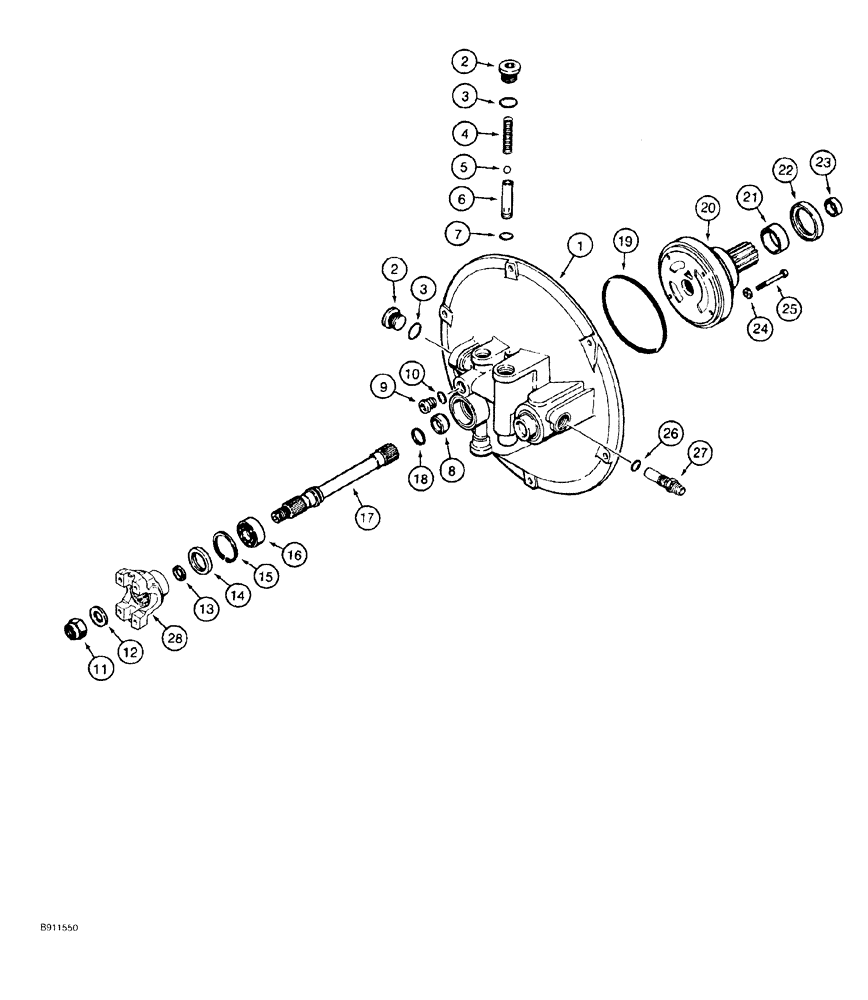

Запчасти Case 550G (6-04) - TORQUE CONVERTER HOUSING, PUMP AND OUTPUT SHAFT (03) - TRANSMISSION
№
Артикул
Название
Примечание
Количество
1348881C2
CONVERTER
HOUSING ASSY. torque, Includes: Ref. 1 - 28
1шт.
119994A1R
REMAN-HYD PUMP
550G (2/95-), Reman Pump Section for New PN 1348881C2
1шт.
119994A1C
CORE-HYDRAULIC PUMP
Return Number
1шт.
1
1348828C1
HOUSING
torque converter
1шт.
2
9841223
PLUG,1-1/16" - 12 ORB
Incl. Ref. 3
2шт.
3
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
1шт.
4
A190345
SPRING
pump relief valve
1шт.
5
211-1016
BALL,12.7mm OD, Gr 24
Chrome alloy steel, grade 24
1шт.
6
A183336
VALVE
CARTRIDGE pump relief
1шт.
7
238-5017
O-RING,0.07" Thk x 0.676" ID, -17, Cl 5, 75 Duro
1шт.
8
A178745
SLEEVE
wear, housing
1шт.
10
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
1шт.
11
832-46420
NUT,M20 x 2.5, Cl 8
1шт.
13
238-5212
O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro
1шт.
14
A175651
OIL SEAL,38.1mm ID x 52.44mm OD x 9.91mm Thk
oil, yoke
1шт.
15
100-21206
SNAP RING,2.062", Int, #206
1шт.
16
A31260
BALL BEARING,25 mm ID x 52 mm OD x 15 mm
ball
1шт.
17
A186527
SHAFT
output
1шт.
18
A158354
RING
oil seal
1шт.
19
238-5255
O-RING,0.139" Thk x 5.609" ID, -255, Cl 5, 75 Duro
1шт.
119994A1R
REMAN-HYD PUMP
550G (2/95-)
1шт.
119994A1C
CORE-HYDRAULIC PUMP
Return Number
1шт.
21
A178375
BUSHING,47.66mm ID x 52.46mm OD x 15mm L
pump housing
1шт.
22
A186708
OIL SEAL,47.57mm ID x 68.25mm OD x 8.33mm Thk
pump housing
1шт.
23
A178367
BUSHING,25.07mm ID x 28.02mm OD x 13mm L
pump
1шт.
25
826-8065
BOLT,Hex, M8 x 1.25 x 65mm, Cl 10.9
4шт.
26
238-6019
O-RING,0.07" Thk x 0.801" ID, -19, Cl 6, 90 Duro
1шт.
27
1348840C2
INSERT
filter bypass
1шт.
28
A159663
YOKE
UNIVERSAL JOINT YOKE output shaft, converter
1шт.
24
895-11008
WASHER,9mm ID x 16mm OD x 1.6mm Thk
4шт.
Выбрано товаров: 33
