Запчасти Case 550G (6-02) - TORQUE CONVERTER, ADAPTER PLATE AND DRIVE SHAFT (03) - TRANSMISSION

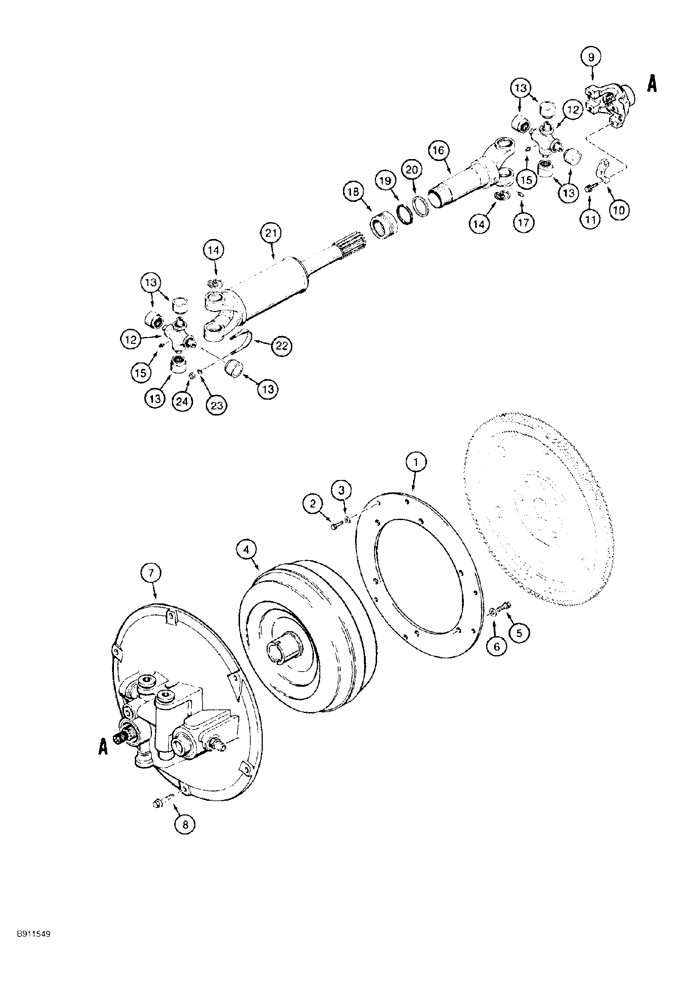

Схема запчастей Case 550G - (6-02) - TORQUE CONVERTER, ADAPTER PLATE AND DRIVE SHAFT (03) - TRANSMISSION
13
23
4
11
6
10
9
14
18
13
1
12
13
7
12
22
2
21
20
3
14
17
15
5
13
8
24
16
13
15
19

Артикул

Название

Примечание

Количество

1

A178706

PLATE

adapter, torque converter to flywheel plate

1шт.

2

428-510

BOLT,Hex, 5/16" - 24 x 5/8", Gr 8

hex, adapter plate to flywheel plate, 5/16" NF x 5/8", grade 8

6шт.

3

A15672

WASHER,8.74mm ID x 17.48mm OD x 1.52mm Thk

flat, hardened, special

6шт.

4

1995137C1

CONVERTER

torque, component parts not serviced separately

1шт.

4

1995137C1R

REMAN-TORQUE CONVERT

ER Reman - Torque Converter

1шт.

4

1995137C1C

CORE-TORQUE CONVERTR

Core-Torque Converter Return Part Number

1шт.

5

614-10016

BOLT,Hex, M10 x 1.5 x 16mm, Cl 8.8, Full Thd

Adapter Plate to Torque Converter

6шт.

6

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

6шт.

7

1348881C2

CONVERTER

HOUSING ASSY. torque, see Figure 6-04

1шт.

7

119994A1R

REMAN-HYD PUMP

550G (2/95-), Reman Pump Section for New PN 1348881C2

1шт.

7

119994A1C

CORE-HYDRAULIC PUMP

Return Part Number

1шт.

8

R54620

BOLT,Hex, Flange, M10 x 35mm CL 10.9

heavy hex flange, special, torque converter housing to flywheel housing

6шт.

9

A159663

YOKE

UNIVERSAL JOINT YOKE output shaft, torque converter housing to drive shaft

1шт.

10

D124146

CLAMP

STRAP bearing

2шт.

11

D124151

BOLT

special

4шт.

109490A1

STEERING SHAFT

ASSY. drive, torque converter to transmission, Includes: Ref. 12 - 14

1шт.

235981A1

KIT

universal joint, Replaces: D70627

2шт.

12

NSS

NOT SOLD SEPARAT

JOINT universal, drive shaft

1шт.

13

NSS

NOT SOLD SEPARAT

BEARING universal joint

4шт.

14

11256

SNAP RING

retaining, bearing

4шт.

15

219-10

LUBE NIPPLE,1/4" - 28 NPTF

FITTING grease, straight, 1/4"-28 taper x 11/16", included in 109490A1 shaft assembly shown above, but not used on the 550G

1шт.

16

S301035

YOKE

yoke, torque converter end, Includes: Ref. 17

1шт.

17

219-10

LUBE NIPPLE,1/4" - 28 NPTF

FITTING grease, straight, 1/4"-28 taper x 11/16"

1шт.

18

H223875

CYLINDER END CAP

dust

1шт.

19

134381A1

RUBBER WASHER

rubber

1шт.

20

H223891

WASHER

special, steel

1шт.

21

S301042

SHAFT

YOKE splined, transmission end

1шт.

H183566

BOLT

ASSY., U special, includes hardware, Includes: Ref. 22 - 24

2шт.

22

NSS

NOT SOLD SEPARAT

U-BOLT special

1шт.

23

492-11031

LOCK WASHER,5/16"

2шт.

24

425-115

NUT,5/16"-24, G5

2шт.

Выбрано товаров: 31
