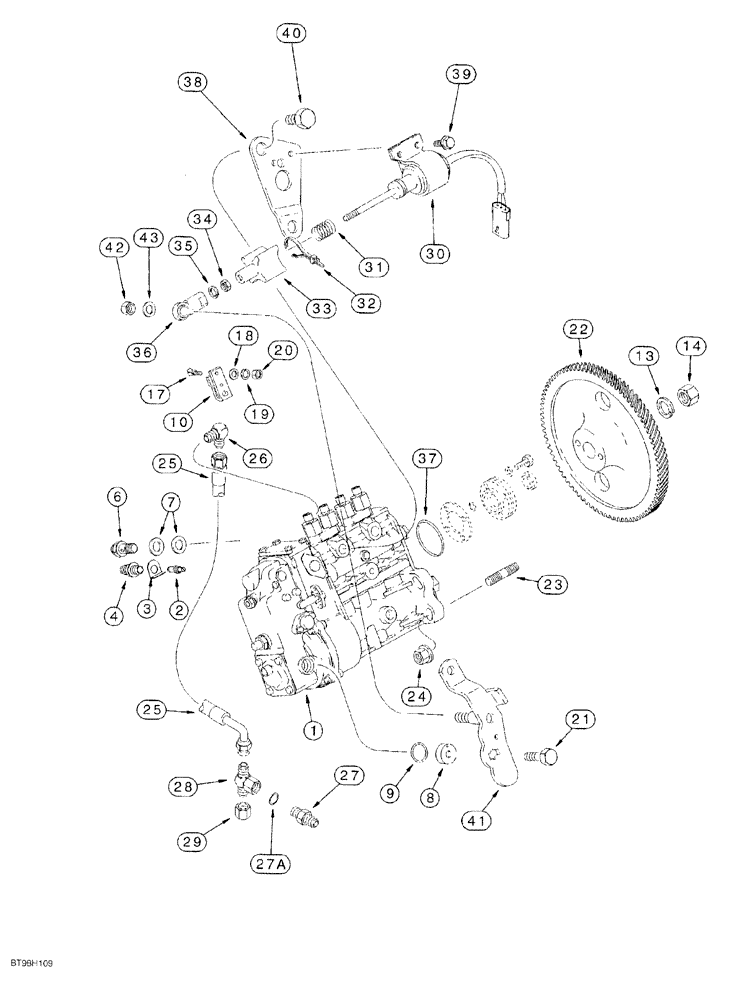

Запчасти Case 550G (3-13A) - FUEL INJECTION PUMP AND DRIVE, 4-390 & 4T-390 EMISSIONS CERTIFIED ENGINE, P.I.N. JJG0255794 & AFTER (02) - FUEL SYSTEM

1

J930147

PUMP, FUEL INJECTION

PUMP, INJECTION ASSY., without aneroid, used on 4T-390 engine, Includes: Ref. 2 - 21

1шт.

1

JR930147

REMAN-INJECTION PUMP

ASSY. fuel, component parts shown in this figure do not apply to the remanufactured assembly, 4T-390 engine, for service order J930147, Includes: Ref. 2 - 21

1шт.

1

JC930147

CORE-INJECTION PUMP

Return Number

1шт.

1

J930143

PUMP, FUEL INJECTION

PUMP, INJECTION ASSY., without aneroid, used on 4-390 engine, Includes: Ref. 2 - 21

1шт.

1

JR930143

REMAN-INJECTION PUMP

ASSY. fuel, component parts shown in this figure do not apply to the remanufactured assembly, 4-390 engine, for service order J930143, Includes: Ref. 2 - 21

1шт.

1

JC930143

CORE-INJECTION PUMP

RETURN NUMBER, use this part number to return pump core for credit when using a remanufactured assembly, Includes: Ref. 2 - 21

1шт.

2

A77720

PIN

timing

1шт.

3

J928981

LOCK WASHER

timing plug

1шт.

4

J912888

PLUG

timing

1шт.

6

J932096

VALVE

overflow

1шт.

7

933697R1

SEALING RING,M10 x 13.5 x 1

WASHER valve sealing

2шт.

8

691292C1

RETAINER

HOUSING spring return

1шт.

9

680187C1

O-RING,2.5mm Thk x 9mm ID

O-RING sealing, special

1шт.

10

1808728C1

LEVER

throttle control

1шт.

13

A77775

LOCK WASHER

lock

1шт.

14

A41852

LOCK NUT

hex, self-locking

1шт.

17

1808822C1

THUMB SCREW,M6 x 26mm

throttle lever

1шт.

18

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

19

892-11006

LOCK WASHER,M6

1шт.

20

829-1306

NUT,M6, Cl 10

1шт.

21

628-6016

BOLT,Hex, M6 x 16mm, Cl 10.9, Full Thd

1шт.

22

J931450

PINION

GEAR fuel pump

1шт.

23

J915036

STUD

pump mounting

4шт.

24

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

4шт.

25

J918536

FLEXIBLE HOSE,295.00 mm

Flexible

1шт.

26

A77512

ELBOW

90 degree

1шт.

27

J941472

FITTING

NIPPLE hex, 7/16"-20 flare x 10 - 1.0 mm str. thread, Includes: Ref. 27A

1шт.

27a

637-72081

O-RING,1.6mm Thk x 8.1mm ID, Cl 7, 75 Duro

1шт.

28

J933291

TEE

7/16"-20 flare x flare x female swivel

1шт.

29

218-752

CAP,37 Degree, 7/16"-20

hex, 7/16"-20

1шт.

30

J932529

SOLENOID

fuel shutoff, 12 volt, Includes: Ref. 31 - 36

1шт.

31

311100A1

SPRING

return, plunger

1шт.

32

473321C1

CABLE TIE,8" OAL x 0.098" W

CABLE STRAP

1шт.

33

J925171

BOOT

protective, plunger

1шт.

34

425-154

JAM NUT,Jam, 1/4"-28, G5

1шт.

35

492-11025

LOCK WASHER,1/4"

1шт.

36

311099A1

JOINT

ball

1шт.

37

J930993

O-RING

sealing

1шт.

38

J930590

SUPPORT

solenoid mounting

1шт.

39

845-6012

BOLT,Hvy Hex, M6 x 12mm, Cl 8.8

heavy hex flange, 6 - 1.0 x 12 mm

2шт.

40

J929456

SCREW,Hex, M16 x 1.5 x 12mm, Gr 8.8

hex, 16 - 2.0 x 12 mm

2шт.

J802998

PACKAGE,SERVICE

KIT pump shutoff lever, Includes: Ref. 41 - 43

1шт.

41

NSS

NOT SOLD SEPARAT

LEVER pump shutoff

1шт.

42

832-41306

NUT,M6 x 1, Cl 10

1шт.

43

J934022

WASHER

flat, special

1шт.
