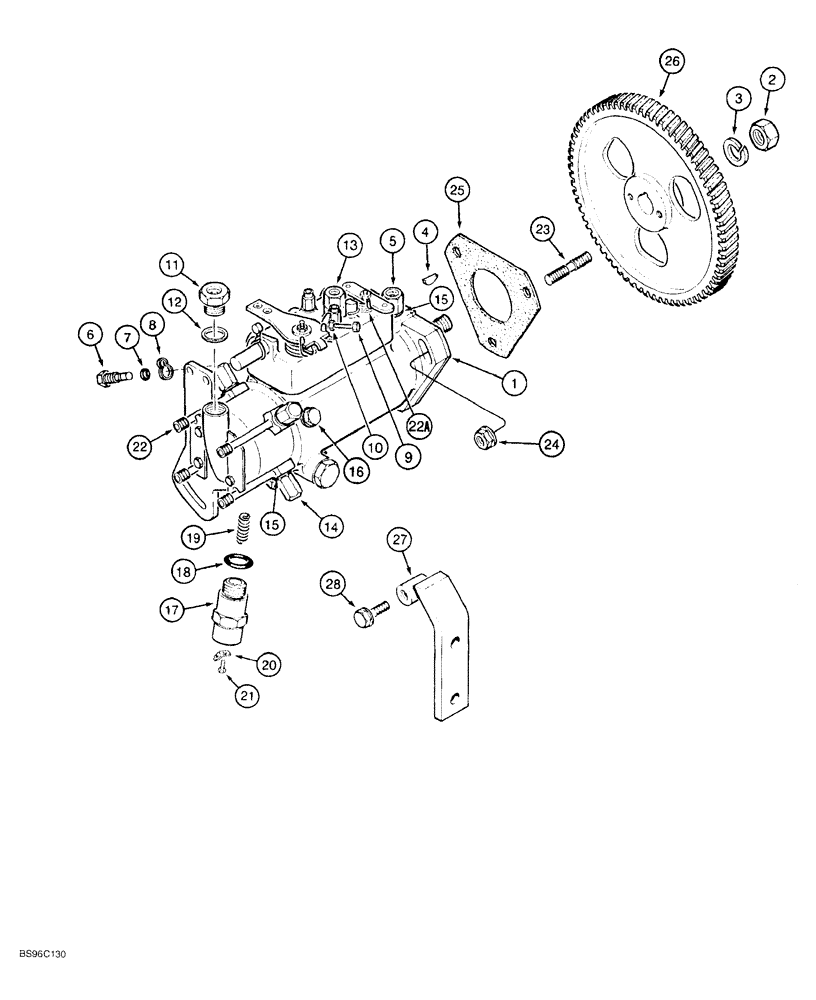

Запчасти Case 550G (3-12) - FUEL INJECTION PUMP AND DRIVE, 4-390 AND 4T-390 ENGINE, PRIOR TO P.I.N. JJG0255794 (02) - FUEL SYSTEM

1

J916523

PUMP, FUEL INJECTION

PUMP, INJECTION ASSY. new, used on 4-390 engine, no longer available, for service order JR916523 shown above

1шт.

1

JR916523

REMAN-INJECTION PUMP

ASSY. fuel, component parts shown in this figure do not apply to the remanufactured assembly, used on 4-390 engine

1шт.

1

JC916523

CORE-INJECTION PUMP

Return Part Number, use this part number to return pump core for credit when using a remanufactured assembly

1шт.

1

J917063

PUMP, FUEL INJECTION

PUMP, INJECTION ASSY. new, used on 4T-390 engine, no longer available, for service order JR917063 shown above

1шт.

1

JR917063

REMAN-INJECTION PUMP

ASSY. fuel, component parts shown in this figure do not apply to the remanufactured assembly, used on 4T-390 engine

1шт.

1

JC917063

CORE-INJECTION PUMP

Return Part Number

1шт.

1

JC915883

CORE-INJECTION PUMP

Return Part Number, use this part number to return pump core for credit when using a remanufactured assembly

1шт.

2

J903738

NUT

hex, special, 14 mm - 2.0

1шт.

3

492-11056

LOCK WASHER,9/16"

1шт.

4

836-4065

WOODRUFF KEY,M4 x 6.5 x 15.72

Pump Gear

1шт.

5

J904643

FITTING

return

1шт.

6

J904778

BOLT

BOLT hex, special, locking device

1шт.

7

J904780

SEAL

locking bolt

1шт.

8

J904779

WASHER

locking, special

1шт.

9

J904637

SET SCREW

adjusting, low idle

1шт.

10

131-1144

LOCK NUT,Jam, #10 - 24

self-locking, No. 10 NF

1шт.

11

J904641

FITTING

inlet

1шт.

12

K962748

WASHER

inlet fitting, copper

1шт.

13

J904640

VENT

ORIFICE bleed

1шт.

14

J904646

BANJO BOLT

BOLT banjo

4шт.

15

J904644

WASHER

sealing

9шт.

16

K963867

SCREW

bleed, pump head

1шт.

17

J904630

SOLENOID

shut down, 12 volt

1шт.

18

J904635

O-RING

solenoid

1шт.

19

J904777

SPRING

plunger

1шт.

20

A187990

TERMINAL CONNECTOR,Tin, 0.254 - 1.520mm

Male

1шт.

21

614-5008

BOLT,Hex, M5 x 0.8 x 8mm, Cl 8.8, Full Thd

1шт.

22

K962755

ADAPTER

FITTING banjo

4шт.

22a

J904781

GUIDE

spring

1шт.

23

J902501

STUD

STUD pump mounting, 8 - 1.25 x 48 mm

3шт.

24

J900589

NUT

hex flange, special, 8 mm

3шт.

25

J914389

GASKET

pump mounting

1шт.

26

J936021

GEAR

pump drive, Replaces: J920594

1шт.

27

J905387

BRACE

fuel pump

1шт.

28

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

3шт.
