(3-10) - FUEL FILTER, 4-390 AND 4T-390 ENGINE, PRIOR TO P.I.N. JJG0255794

Запчасти Case 550G (3-10) - FUEL FILTER, 4-390 AND 4T-390 ENGINE, PRIOR TO P.I.N. JJG0255794 (02) - FUEL SYSTEM

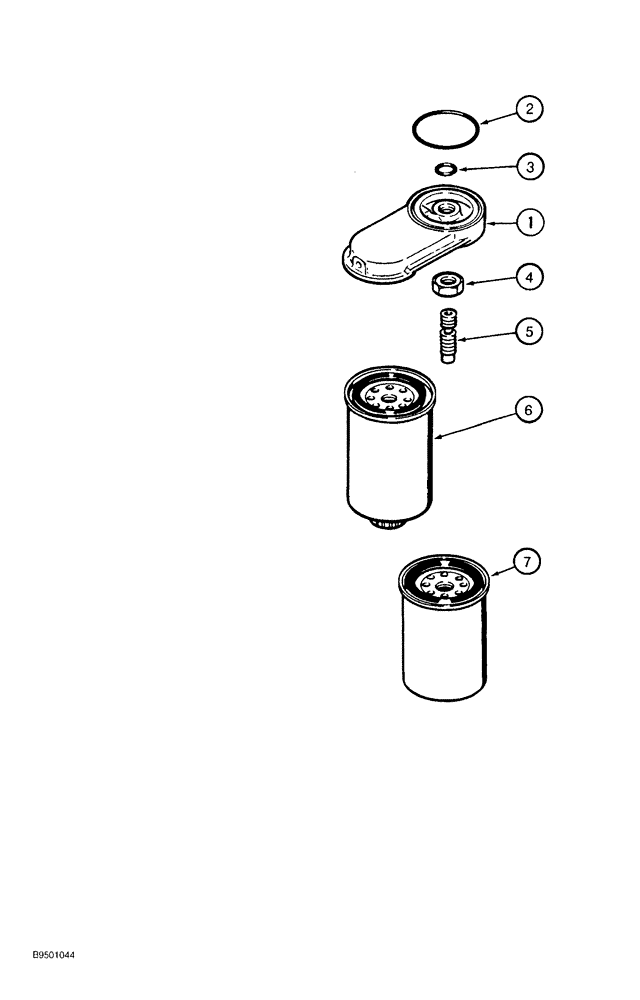

Схема запчастей Case 550G - (3-10) - FUEL FILTER, 4-390 AND 4T-390 ENGINE, PRIOR TO P.I.N. JJG0255794 (02) - FUEL SYSTEM
7
5
6
1
4
3
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

J897331

SUPPORT

HEAD fuel filter, Replaces: J915240

1шт.

2

J906694

SEALING RING,Square, 1.68mm Thk x 69.57mm ID, -39

SEALRING sealing, fuel filter head, 70 mm ID

1шт.

3

J906695

SEAL,Square, 0.103" Thk x 0.549" ID, -113

SEALRING sealing, fuel filter adapter, 14 mm ID

1шт.

4

J903293

JAM NUT

hex, special, 16 mm - 2.0

1шт.

5

J925955

ADAPTER,M16 x 1.5 x M16 x 1.5

fuel filter, Replaces: J903845

1шт.

A77470

SEPARATOR

KIT fuel, Includes: Ref. 6 and 7

1шт.

6

J925274

FILTER, FUEL

primary

1шт.

7

J903640

FILTER, FUEL

secondary

1шт.

1

J897331

SUPPORT

HEAD fuel filter

1шт.

2

J906694

SEALING RING,Square, 1.68mm Thk x 69.57mm ID, -39

SEALRING sealing, fuel filter head, 70 mm ID

1шт.

3

J906695

SEAL,Square, 0.103" Thk x 0.549" ID, -113

SEALRING sealing, fuel filter adapter, 14 mm ID

1шт.

4

J903293

JAM NUT

hex, special, 16 mm - 2.0

1шт.

5

J925955

ADAPTER,M16 x 1.5 x M16 x 1.5

fuel filter

1шт.

6

J930942

SEPARATOR

Primary

1шт.

7

J931063

FUEL FILTER

fuel, secondary

1шт.
