(3-09E) - ANEROID SYSTEM, 4T-390 EMISSIONS CERTIFIED ENGINE, P.I.N. JJG0255794 AND AFTER

Запчасти Case 550G (3-09E) - ANEROID SYSTEM, 4T-390 EMISSIONS CERTIFIED ENGINE, P.I.N. JJG0255794 AND AFTER (02) - FUEL SYSTEM

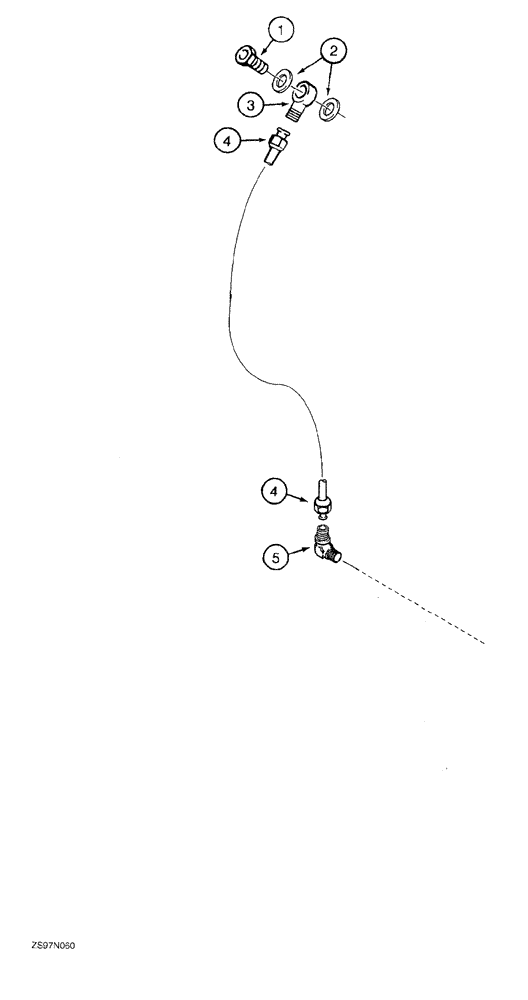

Схема запчастей Case 550G - (3-09E) - ANEROID SYSTEM, 4T-390 EMISSIONS CERTIFIED ENGINE, P.I.N. JJG0255794 AND AFTER (02) - FUEL SYSTEM
4
3
1
4
5
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

J903035

BANJO BOLT

hex, 12 - 1.5 x 24 mm

1шт.

2

J935171

SEALING WASHER

special, 12 x 19 x 1.5 mm, Replaces: J918191

2шт.

3

J919644

FITTING

CONNECTOR banjo

1шт.

4

J926739

TUBE

aneroid, nylon

1шт.

5

222-41

ELBOW,90 Degree, 7/16"-24 x 1/8 NPT

Compression, 3/16" tube O.D. x 1/8" PT

1шт.
