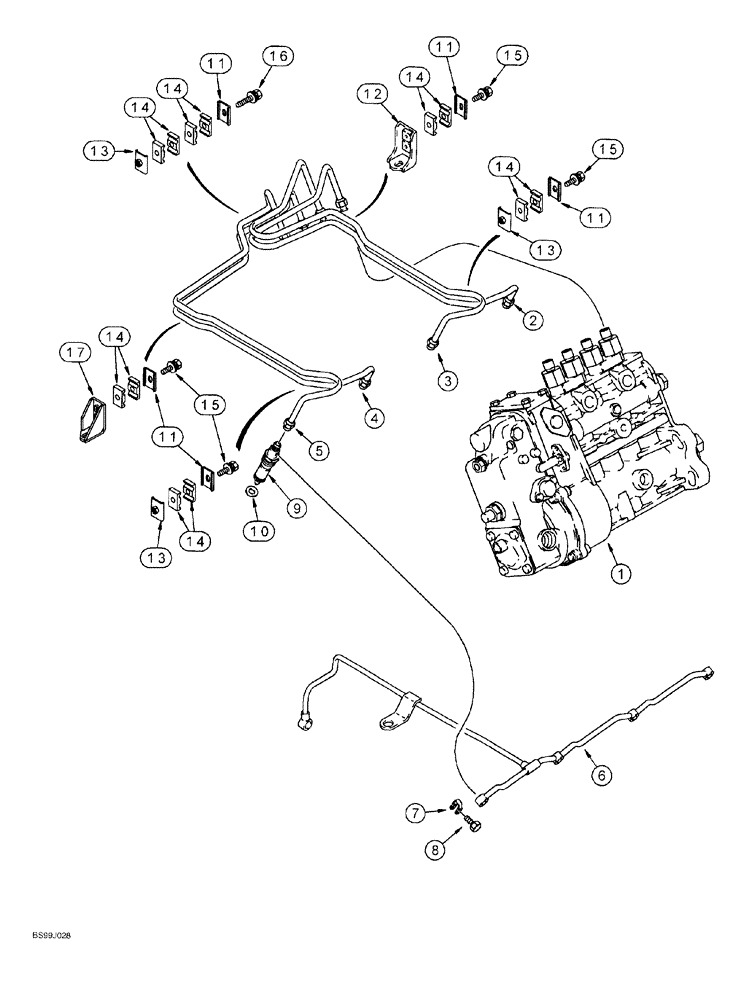

Запчасти Case 550G (3-09A) - FUEL INJECTION SYSTEM, 4-390 AND 4T-390 EMISSIONS CERTIFIED ENGINE, P.I.N. JJG0255794 AND AFTER (02) - FUEL SYSTEM

1

J930143

PUMP, FUEL INJECTION

PUMP, INJECTION ASSY., without aneroid, 4-390 engine, see Figure 3-13A

1шт.

1

J930147

PUMP, FUEL INJECTION

PUMP, INJECTION ASSY., without aneroid, 4T-390 engine, see Figure 3-13A

1шт.

2

J932157

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 750 mm L

fuel injector, No. 1 cylinder

1шт.

3

J932158

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 750 mm L

fuel injector, No. 2 cylinder

1шт.

4

J932159

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 750 mm L

fuel injector, No. 3 cylinder

1шт.

5

J932160

FUEL TUBE,750 mm L

fuel injector, No. 4 cylinder

1шт.

6

J927633

TUBE

manifold, fuel

1шт.

7

J903380

SEAL

connector

4шт.

8

J905307

BANJO BOLT,M6 x 1 x 14.30mm

Drain, Special

4шт.

9

J929490

NOZZLE INJECTION

ASSY. fuel, see Figure 3-16

4шт.

9

JR929490

REMAN-FUEL INJECTOR

Remanufactured INJECTION NOZZLE

4шт.

9

JC929490

CORE-FUEL INJECTOR

Return Number, INJECTION NOZZLE

4шт.

10

J906659

SEAL

injector nozzle, 7 mm injector tip

4шт.

11

J904711

SUPPORT

fuel tube

5шт.

12

J282942

BRACKET

fuel tube

1шт.

13

J917717

BRACE

fuel tube

3шт.

14

J917746

CLAMP

fuel tube

12шт.

15

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

4шт.

16

J920855

CAPTIVE WASHER SCREW

hex, captive washer, special, 5 - 0.8 x 35 mm

1шт.

17

J919086

BRACKET

fuel tube

1шт.
