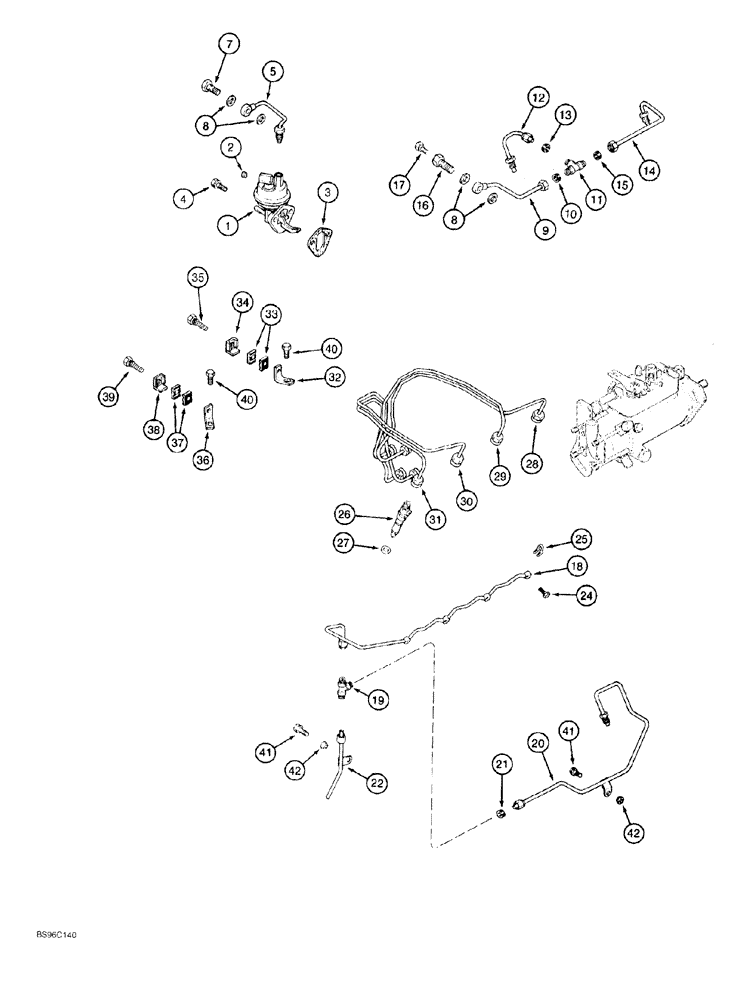

Запчасти Case 550G (3-08) - FUEL INJECTION SYSTEM, 4-390 AND 4T-390 ENGINE, PRIOR TO P.I.N. JJG0255794 (02) - FUEL SYSTEM

1

J928143

PUMP

lift, fuel, Replaces: J904374

1шт.

2

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

Fuel inlet, Replaces 221-841

1шт.

3

J931059

GASKET

mounting, fuel transfer pump, Replaces: J923054

1шт.

4

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

5

J905649

FUEL TUBE,8 mm OD x 233.5 mm L

ASSY. fuel supply, lift pump to filter

1шт.

7

J903035

BANJO BOLT

hex, 12 - 1.5 x 24 mm

1шт.

8

J935171

SEALING WASHER

special, 12 x 19 x 1.5 mm, Replaces: J918191

4шт.

9

J905364

FUEL TUBE

ASSY. fuel supply, filter to tee, Includes: Ref. 10

1шт.

10

222-103

SLEEVE,5/16" Tube

1шт.

11

J905353

TEE

9/16" NF, remove and discard nuts before assembly

1шт.

12

J905375

FUEL TUBE,8 mm OD x 137.6 mm L

fuel supply, tee to rear of injection pump, Includes: Ref. 13

1шт.

13

222-103

SLEEVE,5/16" Tube

1шт.

14

J905363

FUEL TUBE,8 mm OD x 256.8 mm L

fuel supply, tee to front of injection pump, Includes: Ref. 15

1шт.

15

222-103

SLEEVE,5/16" Tube

1шт.

J905860

BANJO BOLT

ASSY. banjo hex, special, Includes: Ref. 16 and 17

1шт.

16

NSS

NOT SOLD SEPARAT

BOLT connector, banjo hex, special

1шт.

17

NSS

NOT SOLD SEPARAT

SCREW hex, special, vent

1шт.

18

J909695

FUEL TUBE

TUBE manifold, fuel drain

1шт.

19

222-121

TEE,3/16", Flex Tubing

Remove and discard nuts before assembly

1шт.

20

J925882

FUEL TUBE,4.76 mm OD x 662.1 mm L

fuel return, tee to pump, Includes: Ref. 21

1шт.

21

222-103

SLEEVE,5/16" Tube

1шт.

22

J905692

FUEL TUBE

fuel return, tee to fuel tank

1шт.

24

J905307

BANJO BOLT,M6 x 1 x 14.30mm

Drain, Special

4шт.

25

J903380

SEAL

connector

4шт.

26

REF

INSTRUCTION

INJECTOR ASSY. fuel, see Figure 3-14

4шт.

27

J906659

SEAL

injector nozzle, 7 mm injector tip

1шт.

28

J903522

FUEL TUBE,2 mm ID x 6.4 mm OD x 643.1 mm L

fuel injector, No. 1 cylinder

1шт.

29

J903523

FUEL TUBE,2 mm ID x 6.4 mm OD x 645.3 mm L

fuel, No. 2 cylinder

1шт.

30

J903524

FUEL TUBE

fuel injector, No. 3 cylinder

1шт.

31

J903525

FUEL TUBE

fuel injector, No. 4 cylinder

1шт.

32

J930689

SUPPORT

fuel tube, No. 1 and 2, Replaces: J919294

1шт.

33

J917746

CLAMP

fuel tube

2шт.

34

J904711

SUPPORT

fuel tube

1шт.

35

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

1шт.

36

J930688

SUPPORT

fuel tube, Replaces: J919292

1шт.

37

J917746

CLAMP

fuel tube

2шт.

38

CURJ904711

CLAMP

fuel tube

1шт.

39

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

1шт.

40

J918109

FLANGE BOLT,Hex, M8 x 1.25 x 25mm

Special

2шт.

41

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

2шт.

42

J928759

SEALING WASHER

cover bolt, Replaces: J900267

2шт.
