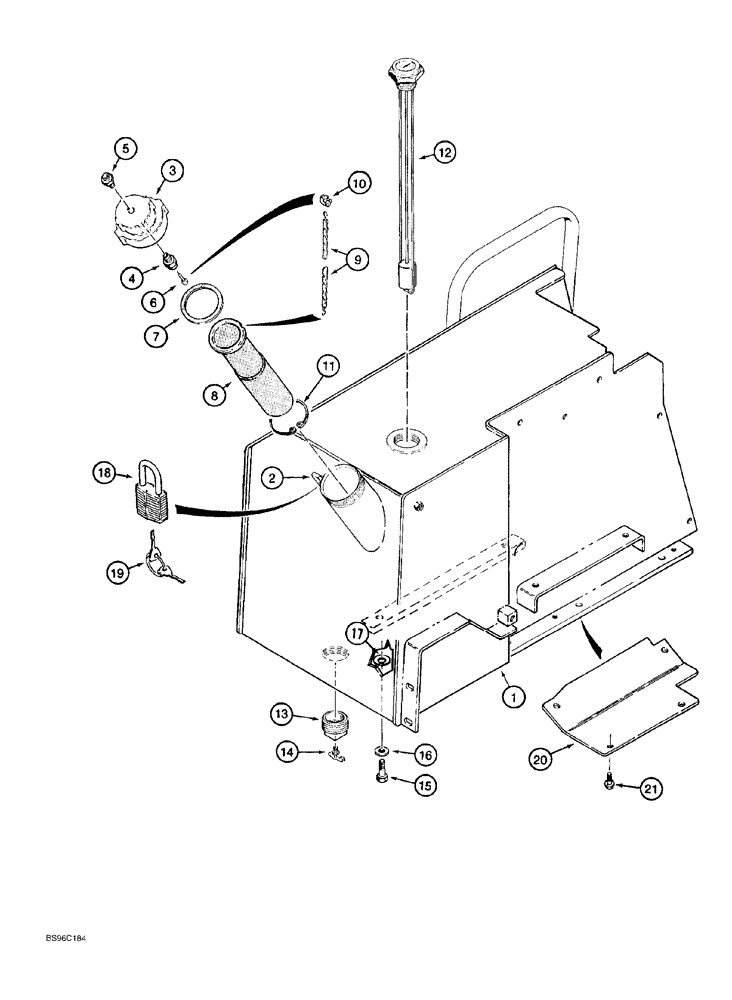

Запчасти Case 550G (3-04) - FUEL TANK (02) - FUEL SYSTEM

1

255322A1

TANK

ASSY. fuel, service with 103669A1, see Figure 3-07A, Ref. 2, for adapter to be used on models with emission engines, Includes: Ref. 2 - 6

1шт.

2

R46704

BRACKET

TAB locking, fuel cap, weld on

1шт.

R57981

FILLER CAP

fuel tank, Includes: Ref. 3 - 6

1шт.

3

NSS

NOT SOLD SEPARAT

CAP fuel tank

1шт.

4

A50096

VALVE

relief

1шт.

5

R57888

FILTER

air inlet

1шт.

6

301-14712

SCREW,Drive, #12 x 3/4"

Round head

1шт.

7

R49868

GASKET,72mm ID x 90mm OD x 3mm Thk

rubber

1шт.

8

R51771

STRAINER ASSY.

fuel

1шт.

9

R47786

CHAIN (CE)

filler cap

1шт.

10

R48634

FASTENER

HOOK chain

1шт.

11

103-21300

SNAP RING,3.00", Int, #300

Fuel strainer, chain

1шт.

12

R28475

FUEL GAUGE

tank

1шт.

13

R27578

PLUG

drain

1шт.

14

217-81

VALVE

drain, fuel tank, 1/8" PT

1шт.

15

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

4шт.

16

496-21053

WASHER,17/32" x 1 1/16" x .134"

Hardened

4шт.

17

D44330

SHIM,.031" Thk

(21/32" ID x 1-1/4" OD)

1шт.

18

D93753

PADLOCK

includes keys, if used, Includes: Ref. 19

1шт.

19

R29555

KEY

for Master padlock only

2шт.

19

D93751

SET OF 2 KEYS

for Yale padlock only

2шт.

20

R58566

GUARD

COVER transmission controls, lower

1шт.

See Figure 6-34, Ref. 55 and 56 for top and front console covers.

1шт.

21

160-106

BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

4шт.
