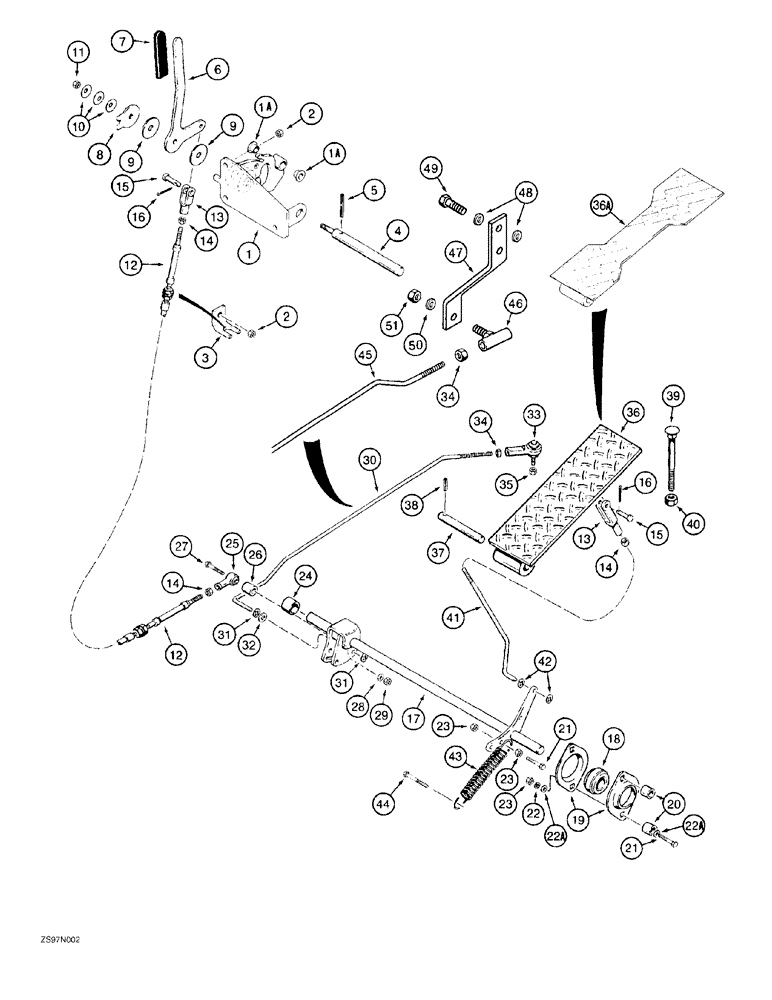

Запчасти Case 550G (3-02) - THROTTLE CONTROLS (01) - ENGINE

1

106584A2

BRACKET

mounting, throttle and transmission controls, Replaces: 106584A1, Includes: Ref. 1A

1шт.

1a

R58311

BRONZE BUSHING

BUSHING bronze

2шт.

2

231-1446

NUT,3/8" - 16, Gr 5

4шт.

3

R52478

cable support

1шт.

4

R57937

SHAFT

pivot

1шт.

5

38-11632

LOCK PIN,1/4" x 2", Slotted

1шт.

6

R57933

LEVER

throttle control

1шт.

7

R52376

MOLDING

GRIP lever

1шт.

8

R57932

LARGE PLATE

PLATE, LARGE friction disc

1шт.

9

R52389

DISC

friction, no longer available, order 1342385C1 shown below

2шт.

9

1342385C1

DISC

friction, Replaces: R52389

2шт.

10

R58742

WASHER

Belleville, throttle lever mounting

3шт.

11

231-1446

NUT,3/8" - 16, Gr 5

1шт.

12

R57954

CABLE

hand throttle control

1шт.

13

213-125

ADJUSTABLE CLEVIS,5/16" - 32

2шт.

14

425-115

NUT,5/16"-24, G5

3шт.

15

427-5094

CLEVIS PIN,7.92mm OD x 23.88mm L

2шт.

16

432-612

COTTER PIN,3/32" x 3/4"

2шт.

17

R58612

SHAFT

cross, throttle control

1шт.

18

468390R92

BALL BEARING,0.6255" ID x 40 mm OD x 0.75"

ball, throttle shaft

2шт.

19

F13526

FLANGED BEARING

bearing, cross shaft

4шт.

20

D34162

SPACER

flange

4шт.

21

413-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

5шт.

22

492-11025

LOCK WASHER,1/4"

4шт.

22a

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16")

8шт.

23

425-104

NUT,1/4"-20, Cl 5

6шт.

24

1334638C1

SPACER

cross shaft

1шт.

25

R47498

END

ball joint, throttle cable

1шт.

26

F13386

SPACER

ball joint end

1шт.

27

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

28

495-11034

WASHER,5/16", SAE

(flat, 11/32" x 11/16" x 1/16")

1шт.

29

231-1445

NUT,5/16"-18, GB

1шт.

30

R58718

ROD

throttle, at injection pump, models without decelerator, Serial Range: -JJG0355794

1шт.

30

101775A1

ROD

throttle, at injection pump, models with decelerator, if used

1шт.

31

100-1425

SNAP RING,#25, Ext

2шт.

32

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16")

1шт.

33

A10329

BALL JOINT,1/4" - 28 x 1"

throttle rod, 1/4" NF, Serial Range: -JJG0355794

1шт.

34

425-114

NUT,1/4"-28, G5

1шт.

35

231-2444

NUT,1/4"-28, GB

hex, 1/4" NF, Serial Range: -JJG0355794

1шт.

36

R26937

PEDAL

foot throttle, at injection pump, models without decelerator

1шт.

36a

R57935

PEDAL

foot throttle, at injection pump, models with decelerator

1шт.

For installation of decelerator parts, see instruction sheet Bur 8-80032.

1шт.

37

R17364

SHAFT

pedal

1шт.

38

38-11016

LOCK PIN,5/32" x 1", Slotted

1шт.

39

411-864

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 4", Gr 2

carriage, accelerator stop, 1/2" NC x 4", grade 2

1шт.

40

425-108

NUT,1/2" - 13, Gr 5

1шт.

41

R58645

ROD

throttle, models without decelerator

1шт.

41

R58646

ROD

throttle, models with decelerator

1шт.

For installation of decelerator parts, see instruction sheet Bur 8-80032.

1шт.

42

100-1431

SNAP RING,#31, Ext

2шт.

43

R36912

SPRING

return

1шт.

44

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

1шт.

45

257302A1

ROD

throttle, at injection pump, models without decelerator, Start Serial: JJG0255794

1шт.

46

225619A1

BALL JOINT

throttle rod, Start Serial: JJG0255794

1шт.

47

257861A1

LEVEL

LEVER accelerator, Start Serial: JJG0255794

1шт.

48

892-11006

LOCK WASHER,M6

, Start Serial: JJG0255794

4шт.

49

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

, Start Serial: JJG0255794

2шт.

50

492-11025

LOCK WASHER,1/4"

, Start Serial: JJG0255794

1шт.

51

425-154

JAM NUT,Jam, 1/4"-28, G5

, Start Serial: JJG0255794

1шт.

52

101638A1

DECAL

caution, this unit is equipped with a decelerator pedal, see Ref. 8, Figure 9-38, not illustrated

1шт.
