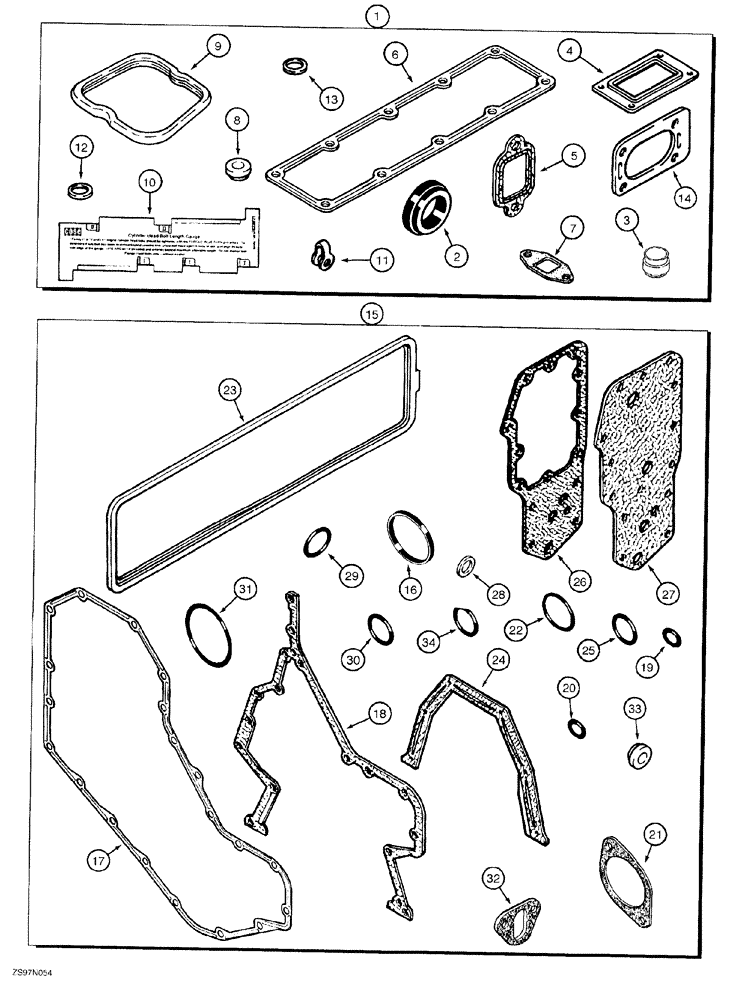

Запчасти Case 550G (2-59A) - ENGINE GASKET KITS, 4-390 AND 4T-390 EMISSIONS CERTIFIED ENGINE, P.I.N. JJG0255794 AND AFTER (01) - ENGINE

1

A77870

SEAL PACKAGE

KIT gasket, valve grind, engine, Includes: Ref. 2 - 14

1шт.

When just the valve grind gasket kit is used, also order the required cylinder head gasket, Ref. 2, Figure 2-37A.

1шт.

2

J923331

GASKET

thermostat housing

1шт.

3

J901097

SEAL

intake and exhaust valve guides, no longer used, order (8) J921640 shown below

4шт.

3

J921640

SEAL

valve, intake and exhaust guides

4-8шт.

4

J919369

GASKET,0.5mm Thk

, Serial Range: turbocharger-manifold

1шт.

5

J905443

MANIFOLD GASKET

exhaust manifold

4шт.

6

J938153

MANIFOLD GASKET,0.8mm Thk

intake manifold, Replaces: J914028

1шт.

7

J931350

GASKET

turbo oil drain tube

1шт.

8

J935449

ISOLATOR,10.2mm ID x 19mm OD x 10.1mm L

noise, cover bolt, Replaces: J928406

4шт.

9

J930906

GASKET

SEAL rocker arm cover, Replaces: J902666

4шт.

10

J823921

GAUGE

cylinder head, bolt length

1шт.

11

J903380

SEAL

connector, fuel return manifold tube

4шт.

12

J906659

SEAL

injector nozzle, 7 mm injector tip

4шт.

13

J909356

SEAL,Square, 1.68mm Thk x 15.6mm ID, -16

O-RING body to nut, injector body, 7 mm

4шт.

14

J914856

GASKET,1.02mm Thk

air crossover connection

1шт.

15

A77864

SEAL PACKAGE

KIT gasket, cylinder block, Replaces: A77671, Includes: Ref. 16 - 34

1шт.

For complete engine overhaul, order (1) cylinder block kit, (1) valve grind kit, (1) oil pan kit, Figure 2-35A, front and rear crankshaft seal kit, Figure 2-50, and required cylinder head gasket, Figure 2-37A.

1шт.

16

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

front access cover, cylinder block

1шт.

17

J918673

GASKET,1.02mm Thk

front cover, cylinder block

1шт.

18

J931351

GASKET

gear housing, cylinder block

1шт.

19

J915772

SEAL,Square, 1.68mm Thk x 29.87mm ID, -25

SEALRING Quad, timing pin housing, cylinder block

1шт.

20

J913994

O-RING

sealing, timing pin, cylinder block

1шт.

21

J929751

GASKET

access cover plate, accessory drive, cylinder block, Replaces: J919601

1шт.

22

238-5341

O-RING,0.21" Thk x 3.475" ID, -341, Cl 5, 75 Duro

Water pump to cylinder block

1шт.

23

J283767

GASKET,7.4mm Thk

tappet cover, cylinder block

1шт.

24

J928493

GASKET

rear cover retainer, crankshaft, cylinder block, Replaces: J914386

1шт.

25

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

O-RING water inlet connection, 50 mm ID, cylinder block

1шт.

26

J942914

GASKET

oil cooler core, cylinder block, Replaces: J926760

1шт.

27

J929792

GASKET,1.2mm Thk

filter head, oil, cylinder block

1шт.

28

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

sealing, plug, oil pan, cylinder block

1шт.

29

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

O-RING engine oil fill tube, 38 mm (1-1/2") ID, cylinder block

1шт.

30

J929457

O-RING

oil filter plug, cylinder block

1шт.

31

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

SEALRING flywheel housing to cylinder block

1шт.

32

J931059

GASKET

mounting, fuel transfer pump, cylinder block, Replaces: J931348

1шт.

33

J928759

SEALING WASHER

cover bolt, cylinder block, Replaces: J900267

4шт.

34

J935032

SEAL

GASKET cylinder block, Replaces: J930993

1шт.
