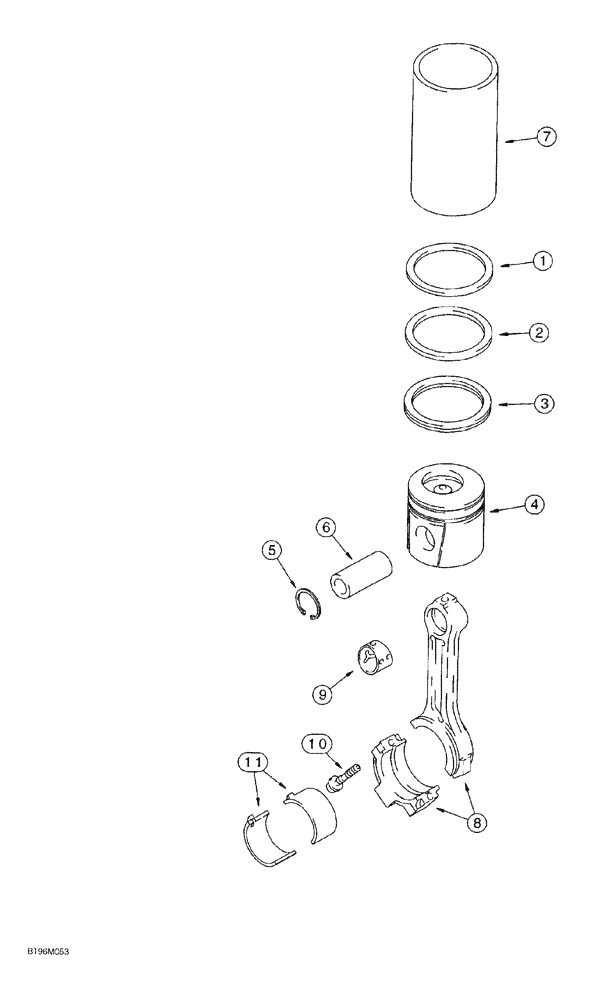

Запчасти Case 550G (2-57A) - PISTONS AND CONNECTING RODS, 4-390 EMISSIONS CERTIFIED ENGINE, P.I.N. JJG0255794 AND AFTER (01) - ENGINE

J804980

PISTON & RINGS KIT

standard, Includes: Ref. 1 - 6

4шт.

J804930

PISTON RING SET

KIT standard, Includes: Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

RING compression, top

1шт.

2

NSS

NOT SOLD SEPARAT

RING compression, middle

1шт.

3

NSS

NOT SOLD SEPARAT

RING oil, bottom

1шт.

4

NSS

NOT SOLD SEPARAT

PISTON cylinder, standard

1шт.

5

J901706

RING

snap

2шт.

6

J919053

PISTON PIN

1шт.

J804981

PISTON & RINGS KIT

0.5 mm oversize, Includes: Ref. 1 - 6

4шт.

J804931

PISTON RING SET

KIT, 0.5 mm oversize, Includes: Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

RING compression, top

1шт.

2

NSS

NOT SOLD SEPARAT

RING compression, middle

1шт.

3

NSS

NOT SOLD SEPARAT

RING oil, bottom

1шт.

4

NSS

NOT SOLD SEPARAT

PISTON cylinder, 0.5 mm oversize

1шт.

5

J901706

RING

snap

2шт.

6

J919053

PISTON PIN

1шт.

J804982

PISTON & RINGS KIT

1.0 mm oversize, Includes: Ref. 1 - 6

4шт.

J804932

PISTON RING SET

KIT, 1.0 mm oversize, Includes: Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

RING compression, top

1шт.

2

NSS

NOT SOLD SEPARAT

RING compression, middle

1шт.

3

NSS

NOT SOLD SEPARAT

RING oil, bottom

1шт.

4

NSS

NOT SOLD SEPARAT

PISTON cylinder, 1.0 mm oversize

1шт.

5

J901706

RING

snap

2шт.

6

J919053

PISTON PIN

1шт.

7

J904166

SLEEVE

LINER piston, used only in engine block repair, when liner is installed, use J804980 standard piston kit shown above

1шт.

J942581

ROD, CONNECTING

ASSY. new, Includes: Ref. 8 - 10ASSY. new, Includes: Ref. 8 - 10

4шт.

JR942581

REMAN-CONNECTING ROD

Assy., component parts shown in this figure do not apply to the remanufactured assembly, Includes: Ref. 8 - 10

4шт.

JC942581

CORE-ROD CONNECTING

Core-Connecting Rod Return Number, use this part number to return connecting rod for credit when using a remanufactured assembly, Includes: Ref. 8 - 10

4шт.

84145405R

REMAN-CONNECTING ROD

550G P.I.N. JJG0255794 AND AFTER (2/95-), Reman For New PN J942581

4шт.

84145405C

CORE-ROD CONNECTING

Return Number

4шт.

8

NSS

NOT SOLD SEPARAT

ROD connecting, includes both halves

1шт.

9

J941476

BUSHING

Connecting rod, to piston pin

1шт.

10

J900919

BOLT,Flng, MJ11 x 1.25 x 59mm, Cl 12.9

hex, special, connecting rod

2шт.

11

A77894

BEARING SET,69mm ID x 73.53mm OD x 31mm W

KIT upper and lower set, standard

4шт.

11

A77466

BEARING SET

KIT upper and lower set, 0.25 mm oversize

4шт.

11

A77467

BEARING LINER

KIT upper and lower set, 0.50 mm oversize

4шт.

11

A77468

BEARING SET

KIT upper and lower set, 0.75 mm oversize

4шт.

11

A77469

BEARING SET

KIT upper and lower set, 1.00 mm oversize

4шт.
