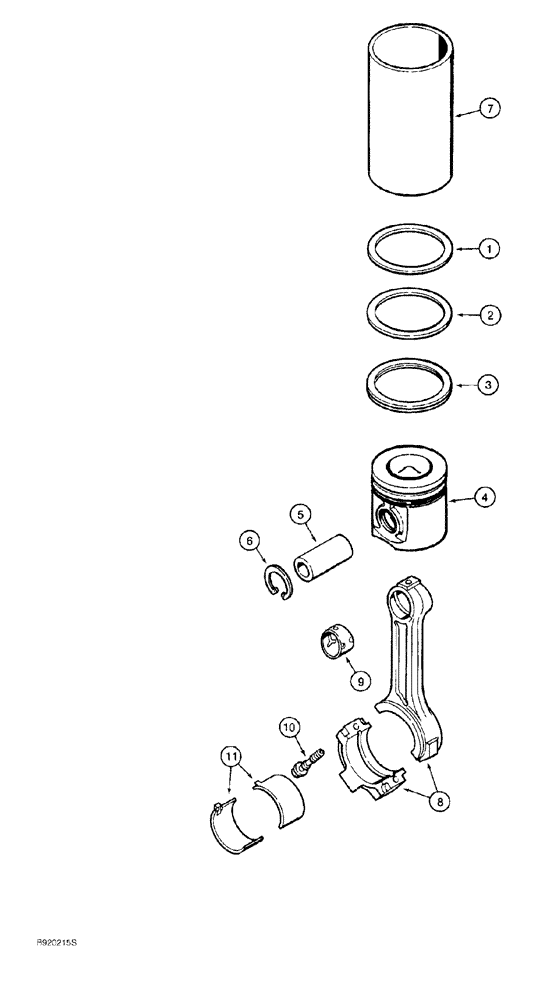

Запчасти Case 550G (2-56) - PISTONS AND CONNECTING RODS, 4-390 ENGINE, PRIOR TO P.I.N. JJG0255794 (01) - ENGINE

A77818

PACKAGE

piston, standard, Includes: Ref. 1 - 6

4шт.

A77401

PISTON RING SET

KIT standard, Includes: Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

RING compression, top

1шт.

2

NSS

NOT SOLD SEPARAT

RING compression, middle

1шт.

3

NSS

NOT SOLD SEPARAT

RING oil, bottom

1шт.

4

NSS

NOT SOLD SEPARAT

PISTON cylinder, standard, stamped 6223

1шт.

5

J919053

PISTON PIN

1шт.

6

J901706

RING

snap

2шт.

A77819

PACKAGE

piston, 0.5 mm oversize, Includes: Ref. 1 - 6

4шт.

A77463

PISTON RING SET

KIT, 0.5 mm oversize, Includes: Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

RING compression, top

1шт.

2

NSS

NOT SOLD SEPARAT

RING compression, middle

1шт.

3

NSS

NOT SOLD SEPARAT

RING oil, bottom

1шт.

4

NSS

NOT SOLD SEPARAT

PISTON cylinder, 0.5 mm oversize, stamped 6209

1шт.

5

J919053

PISTON PIN

1шт.

6

J901706

RING

snap

2шт.

A77820

PACKAGE

piston, 1.0 mm oversize, Includes: Ref. 1 - 6

4шт.

A77464

PISTON RING SET

KIT, 1.0 mm oversize, Includes: Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

RING compression, top

1шт.

2

NSS

NOT SOLD SEPARAT

RING compression, middle

1шт.

3

NSS

NOT SOLD SEPARAT

RING oil, bottom

1шт.

4

NSS

NOT SOLD SEPARAT

PISTON cylinder, 1.0 mm oversize, stamped 6208

1шт.

5

J919053

PISTON PIN

1шт.

6

J901706

RING

snap

2шт.

7

J904166

SLEEVE

LINER piston, used only in engine block repair, when liner is installed, use A77818 piston kit shown above

1шт.

JR925232

ROD

ASSY. connecting, remanufactured, North America only, component parts shown in this figure do not apply to the remanufactured assembly, Includes: Ref. 8 - 10

1шт.

JC925232

CORE-ROD CONNECTING

CORE-CONNECTING ROD RETURN NUMBER, use this part number to return connecting rod for credit when using a remanufactured assembly, Includes: Ref. 8 - 10

1шт.

J925232

ROD, CONNECTING

ASSY. new, Includes: Ref. 8 - 10

4шт.

84145405R

REMAN-CONNECTING ROD

550G PRIOR TO P.I.N. JJG0255794 (2/95-), Reman For New P/N J925232

4шт.

84145405C

CORE-ROD CONNECTING

Return Number

1шт.

8

NSS

NOT SOLD SEPARAT

ROD connecting, includes both halves

1шт.

9

J901085

BUSHING

Connecting rod, to piston pin

1шт.

10

J900919

BOLT,Flng, MJ11 x 1.25 x 59mm, Cl 12.9

hex, special, connecting rod

2шт.

11

A77465

BEARING SET

KIT upper and lower set, standard

4шт.

11

A77466

BEARING SET

KIT upper and lower set, 0.25 mm oversize

4шт.

11

A77467

BEARING LINER

KIT upper and lower set, 0.50 mm oversize

4шт.

11

A77468

BEARING SET

KIT upper and lower set, 0.75 mm oversize

4шт.

11

A77469

BEARING SET

KIT upper and lower set, 1.00 mm oversize

4шт.
