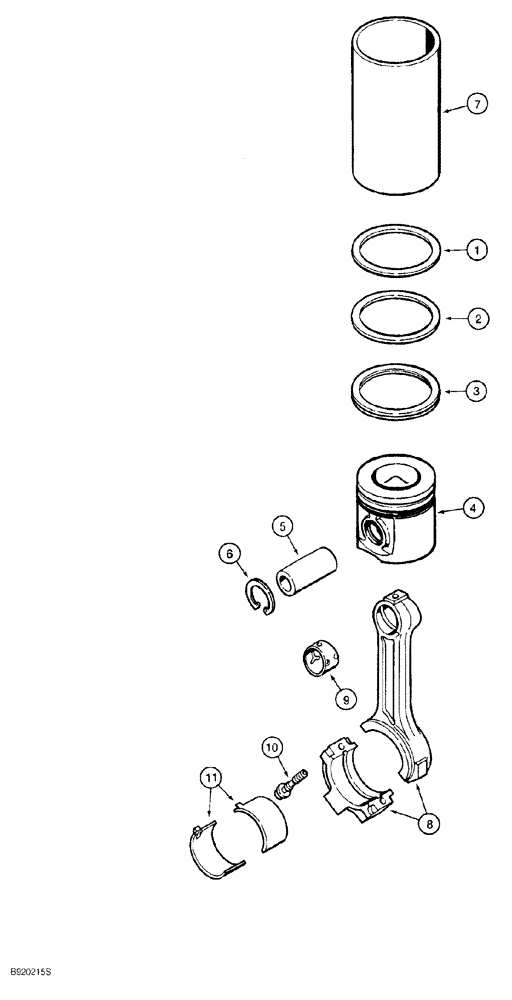

Запчасти Case 550G (2-54) - PISTONS AND CONNECTING RODS, 4T-390 ENGINE, PRIOR TO P.I.N. JJG0255794 (01) - ENGINE

A77730

PISTON,104MM PISTON DIAMETER

KIT standard, Includes: Ref. 1 - 6

4шт.

A77727

PISTON RING SET

KIT standard, Includes: Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

RING compression, top

1шт.

2

NSS

NOT SOLD SEPARAT

RING compression, middle

1шт.

3

NSS

NOT SOLD SEPARAT

RING oil, bottom

1шт.

4

NSS

NOT SOLD SEPARAT

PISTON cylinder, standard, stamped 7163

1шт.

5

J901793

PISTON PIN

1шт.

6

J901706

RING

snap

2шт.

A77731

PISTON & RINGS KIT

KIT, 0.5 mm oversize, Includes: Ref. 1 - 6

4шт.

A77728

PISTON RING SET

KIT, 0.5 mm oversize, Includes: Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

RING compression, top

1шт.

2

NSS

NOT SOLD SEPARAT

RING compression, middle

1шт.

3

NSS

NOT SOLD SEPARAT

RING oil, bottom

1шт.

4

NSS

NOT SOLD SEPARAT

PISTON cylinder, 0.5 mm oversize, stamped 8815

1шт.

5

J901793

PISTON PIN

1шт.

6

J901706

RING

snap

2шт.

A77732

PISTON

KIT, 1.0 mm oversize, Includes: Ref. 1 - 6

1шт.

A77729

PISTON RING SET

KIT, 1.0 mm oversize, Includes: Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

RING compression, top

1шт.

2

NSS

NOT SOLD SEPARAT

RING compression, middle

1шт.

3

NSS

NOT SOLD SEPARAT

RING oil, bottom

1шт.

4

NSS

NOT SOLD SEPARAT

PISTON cylinder, 1.0 mm oversize, stamped 8816

1шт.

5

J901793

PISTON PIN

1шт.

6

J901706

RING

snap

2шт.

7

J904166

SLEEVE

LINER piston, used only in engine block repair, when liner is installed, use A77730 standard piston kit shown above

1шт.

JR925232

ROD

ASSY. connecting, remanufactured, North America only, component parts shown in this figure do not apply to the remanufactured assembly, Includes: Ref. 8 - 10

1шт.

JC925232

CORE-ROD CONNECTING

CORE-CONNECTING ROD RETURN NUMBER, use this part number to return connecting rod for credit when using a remanufactured assembly, Includes: Ref. 8 - 10

1шт.

J925232

ROD, CONNECTING

ASSY. new, includes both halves, Includes: Ref. 8 - 10

4шт.

84145405R

REMAN-CONNECTING ROD

550G PRIOR TO P.I.N. JJG0255794 (2/95-), Reman For New P/N J925232

4шт.

84145405C

CORE-ROD CONNECTING

Return Number

1шт.

8

NSS

NOT SOLD SEPARAT

ROD connecting

1шт.

9

J901085

BUSHING

Connecting rod

1шт.

10

J900919

BOLT,Flng, MJ11 x 1.25 x 59mm, Cl 12.9

BOLT hex, special, connecting rod

2шт.

11

A77465

BEARING SET

KIT upper and lower set, standard

4шт.

11

A77466

BEARING SET

KIT upper and lower set, 0.25 mm oversize

4шт.

11

A77467

BEARING LINER

KIT upper and lower set, 0.50 mm oversize

4шт.

11

A77468

BEARING SET

KIT upper and lower set, 0.75 mm oversize

4шт.

11

A77469

BEARING SET

KIT upper and lower set, 1.00 mm oversize

4шт.
