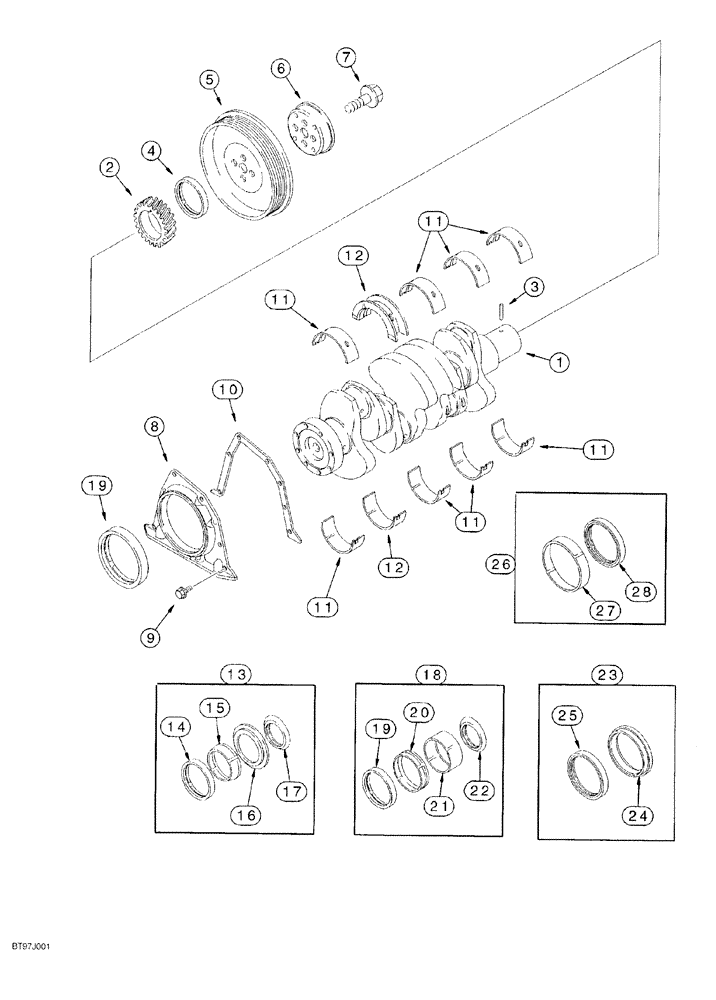

Запчасти Case 550G (2-51A) - CRANKSHAFT, 4-390 AND 4T-390 EMISSIONS CERTIFIED ENGINE, P.I.N. JJG0255794 AND AFTER (01) - ENGINE

JR908031

CRANKCASE

SHAFT engine, remanufactured, North America only, component parts shown in this figure do not apply to the remanufactured assembly, for service order J908031 crankshaft assembly, Ref. 1, Includes: Ref. 2 and 3

1шт.

J929036R

REMAN-CRANKSHAFT

550G EMISSIONS, P.I.N. JJG0255794 AND AFTER (2/95-), Reman for New P/N JR908031

1шт.

J929036C

CORE-CRANKSHAFT

Return Number

1шт.

JC908031

CORE-CRANKSHAFT

RETURN NUMBER, use this part number to return crankshaft for credit when using a remanufactured assembly, Includes: Ref. 2 and 3

1шт.

1

J908031

CRANKSHAFT

ASSY. engine, Includes: Ref. 2 and 3

1шт.

J929036R

REMAN-CRANKSHAFT

550G EMISSIONS P.I.N. JJG0255794 AND AFTER (2/95-), Reman for New P/N J908031

1шт.

J929036C

CORE-CRANKSHAFT

Return Number

1шт.

2

J929027

PINION

GEAR crankshaft

1шт.

3

J904483

PIN,6.01mm OD x 8mm L

dowel

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL oil, crankshaft front, order Ref. 13, A77889 kit

1шт.

5

J914494

PULLEY,181.25mm OD

crankshaft vibration damper

1шт.

6

J905820

ADAPTER

FLANGE adapter, pulley

1шт.

7

J903857

BOLT,Hex, M12 x 1.25 x 36mm

hex flange, special, 12 - 1.25 x 36 mm

4шт.

8

J921043

REAR COVER

RETAINER seal

1шт.

9

845-6015

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8

6шт.

10

J928493

GASKET

rear cover retainer

1шт.

11

J804940

BEARING SET

main, upper and lower set, standard, 4-390 engine

4шт.

11

A77405

CRANKSHAFT BEARING

main, upper and lower set, standard, 4T-390 engine

4шт.

11

A77472

BEARING SET

main, upper and lower set, 0.25 mm undersize

4шт.

11

A77474

BEARING SET

main, upper and lower set, 0.50 mm undersize

4шт.

11

A77476

BEARING SET

main, upper and lower set, 0.75 mm undersize

4шт.

11

A77478

BEARING SET

main, upper and lower set, 1.00 mm undersize

4шт.

12

A77895

THRUST BEARING,KIT

thrust, main, upper and lower set, standard, 4-390 engine

1шт.

12

A77896

BEARING SET

main, upper and lower set, standard, 4T-390 engine, Replaces: A77406

1шт.

12

A77473

THRUST BEARING

main, upper and lower set, 0.25 mm undersize

1шт.

12

A77475

THRUST BEARING

main, upper and lower set, 0.50 mm undersize

1шт.

12

A77477

THRUST BEARING

main, upper and lower set, 0.75 mm undersize

1шт.

12

A77479

THRUST BEARING

main, upper and lower set, 1.00 mm undersize

1шт.

12

A77841

THRUST BEARING

main, upper and lower set, 0.50 mm undersize, 0.50 mm oversize thrust

1шт.

12

A77840

THRUST BEARING

main, upper and lower set, 1.00 mm undersize, 1.00 mm oversize thrust

1шт.

13

A77889

SEAL PACKAGE

oil, crankshaft front, Includes: Ref. 14 - 17

1шт.

14

NSS

NOT SOLD SEPARAT

SEAL oil, front

1шт.

15

NSS

NOT SOLD SEPARAT

TOOL installation

1шт.

16

NSS

NOT SOLD SEPARAT

TOOL installation

1шт.

17

NSS

NOT SOLD SEPARAT

SHIELD dust

1шт.

18

A77890

SEAL PACKAGE

oil, crankshaft front, includes wear sleeve, Includes: Ref. 19 - 22

1шт.

19

NSS

NOT SOLD SEPARAT

SEAL oil, front

1шт.

20

NSS

NOT SOLD SEPARAT

SLEEVE wear

1шт.

21

NSS

NOT SOLD SEPARAT

TOOL installation

1шт.

22

NSS

NOT SOLD SEPARAT

SHIELD dust

1шт.

23

J353978

SEAL PACKAGE

oil, crankshaft rear, Includes: Ref. 24 and 25

1шт.

24

NSS

NOT SOLD SEPARAT

TOOL installation

1шт.

25

NSS

NOT SOLD SEPARAT

SEAL oil, rear

1шт.

26

A77810

SERVICE KIT

oil, crankshaft rear, includes wear sleeve, Includes: Ref. 27 and 28

1шт.

27

NSS

NOT SOLD SEPARAT

SLEEVE wear

1шт.

28

NSS

NOT SOLD SEPARAT

SEAL oil, rear

1шт.
