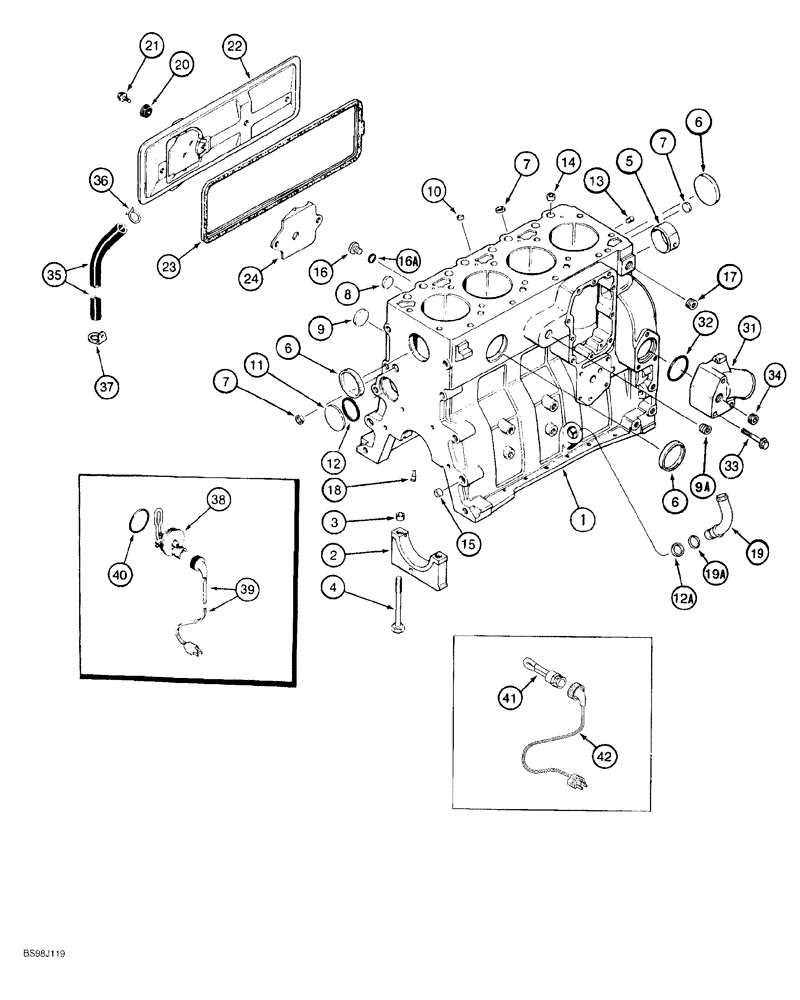

Запчасти Case 550G (2-49E) - CYLINDER BLOCK, 4-390 EMISSIONS CERTIFIED ENGINE, P.I.N. JJG0255794 AND AFTER (01) - ENGINE

235117A1

ENGINE ASSEMBLY

ENGINE ASSY 4-390 emissions certified, complete, for service order 302562A1 basic engine shown below, Includes: Ref. 1 - 8

1шт.

The engine part number is stamped on a metal tag which is mounted on the front gear cover.

1шт.

302562A1

BASIC ENGINE

ASSY., includes all parts except starter, alternator, fan, fan belt, air cleaner, muffler, exhaust manifold, flywheel & housing, oil fill & dipstick, fuel injection pump, injectors & lines, front pulley & belt tensioner, Includes: Ref. 1 - 8

1шт.

47465894R

REMAN-BASIC ENGINE

Assy. basic, remanufactured, component parts shown in this figure do not apply to the remanufactured assembly, Includes: Ref. 1 - 8; See Note. Built with 4 bolt injection pump front housing

1шт.

47465894C

CORE-BASIC ENGINE

Return Part Number

1шт.

JR933649

REMAN-SHORT ENGINE

Block Assy. short, remanufactured, component parts shown in this figure do not apply to the remanufactured assembly, Includes: Ref. 1 - 8

1шт.

JC933649

CORE-SHORT ENGINE

Return Part Number, use this part number to return short block core for credit when using a remanufactured assembly, Includes: Ref. 1 - 8

1шт.

J933649

SHORT ENGINE

short, new, includes stripped block, pistons, connecting rods and bearings, crankshaft and bearings, Includes: Ref. 1 - 8

1шт.

1

87444172

BLOCK ASSY.

stripped, engine, also order J933220 block hardware kit shown below, Includes: Ref. 1 - 8

1шт.

2

J903492

BEARING CAP

CAP main, Includes: Ref. 3

5шт.

3

J900068

BEARING WASHER

RING dowel, main bearing cap to block, 18 mm O.D.

10шт.

4

J927948

BOLT,Flng, MJ12 x 1.5H6H x 119mm, Cl 12.9

Main bearing cap, Special

10шт.

5

REF

INSTRUCTION

BUSHING camshaft front, see Figure 2-41A, Ref. 2

1шт.

6

A77782

PLUG

expansion, 58 mm O.D.

1шт.

7

J900956

PLUG

expansion, 18 mm O.D.

3шт.

8

41-1616

PLUG,Cup, 1", Stainless

Expansion

2шт.

J933220

PACKAGE,SERVICE

KIT block hardware, Includes: Ref. 9 - 18

1шт.

9

J900958

PLUG

expansion, 32 mm O.D.

2шт.

Part of Block Hardware Kit P/N J933220

1шт.

9a

A77505

PLUG

hex socket, 3/4" PT

1шт.

Part of Block Hardware Kit P/N J933220

1шт.

10

J900955

PLUG

expansion, 10 mm O.D.

1шт.

Part of Block Hardware Kit P/N J933220

1шт.

11

172599

PLUG,Exp, 2 3/8"

expansion, welch, 60 mm O.D.

1шт.

Part of Block Hardware Kit P/N J933220

1шт.

12

J926047

O-RING,0.07" Thk x 2.239" ID

O-RING sealing, 57 mm ID

1шт.

Part of Block Hardware Kit P/N J933220

1шт.

12a

J920706

PLUG

expansion, 22 mm O.D.

1шт.

Part of Block Hardware Kit P/N J933220

1шт.

13

J900257

PIN,10.01mm OD x 16mm L

dowel, locating, 16 mm long

2шт.

Part of Block Hardware Kit P/N J933220

1шт.

14

J902343

DOWEL

RING, 16 mm O.D.

2шт.

Part of Block Hardware Kit P/N J933220

1шт.

15

J900068

BEARING WASHER

RING dowel, 18 mm O.D.

2шт.

Part of Block Hardware Kit P/N J933220

1шт.

16

J678923

PLUG,M10 x 1

hex socket, 10 mm, Includes: Ref. 16A

3шт.

Part of Block Hardware Kit P/N J933220

1шт.

16a

637-72081

O-RING,1.6mm Thk x 8.1mm ID, Cl 7, 75 Duro

Plug

1шт.

Part of Block Hardware Kit P/N J933220

1шт.

17

A77429

PLUG

hex socket, 1/2" PT

1шт.

Part of Block Hardware Kit P/N J933220

1шт.

17a

J678921

PLUG

hex socket, 14 mm, not used in this application, not illustrated, Includes: Ref. 17B

1шт.

Part of Block Hardware Kit P/N J933220

1шт.

17b

J678912

O-RING,2.2mm Thk x 11.3mm ID

Sealing, Not used in this application, Not Illustrated

1шт.

Part of Block Hardware Kit P/N J933220

1шт.

17c

J932296

PLUG

timing sensor hole, not used in this application, not illustrated, Includes: Ref. 17D

1шт.

Part of Block Hardware Kit P/N J933220

1шт.

17d

J330478

O-RING,0.07" Thk x 0.676" ID

sealing, not used in this application, not illustrated

1шт.

Part of Block Hardware Kit P/N J933220

1шт.

17e

844-8016

BOLT,Hex, M8 x 16mm, Cl 8.8

Not used in this application, Not illustrated

1шт.

Part of Block Hardware Kit P/N J933220

1шт.

18

J930139

NOZZLE CAP

piston cooling

4шт.

Part of Block Hardware Kit P/N J933220

1шт.

19

J931973

TUBE,0.875" OD

turbocharger oil drain, not used in this application, Ref. 12A plug is installed in this port

1шт.

19a

J931824

O-RING,0.07" Thk x 0.739" ID, -18, Cl 7, 75 Duro

O-RING sealing, 18 mm ID, not used in this application

1шт.

20

J900267

SEAL

cover bolt

4шт.

21

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

2шт.

22

J925680

COVER

tappet

1шт.

23

J283767

GASKET,7.4mm Thk

tappet cover

1шт.

24

J907586

BAFFLE

tappet cover

1шт.

25

J905368

PLUG

expansion, 16 mm O.D., used to plug dipstick holes, not illustrated

2шт.

26

J905369

PLUG

expansion, 37 mm O.D., installed in left side of block for oil fill, not illustrated

1шт.

31

J934877

HYD CONNECTOR

water inlet, Replaces: J903102

1шт.

32

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

O-RING, 50 mm ID

1шт.

33

854-10075

BOLT,Hvy Hex, M10 x 75mm, Cl 10.9

Heavy

3шт.

34

A77429

PLUG

hex socket, 1/2" PT

2шт.

35

J918612

TUBE,360.00 mm

Breather

1шт.

36

J904230

CLAMP,25.4mm

spring, hose

1шт.

37

J928989

CLIP

retaining

1шт.

196803A1

KIT

engine block heater, Includes: Ref. 38 - 40

1шт.

38

NSS

NOT SOLD SEPARAT

ELEMENT engine block heater, 120 volt, 750 watt

1шт.

39

196466A1

ELECTRIC CABLE

engine block heater

1шт.

40

J910517

O-RING

heater sealing, engine block

1шт.

309651A1

KIT

engine block heater, Includes: Ref. 41 and 42

1шт.

41

NSS

NOT SOLD SEPARAT

ELEMENT engine block heater, 120 volt, 750 watt

1шт.

42

196466A1

ELECTRIC CABLE

engine block heater

1шт.

A77893

PACKAGE, REPAIR

engine overhaul, Includes: Ref. 43 - 50, not illustrated

1шт.

43

J804980

PISTON & RINGS KIT

standard, see Figure 2-57A, engine overhaul kit

4шт.

Part of Engine Overhaul Kit P/N A77893

1шт.

44

J919053

PISTON PIN

See Figure 2-57A, engine overhaul kit

4шт.

Part of Engine Overhaul Kit P/N A77893

1шт.

45

A77894

BEARING SET,69mm ID x 73.53mm OD x 31mm W

KIT upper and lower set, standard, see Figure 2-57A, engine overhaul kit

4шт.

Part of Engine Overhaul Kit P/N A77893

1шт.

46

J804940

BEARING SET

main, upper and lower set, standard, see Figure 2-51A, engine overhaul kit

4шт.

Part of Engine Overhaul Kit P/N A77893

1шт.

47

A77895

THRUST BEARING,KIT

main thrust, upper and lower set, standard, see Figure 2-51A, engine overhaul KIT

1шт.

Part of Engine Overhaul Kit P/N A77893

1шт.

48

A77870

SEAL PACKAGE

gasket, valve grind, see Figure 2-59A, engine overhaul kit

1шт.

Part of Engine Overhaul Kit P/N A77893

1шт.

49

J283333

CYLINDER HEAD GASKET,2.32mm Thk

head, standard, see Figure 2-37A, engine overhaul kit

1шт.

Part of Engine Overhaul Kit P/N A77893

1шт.

50

A77673

GASKET KIT

oil pan, see Figure 2-35A, engine overhaul kit

1шт.

Part of Engine Overhaul Kit P/N A77893

1шт.
