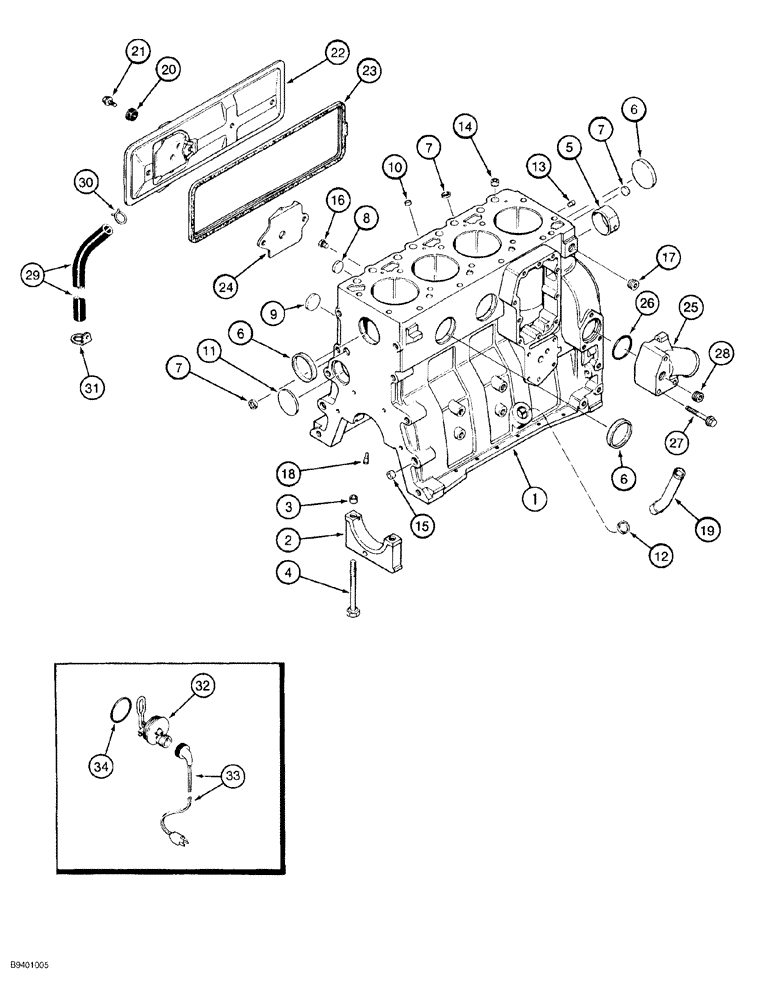

Запчасти Case 550G (2-42) - CYLINDER BLOCK, 4T-390 ENGINE, PRIOR TO P.I.N. JJG0255794 (01) - ENGINE

1989047C2

ENGINE ASSEMBLY

ENGINE ASSY complete, 4T-390, includes all parts except starter, alternator, fan, fan belt, air cleaner, muffler and exhaust pipe, for service order basic engine below, no longer available, order 1989047C3, see Figure 2-45A

1шт.

1989092C3R

REMAN-BASIC ENGINE

Reman Basic Engine, includes all parts except starter, alternator, fan, fan belt, air cleaner, muffler, exhaust manifold, flywheel and housing, oil fill and dipstick, fuel injection pump, injectors and lines, front pulley, belt tensioner, turbocharger and aftercooler

1шт.

1989092C3C

CORE-BASIC ENGINE

Return Number

1шт.

1989092C2

BASIC ENGINE

ASSY., includes all parts except starter, alternator, fan, fan belt, air cleaner, muffler, exhaust manifold, flywheel and housing, oil fill and dipstick, fuel injection pump, injectors and lines, front pulley, belt tensioner, turbocharger and aftercooler

1шт.

JR920387

SKELETON ENGINE

BLOCK ASSY. short, remanufactured, North America only, component parts in this figure do not apply to the remanufactured assembly, Replaces: AR77759

1шт.

AC77758

CORE-ENGINE

RETURN NUMBER, use this part number to return short block core for credit when using a remanufactured assembly

1шт.

J920387

SKELETON ENGINE

BLOCK ASSY. short, new, includes stripped block, pistons, connecting rods and bearings, crankshaft and bearings

1шт.

Order J920399 hardware kit when ordering J920387 block assembly or J916254 stripped block.

1шт.

1

J916254

BLOCK ASSY.

stripped, engine, no longer available, order J920387 short block assembly or 1989092C2 basic engine shown above

1шт.

Order J920399 hardware kit when ordering J920387 block assembly or J916254 stripped block.

1шт.

2

J900967

BEARING CAP

CAP main

5шт.

3

J900068

BEARING WASHER

RING dowel, main bearing cap to block, 18 mm O.D.

10шт.

4

J904217

BOLT,Hex, M14 x 2 x 119mm, Cl 12.9

main bearing cap, special

10шт.

5

REF

INSTRUCTION

BUSHING camshaft front, see Figure 2-40, Ref. 2

1шт.

6

A77782

PLUG

expansion, 58 mm O.D.

1шт.

7

J900956

PLUG

expansion, 18 mm O.D.

3шт.

8

41-1616

PLUG,Cup, 1", Stainless

Expansion

2шт.

J920399

PACKAGE, REPAIR

KIT block hardware

1шт.

Order J920399 hardware kit when ordering J920387 block assembly or J916254 stripped block.

1шт.

9

J900958

PLUG

expansion, 32 mm O.D.

2шт.

10

J900955

PLUG

expansion, 10 mm O.D.

1шт.

11

172599

PLUG,Exp, 2 3/8"

expansion, welch, 60 mm O.D.

1шт.

12

J920706

PLUG

expansion, 22 mm O.D., not used in this application, Ref. 19, J903744 turbocharger oil drain tube is installed in this port

1шт.

13

J900257

PIN,10.01mm OD x 16mm L

dowel, locating, 16 mm long

2шт.

14

J902343

DOWEL

RING, 16 mm O.D.

2шт.

15

J900068

BEARING WASHER

RING dowel, 18 mm O.D

2шт.

16

J906619

PLUG,1/8" - 27

hex, 1/8" PT

2шт.

17

A77429

PLUG

hex socket, 1/2" PT

1шт.

18

J919002

NOZZLE CAP

piston cooling

4шт.

19

J903744

PIPE FITTING,22.42 mm ID x 28 mm OD x 90.2, 64 mm L

turbocharger oil drain

1шт.

20

J900267

SEAL

cover bolt

4шт.

21

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

22

J925680

COVER

tappet

1шт.

23

J928831

GASKET

tappet cover, Replaces: J922078

1шт.

24

J907586

BAFFLE

tappet cover

1шт.

25

J934877

HYD CONNECTOR

water inlet, Replaces: J903102

1шт.

26

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

O-RING, 50 mm ID

1шт.

27

854-10075

BOLT,Hvy Hex, M10 x 75mm, Cl 10.9

Heavy

3шт.

28

A77429

PLUG

hex socket, 1/2" PT

2шт.

29

J918612

TUBE,360.00 mm

Breather

1шт.

30

J904230

CLAMP,25.4mm

spring, hose

1шт.

31

J909670

CLIP

retaining

1шт.

196803A1

KIT

engine block heater, Replaces: A77634

1шт.

32

NSS

NOT SOLD SEPARAT

ELEMENT engine block heater, 120 volt

1шт.

33

196466A1

ELECTRIC CABLE

engine block heater, Replaces: J905113

1шт.

34

J910517

O-RING

heater sealing, engine block

1шт.
