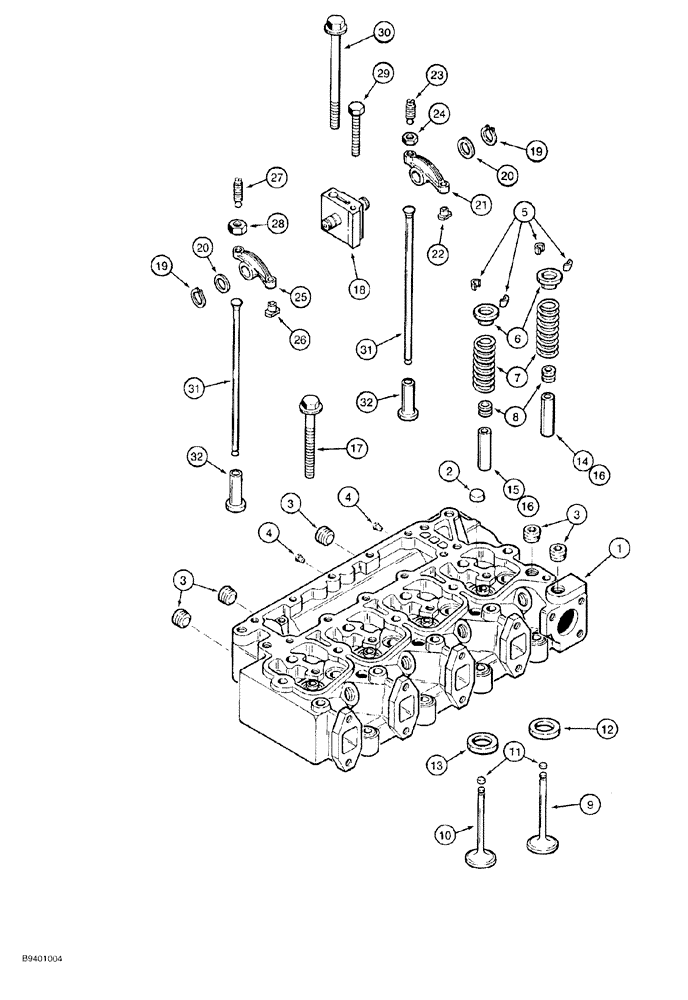

Запчасти Case 550G (2-39A) - CYLINDER HEAD AND VALVE MECHANISM, 4-390 EMISSIONS CERTIFIED ENGINE, P.I.N. JJG0255794 AND AFTER (01) - ENGINE

JR933494

REMAN-CYLINDER HEAD

ASSY., North America only, component parts shown in this figure do not apply to the remanufactured assembly, Includes: Ref. 1 - 10

1шт.

JC933494

CORE-CYLINDER HEAD

RETURN NUMBER, use this part number to return head for credit when using a remanufactured assembly, Includes: Ref. 1 - 10

1шт.

1

J933494

HEAD (CYLINDER)

ASSY. new, with valves, Includes: Ref. 1 - 10

1шт.

1

J920005

HEAD (CYLINDER)

ASSY. new, without valves, no longer used, order J933419 shown below

1шт.

1

J933419

HEAD (CYLINDER)

ASSY. new, without valves, Replaces: J920005, Includes: Ref. 2

1шт.

2

A77783

PLUG

expansion, 21 mm O.D.

3шт.

3

217-466

DRAIN PLUG,Sq Soc, 1/2" - 14, NTPF

One removed to install temperature sending unit

5шт.

4

J906619

PLUG,1/8" - 27

hex, 1/8" PT

2шт.

5

J900250

SCREW

KEEPER valve

16шт.

6

J900299

RETAINER

valve spring, no longer used, order J935038 shown below

8шт.

6

J935038

RETAINER

valve spring, Replaces: J900299

8шт.

7

J932453

SPRING

valve

8шт.

8

J901097

SEAL

valve, no longer used, order J921640 shown below

4шт.

8a

J921640

SEAL

valve, Replaces: J901097

4-8шт.

9

J920867

VALVE

intake

4шт.

10

J920868

VALVE

exhaust

4шт.

11

J280911

WEAR PAD

service repair only for valve stem tip, for use on intake and exhaust valves

1шт.

12

J906854

SEAT, VALVE

insert, intake, service repair only

4шт.

13

J904105

SEAT, VALVE

insert, exhaust, service repair only

4шт.

14

J904408

GUIDE

valve, intake, service repair only, 14 mm O.D.

4шт.

This part is semi-finished.

1шт.

15

J904409

GUIDE

valve, exhaust, service repair only, 14 mm O.D.

4шт.

This part is semi-finished.

1шт.

16

J906206

GUIDE

valve, intake and exhaust, service repair only, 11 mm O.D.

8шт.

This part is semi-finished.

1шт.

17

J920779

BOLT,Flng, M12 x 1.75 x 70mm, Cl 12.9

Cylinder head, 70 mm long

4шт.

17

J920780

BOLT,Flng, M12 x 1.75 x 120mm, Cl 12.9

Cylinder head, 120 mm long

10шт.

18

J922488

SUPPORT

SHAFT ASSY. rocker arm

4шт.

19

J900242

SNAP RING

retaining, rocker arm

8шт.

20

J900245

WASHER

thrust, rocker arm

8шт.

21

J910811

ROCKER

ARM ASSY. intake, Includes: Ref. 22 - 24

4шт.

22

NSS

NOT SOLD SEPARAT

INSERT rocker arm

1шт.

23

J937438

ADJUSTMENT SCREW,Hex Skt, 3/8" - 24 x 33mm, Adj, Ball Point

slotted set, adjusting, special

1шт.

24

A77902

NUT

hex, 3/8" NF, Replaces: 425-116

1шт.

25

J910810

ROCKER

ARM ASSY. exhaust, Includes: Ref. 26 - 28

4шт.

26

NSS

NOT SOLD SEPARAT

INSERT rocker arm

1шт.

27

J937438

ADJUSTMENT SCREW,Hex Skt, 3/8" - 24 x 33mm, Adj, Ball Point

slotted set, adjusting, special

1шт.

28

A77902

NUT

hex, 3/8" NF, Replaces: 425-116

1шт.

29

814-8075

BOLT,Hex, M8 x 1.25 x 75mm, Cl 8.8

4шт.

30

J920781

BOLT,Flng, M12 x 1.75 x 180mm, Cl 12.9

Rocker arm and cylinder head, 180 mm long

4шт.

31

J284377

PUSH ROD

rocker arm, Replaces: J923262

8шт.

32

J931623

TAPPET

valve, push rod

8шт.
