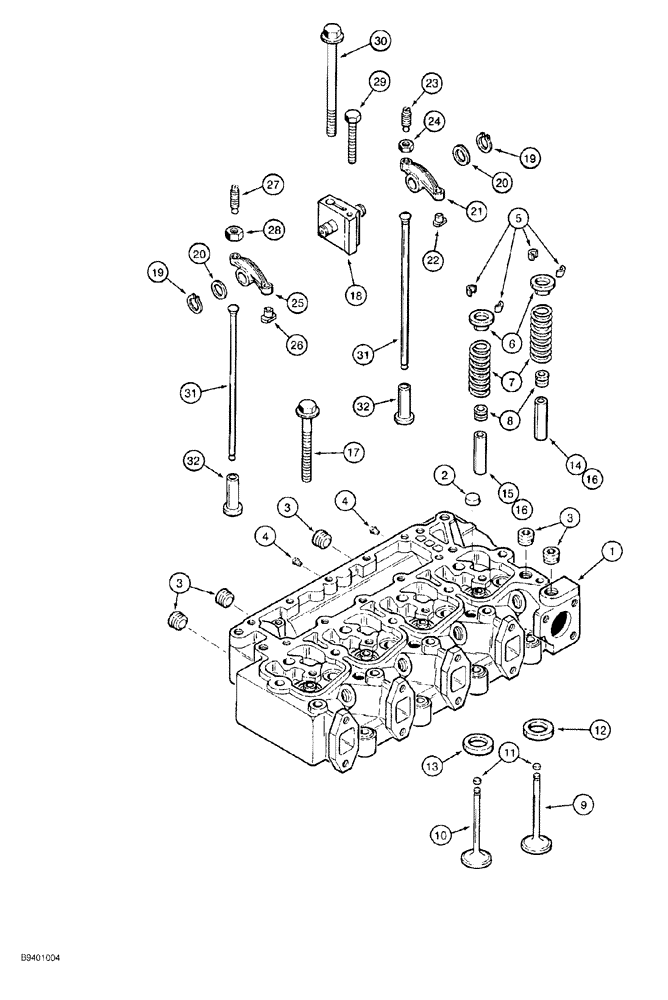

Запчасти Case 550G (2-38) - CYLINDER HEAD AND VALVE MECHANISM, 4-390 AND 4T-390 ENGINE, PRIOR TO P.I.N. JJG0255794 (01) - ENGINE

JR929736

REMAN-CYLINDER HEAD

ASSY., North America only, component parts shown in this figure do not apply to the remanufactured assembly, Includes: Ref. 1 - 10

1шт.

JC929736

CORE-CYLINDER HEAD

RETURN NUMBER, use this part number to return head for credit when using a remanufactured assembly, Includes: Ref. 1 - 10

1шт.

1

J929736

HEAD (CYLINDER)

ASSY. new, with valves, Includes: Ref. 1 - 10

1шт.

1

J920005

HEAD (CYLINDER)

ASSY. new, without valves, no longer used, order J933419

1шт.

1

J933419

HEAD (CYLINDER)

ASSY. new, without valves, Replaces: J920005, Includes: Ref. 2

1шт.

2

A77783

PLUG

expansion, 21 mm O.D.

3шт.

3

A77429

PLUG

hex socket, 1/2" PT, (1) removed to install temperature sending unit

5шт.

4

J906619

PLUG,1/8" - 27

hex, 1/8" PT

2шт.

5

CASJ900250

RETAINER

KEEPER valve

16шт.

6

J900299

RETAINER

valve spring, no longer used, order J935038 shown below

8шт.

6

J935038

RETAINER

valve spring, Replaces: J900299

8шт.

7

J926700

VALVE SPRING

8шт.

8

J901097

SEAL

valve, no longer used, order J921640 shown below

8шт.

8

J921640

SEAL

valve, Replaces: J901097

8шт.

9

J920867

VALVE

intake

4шт.

10

J920868

VALVE

exhaust

4шт.

11

J280911

WEAR PAD

for use on intake and exhaust valves

1шт.

12

J906854

SEAT, VALVE

insert, intake, service repair only

4шт.

13

J904105

SEAT, VALVE

insert, exhaust, service repair only

4шт.

14

J904408

GUIDE

valve, intake, service repair only, 14 mm O.D.

4шт.

This part is semi-finished.

1шт.

15

J904409

GUIDE

valve, exhaust, service repair only, 14 mm O.D.

4шт.

This part is semi-finished.

1шт.

16

J906206

GUIDE

valve, intake and exhaust, service repair only, 11 mm O.D.

8шт.

This part is semi-finished.

1шт.

17

J920779

BOLT,Flng, M12 x 1.75 x 70mm, Cl 12.9

Cylinder head, 70 mm long

4шт.

17

J920780

BOLT,Flng, M12 x 1.75 x 120mm, Cl 12.9

Cylinder head, 120 mm long

10шт.

18

J922488

SUPPORT

SHAFT ASSY. rocker arm

4шт.

19

J900242

SNAP RING

retaining, rocker arm

8шт.

20

J900245

WASHER

thrust, rocker arm

8шт.

21

J910811

ROCKER

ARM ASSY. intake, Includes: Ref. 22 - 24

4шт.

22

NSS

NOT SOLD SEPARAT

INSERT rocker arm

1шт.

23

J937438

ADJUSTMENT SCREW,Hex Skt, 3/8" - 24 x 33mm, Adj, Ball Point

slotted set, adjusting, special

1шт.

24

425-116

NUT,3/8" - 24, Gr 5

Hex

1шт.

25

J910810

ROCKER

ARM ASSY. exhaust, Includes: Ref. 26 - 28

4шт.

26

NSS

NOT SOLD SEPARAT

INSERT rocker arm

1шт.

27

J937438

ADJUSTMENT SCREW,Hex Skt, 3/8" - 24 x 33mm, Adj, Ball Point

slotted set, adjusting, special

1шт.

28

425-116

NUT,3/8" - 24, Gr 5

Hex

1шт.

29

814-8075

BOLT,Hex, M8 x 1.25 x 75mm, Cl 8.8

4шт.

30

J920781

BOLT,Flng, M12 x 1.75 x 180mm, Cl 12.9

Rocker arm and cylinder head, 180 mm long

4шт.

31

J284377

PUSH ROD

rocker arm, Replaces: J923262

8шт.

32

J931623

TAPPET

valve, push rod, order J925031 until depleted

8шт.
