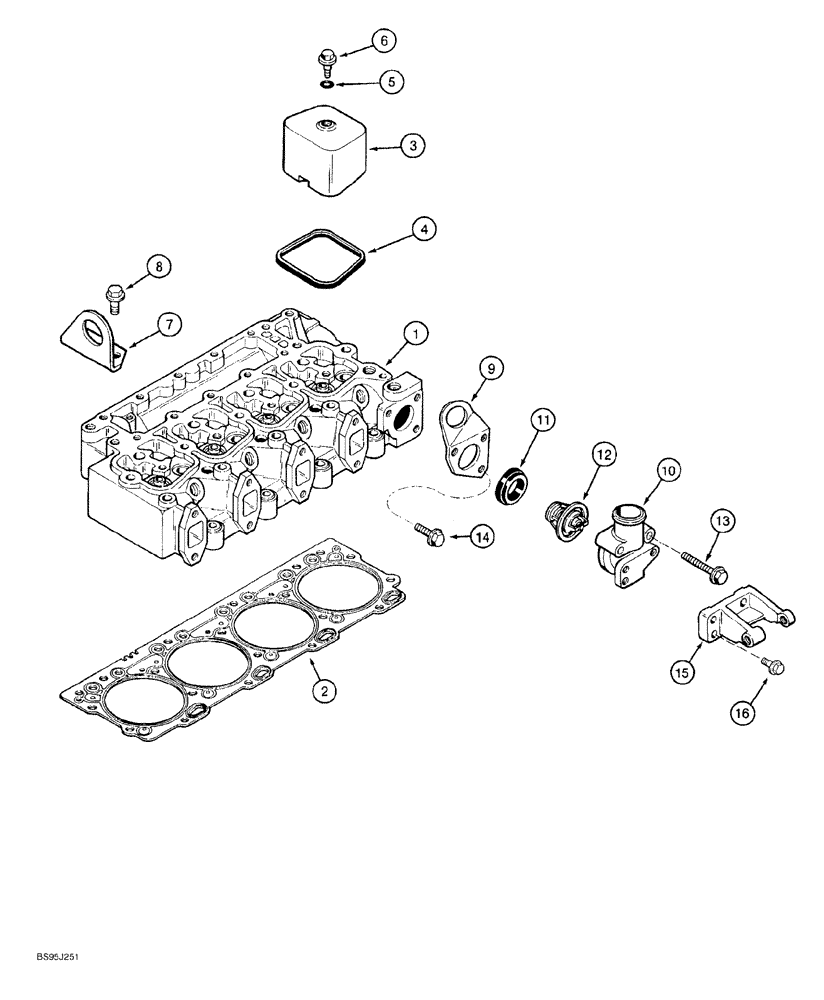

Запчасти Case 550G (2-36) - CYLINDER HEAD AND COVERS, 4-390 AND 4T-390 ENGINE, PRIOR TO P.I.N. JJG0255794 (01) - ENGINE

1

REF

INSTRUCTION

HEAD ASSY. cylinder, engine, parts list Figure 2-38

1шт.

2

J282999

GASKET

head, standard, Replaces: J921393

1шт.

2

J921395

CYLINDER HEAD GASKET

head, 2 notches, 0.25 mm thicker

1шт.

2

J921397

GASKET

head, 3 notches, 0.50 mm thicker

1шт.

3

J902604

COVER

rocker arm

4шт.

4

J902666

GASKET

SEAL rocker arm cover

4шт.

5

J910824

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

cover bolt

4шт.

6

J907049

BOLT,Hex

hex flange, special, 8 - 1.25 x 21.25 mm

4шт.

7

J908118

BRACKET

lifting, rear

1шт.

8

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

Heavy

2шт.

9

J903757

BRACKET

lifting, front, thermostat and housing

1шт.

10

J914409

HOUSING

thermostat and housing

1шт.

A77736

THERMOSTAT

coolant thermostat, housing, Includes: Ref. 11 and 12

1шт.

11

J923331

GASKET

thermostat housing

1шт.

12

NSS

NOT SOLD SEPARAT

THERMOSTAT coolant, housing

1шт.

13

845-8070

BOLT,Hvy Hex, M8 x 70mm, Cl 8.8

Thermostat and housing

2шт.

14

845-8035

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

Thermostat and housing

1шт.

15

J923387

SUPPORT

alternator mounting, thermostat and housing

1шт.

16

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

Thermostat and housing

3шт.
