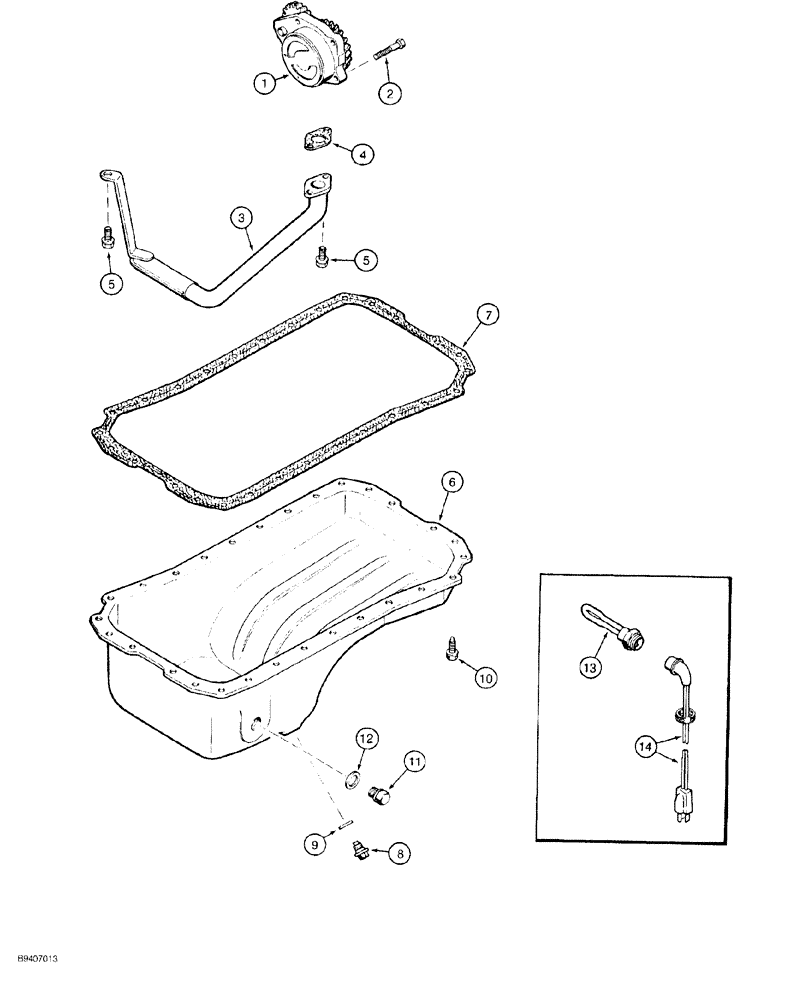

Запчасти Case 550G (2-35A) - OIL PUMP & OIL PAN, 4-390 AND 4T-390 EMISSIONS CERTIFIED ENGINE CRAWLER P.I.N. JJG0255794 & AFTER (01) - ENGINE

1

J932449

PUMP, ENGINE OIL

new, used on 4-390 engine

1шт.

1

JR937028

REMAN-ENG OIL PUMP

550G Long Track (2/95), Reman For New P/N J932449

1шт.

1

JC937028

CORE-ENGINE OIL PUMP

Return Number

1шт.

1

J930336

PUMP, ENGINE OIL

new, used on 4T-390 engine

1шт.

1

JR930336

REMAN-ENG OIL PUMP

Remanufactured Oil Pump; 4T-390 engine

1шт.

1

JC926202

CORE-ENGINE OIL PUMP

Return Number, 4T-390 engine

1шт.

2

J900677

BOLT,Hex

hex, full threads, oil pan, 8 - 1.25 x 30 mm

4шт.

3

J920795

TUBE,1 mm OD x 265.7 mm L

suction, oil, Replaces: J905206

1шт.

4

J931349

GASKET

mounting, oil suction tube

1шт.

Part of Oil Pan Gasket Kit P/N A77673

1шт.

5

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

3шт.

6

J901049

PAN, ENGINE OIL

PAN, OIL

1шт.

7

NSS

NOT SOLD SEPARAT

GASKET oil pan, order A77673 kit for service, shown below

1шт.

Part of Oil Pan Gasket Kit P/N A77673

1шт.

8

J924147

PLUG,M18 x 1.5

drain, oil, hex magnetic, special, 18 mm - 1.5

1шт.

9

J920773

SEALING WASHER

WASHER sealing, drain plug

1шт.

Part of Oil Pan Gasket Kit P/N A77673

1шт.

10

J920400

FLANGE BOLT,Hex, M8 x 1.25 x 21mm, Gr 8.8

8 - 1.25 x 25 mm

28шт.

11

J924148

PLUG,M22 x 1.5

pipe, heater hole, hex magnetic, special, 22 mm - 1.5

1шт.

12

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

sealing, plug

1шт.

Part of Oil Pan Gasket Kit P/N A77673

1шт.

A77673

GASKET KIT

oil pan, Includes: Ref. 4, 7, 9 and 12

1шт.

A77490

KIT

heater, engine oil, Includes: Ref. 13 and 14

1шт.

When engine oil heater kit is ordered, Ref. 12 P/N J902425 washer must also be ordered.

1шт.

13

NSS

NOT SOLD SEPARAT

ELEMENT heater, 120 volt, engine oil

1шт.

14

196466A1

ELECTRIC CABLE

engine block heater, oil, Replaces: J905113

1шт.
