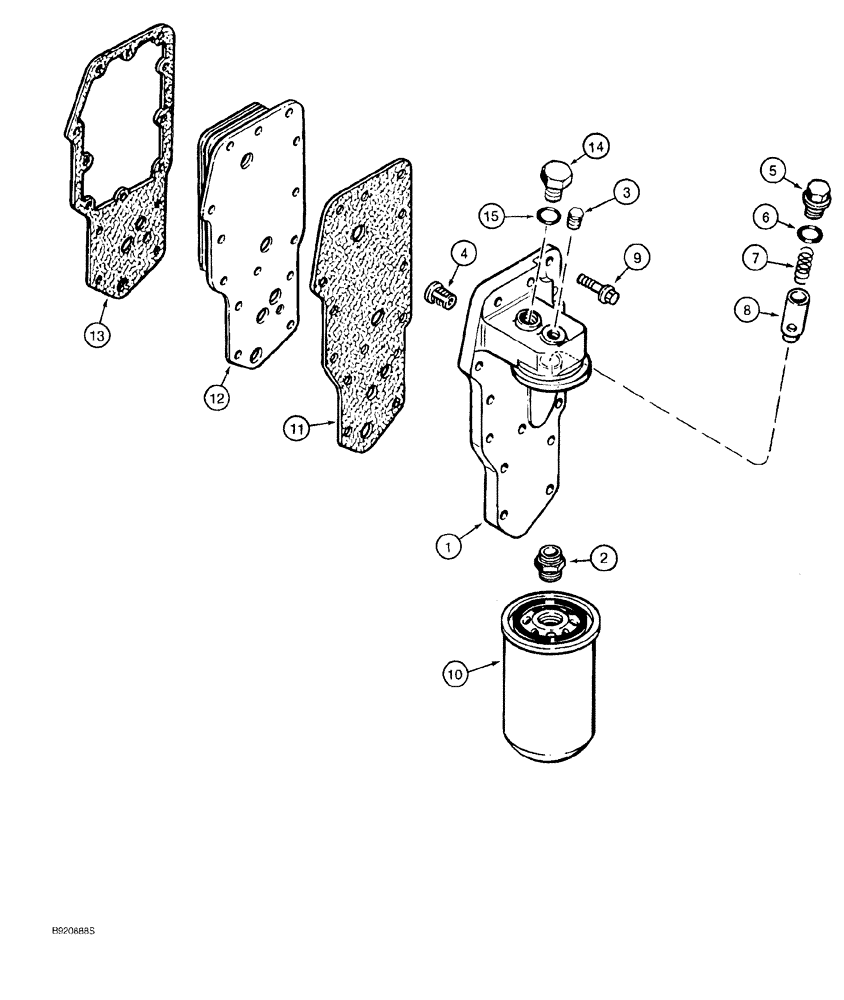

Запчасти Case 550G (2-32) - OIL FILTER AND COOLER, 4-390 AND 4T-390 ENGINE, PRIOR TO CRAWLER P.I.N. JJG0255794 (01) - ENGINE

J918954

HEAD

ASSY. oil filter and cooler, Includes: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

HEAD lube oil filter

1шт.

2

J909355

ADAPTER

filter head

1шт.

3

J906619

PLUG,1/8" - 27

hex, 1/8" PT

1шт.

4

J933615

VALVE

relief, pressure, Replaces: J927622 and J902338

1шт.

5

J915787

PLUG

threaded, pipe

1шт.

6

J929457

O-RING

plug, Replaces: J909397

1шт.

7

J918427

SPRING

compression, 54 mm free length

1шт.

8

J918428

PLUNGER

regulator, pressure

1шт.

9

845-8035

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

14шт.

10

J908616

ENGINE OIL FILTER,Single pkg qty. For multi pkg [qty.12] order J908616MP

engine oil, cartridge, if used

1шт.

10

J934429

ENGINE OIL FILTER

engine oil, cartridge, premium oil filter, if used

1шт.

11

J929792

GASKET,1.2mm Thk

filter head, Replaces: J918257

1шт.

12

J921557

COOLER

CORE oil

1шт.

13

J942914

GASKET

oil cooler core, Replaces: J926760

1шт.

14

J919686

PLUG

ASSY. hex, 12 mm threaded, used on engines without a turbocharger, Includes: Ref. 15

1шт.

15

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

1шт.
