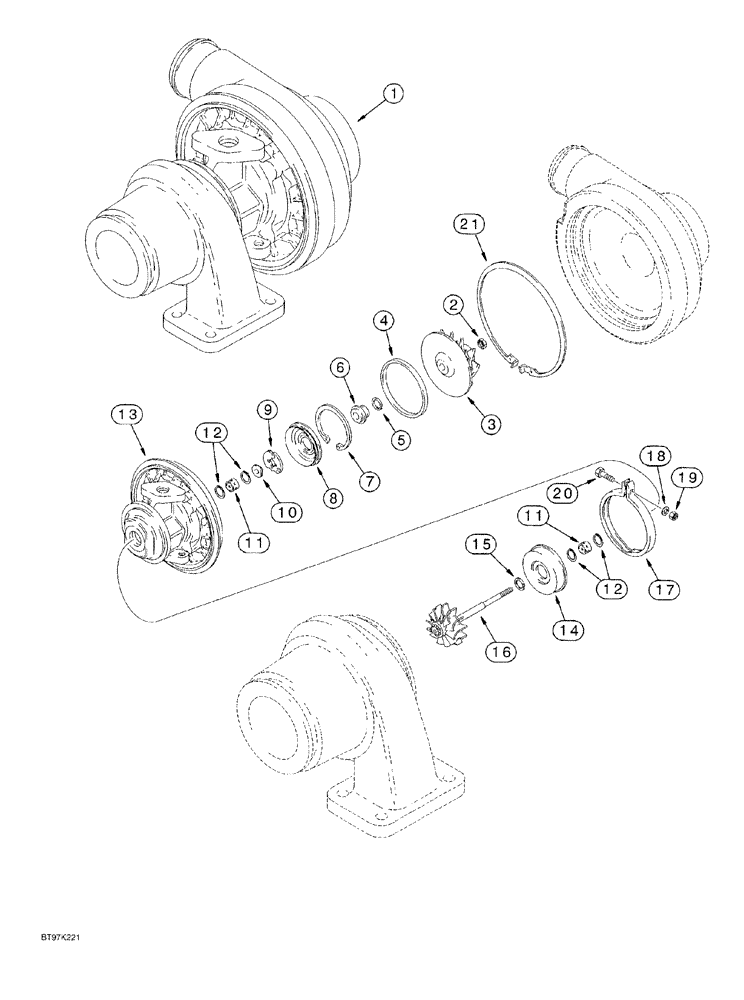

Запчасти Case 550G (2-31A) - TURBOCHARGER ASSEMBLY, 4T-390 EMISSIONS CERTIFIED ENGINE CRAWLER P.I.N. JJG0255794 AND AFTER (01) - ENGINE

J802908

TURBOCHARGER

KIT large frame, includes new turbocharger assembly, (1 ) J519807 turbo oil drain tube gasket and (1) J709861 turbocharger mounting gasket, not illustrated, Includes: Ref. 1 - 21

1шт.

JR802908

REMAN-TURBOCHARGER

Kit Engine, component parts shown in this figure do not apply to the remanufactured assembly, Includes: Ref. 1 - 21

1шт.

JC537886

CORE-TURBOCHARGER

Return Part Number, use this part number to return turbocharger core for credit when using a remanufactured assembly, Includes: Ref. 1 - 21

1шт.

1

J580234

HOUSING ASSY.

center, turbocharger, Includes: Ref. 2 - 16

1шт.

2

NSS

NOT SOLD SEPARAT

NUT lock, hex

1шт.

Part of Turbocharger Overhaul Kit P/N J575205

1шт.

3

NSS

NOT SOLD SEPARAT

IMPELLER turbocharger

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL plate

1шт.

5

NSS

NOT SOLD SEPARAT

SEAL slit ring

1шт.

Part of Turbocharger Overhaul Kit P/N J575205

1шт.

6

NSS

NOT SOLD SEPARAT

SLINGER oil

1шт.

7

NSS

NOT SOLD SEPARAT

RING snap

1шт.

Part of Turbocharger Overhaul Kit P/N J575205

1шт.

8

NSS

NOT SOLD SEPARAT

BAFFLE oil

1шт.

Part of Turbocharger Overhaul Kit P/N J575205

1шт.

9

NSS

NOT SOLD SEPARAT

BEARING turbocharger thrust

1шт.

Part of Turbocharger Overhaul Kit P/N J575205

1шт.

10

NSS

NOT SOLD SEPARAT

COLLAR thrust

1шт.

11

NSS

NOT SOLD SEPARAT

BEARING turbocharger

2шт.

Part of Turbocharger Overhaul Kit P/N J575205

1шт.

12

NSS

NOT SOLD SEPARAT

RING retaining

4шт.

Part of Turbocharger Overhaul Kit P/N J575205

1шт.

13

NSS

NOT SOLD SEPARAT

HOUSING turbo bearing

1шт.

14

NSS

NOT SOLD SEPARAT

SHIELD turbo heat

1шт.

15

NSS

NOT SOLD SEPARAT

SEAL split ring

1шт.

Part of Turbocharger Overhaul Kit P/N J575205

1шт.

15a

NSS

NOT SOLD SEPARAT

SEAL oil, not illustrated

1шт.

Part of Turbocharger Overhaul Kit P/N J575205

1шт.

16

NSS

NOT SOLD SEPARAT

ROTOR ASSY., with shaft

1шт.

17

J531670

CLIP

CLAMP adjustable

1шт.

18

J535971

WASHER

flat, special

1шт.

19

J531582

NUT

hex

1шт.

Part of Turbocharger Overhaul Kit P/N J575205

1шт.

20

J531598

BOLT,Hex, M6 x 1 x 35, Stainless

BOLT hex

1шт.

Part of Turbocharger Overhaul Kit P/N J575205

1шт.

21

J535800

RING, SNAP

RING SNAP

1шт.

J575205

PACKAGE, REPAIR

KIT overhaul, turbocharger, Includes: Ref. 2, 5, 7, 8, 9, 11, 12, 15, 15A, 19 and 20

1шт.
