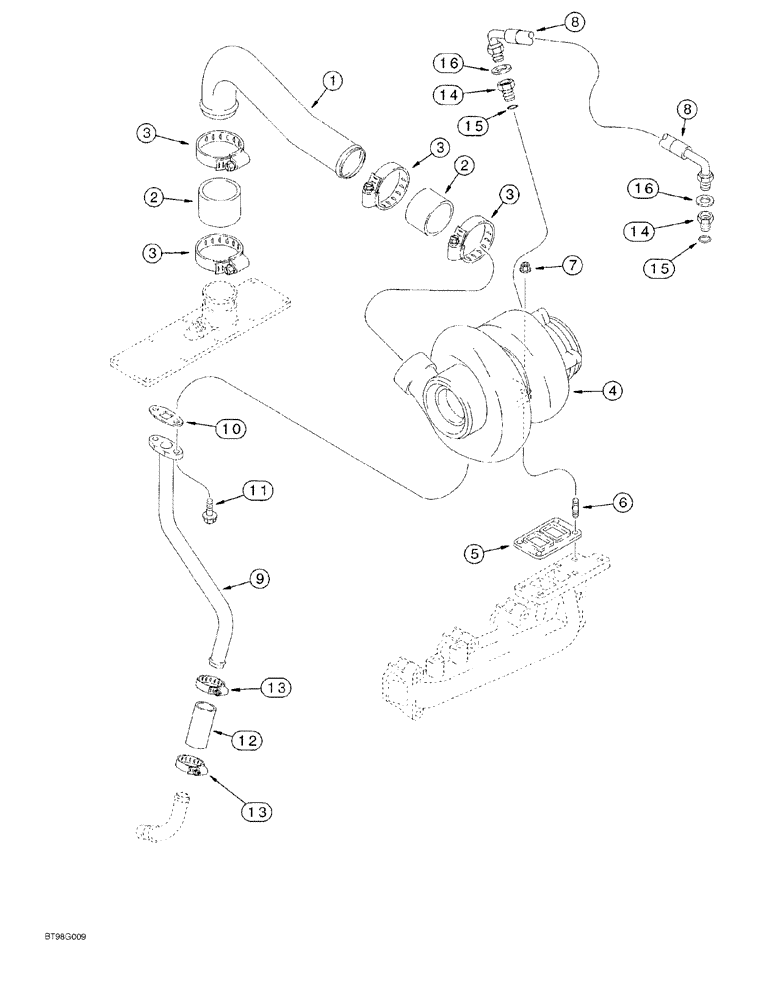

Запчасти Case 550G (2-29A) - TURBOCHARGER SYSTEM, 4T-390 EMISSIONS CERTIFIED ENGINE CRAWLER P.I.N. JJG0255794 AND AFTER (01) - ENGINE

1

J931811

TUBE,50.8 mm OD x 291.87 mm L

crossover

1шт.

2

J916166

INTAKE AIR HOSE

air intake, 71 mm (2-3/4") long

2шт.

3

214-3240

HOSE CLAMP,1-3/4" - 2-5/8", HD Worm, W/ Liner

Adj.

4шт.

4

REF

INSTRUCTION

TURBOCHARGER ASSY. engine, new, see Figure 2-31A for correct assembly and component parts

1шт.

5

J919369

GASKET,0.5mm Thk

, Serial Range: turbocharger-manifold

1шт.

6

J818823

STUD

turbocharger mounting

1шт.

7

J818824

FLANGE NUT

hex flange, special, stud, 10 mm - 1.5

4шт.

8

J913759

HOSE

Turbocharger Oil Supply

1шт.

9

J934064

TUBE,22.22 mm OD x 393, 131 mm L

turbocharger oil drain

1шт.

10

J931350

GASKET

turbo oil drain tube

1шт.

11

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

12

J931970

HOSE,22.22 mm ID x 76.20 mm

Turbocharger Oil Drain

1шт.

13

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

Adjustable

2шт.

14

J919687

HYD CONNECTOR

ADAPTER female hex, special, (1 ) used to connect turbocharger oil supply hose to turbocharger, (1) used to connect turbocharger oil supply hose to J918954 oil filter head

2шт.

15

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

1шт.

16

222-993

GASKET,3/8 Tube, Fl, Copper

2шт.
