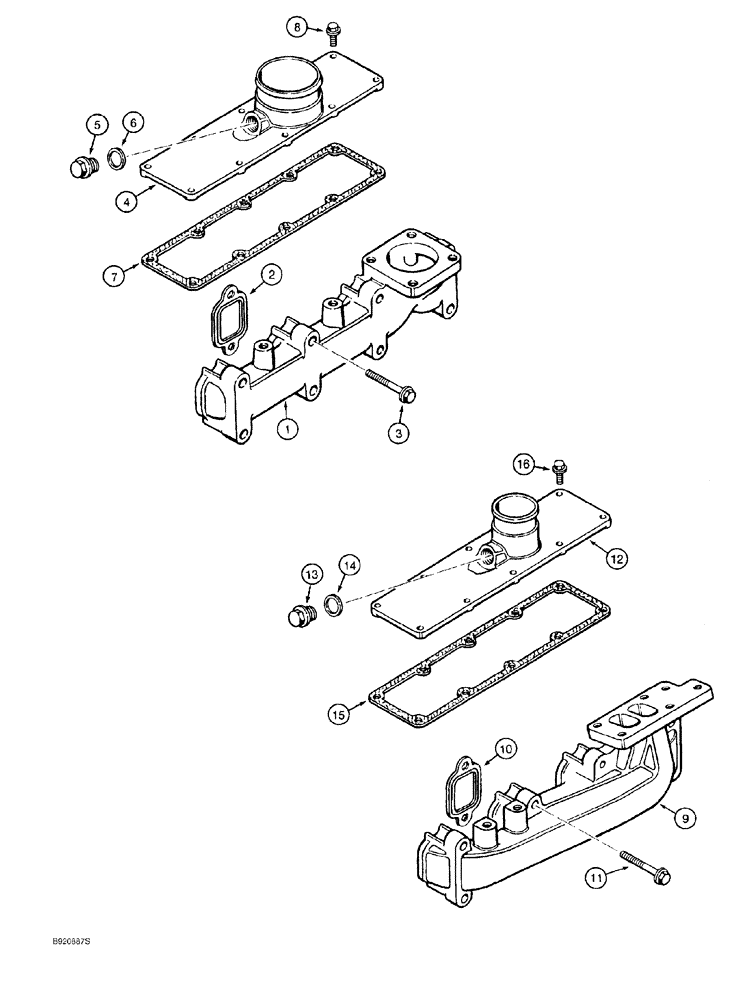

Запчасти Case 550G (2-26) - MANIFOLDS, EXHAUST AND INTAKE, 4-390 AND 4T-390 ENGINE, PRIOR TO CRAWLER P.I.N. JJG0255794 AND AFTER (01) - ENGINE

1

J901223

MANIFOLD

exhaust, naturally aspirated

1шт.

2

J905443

MANIFOLD GASKET

exhaust manifold

4шт.

3

J930249

FLANGE BOLT,Hex, M10 x 1.5 x 65mm

heavy hex flange, 10 - 1.50 x 65 mm, class 10.9, Replaces: 854-10065

8шт.

A77415

COVER

KIT intake manifold, naturally aspirated, no longer available, order Ref. 4 - 6

1шт.

4

J904340

COVER

intake

1шт.

5

J907185

PLUG

manifold, remove to install cold start

1шт.

6

J906773

WASHER

plug sealing

1шт.

7

J938153

MANIFOLD GASKET,0.8mm Thk

intake manifold, Replaces: J914028

1шт.

8

J918109

FLANGE BOLT,Hex, M8 x 1.25 x 25mm

Special

10шт.

9

J901919

MANIFOLD

exhaust, turbocharged

1шт.

10

J905443

MANIFOLD GASKET

exhaust manifold

4шт.

11

J930249

FLANGE BOLT,Hex, M10 x 1.5 x 65mm

heavy hex flange, 10 - 1.50 x 65 mm, class 10.9, Replaces: 854-10065

8шт.

A77416

COVER

KIT intake manifold, turbocharged, no longer available, order Ref. 12 -14, 4T-390 engine

1шт.

12

J904339

COVER

intake, 4T-390 engine

1шт.

13

J907185

PLUG

manifold, remove to install cold start, intake, 4T-390 engine

1шт.

14

J906773

WASHER

plug sealing, intake, 4T-390 engine

1шт.

15

J938153

MANIFOLD GASKET,0.8mm Thk

intake manifold, 4T-390 engine, Replaces: J914028

1шт.

16

J918109

FLANGE BOLT,Hex, M8 x 1.25 x 25mm

Special, Intake, 4T-390 engine

10шт.
