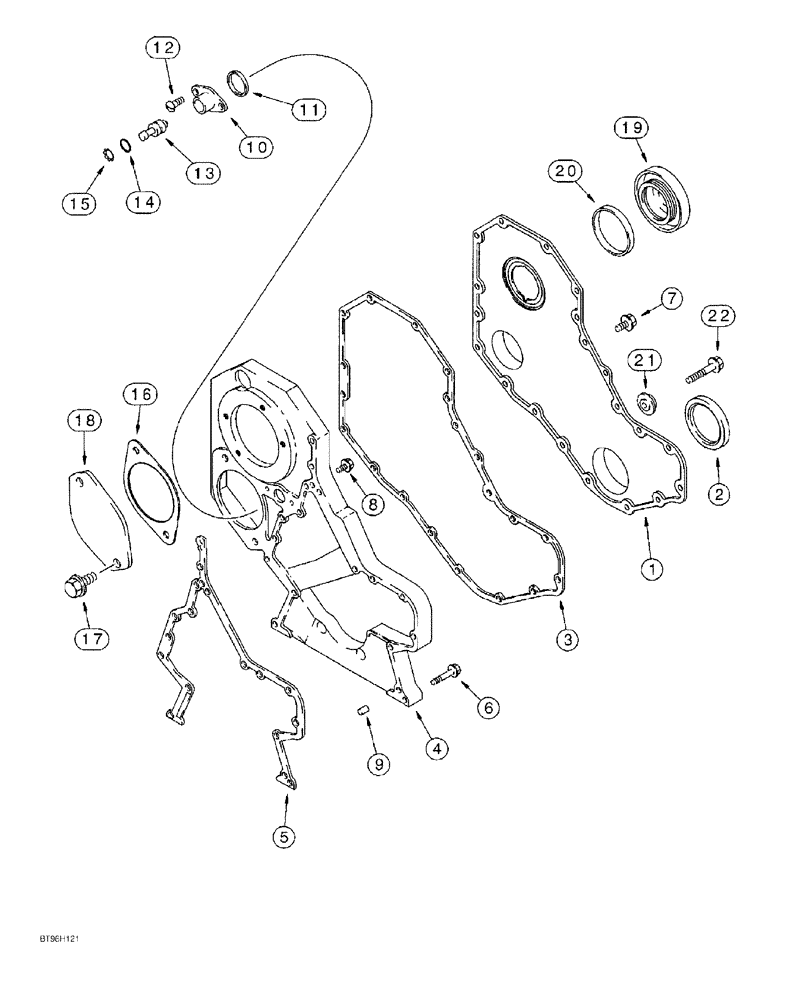

Запчасти Case 550G (2-25A) - FRONT GEAR COVER, 4-390 AND 4T-390 EMISSIONS CERTIFIED ENGINE CRAWLER P.I.N. JJG0255794 AND AFTER (01) - ENGINE

1

J918675

COVER

gear, front

1шт.

2

NSS

NOT SOLD SEPARAT

SEAL oil, crankcase front, order A77889 kit, see Figure 2-50, Ref. 13 and 14

1шт.

3

J918673

GASKET,1.02mm Thk

front cover

1шт.

4

J932120

HOUSING

timing gear

1шт.

5

J931351

GASKET

gear housing

1шт.

6

845-8050

BOLT,Hvy Hex, M8 x 50mm, Cl 8.8

10шт.

7

J924962

FLANGE BOLT

hex flange, special, 8 - 1.25 x 16 mm, external, retains Ref. 1 to Ref. 4

8шт.

8

J924962

FLANGE BOLT

hex flange, special, 8 - 1.25 x 16 mm, internal, retains Ref., Serial Range: 4-block

5шт.

9

J900257

PIN,10.01mm OD x 16mm L

dowel, locating, 16 mm long

2шт.

10

J919683

HOUSING

timing pin

1шт.

11

J915772

SEAL,Square, 1.68mm Thk x 29.87mm ID, -25

SEALRING Quad, timing pin housing

1шт.

12

J907998

SCREW,M5 x 0.8 x 17mm, Cl 8.8

2шт.

13

J903924

PIN,18.87mm OD x 55mm L

timing

1шт.

14

J913994

O-RING

sealing

1шт.

15

100-2587

SNAP RING,0.875", Int, #87

Timing pin (Replaces J904849)

1шт.

16

J929751

GASKET

access cover plate

1шт.

17

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

Heavy

2шт.

18

J914868

COVER

PLATE access, flat

1шт.

19

J903463

PLUG,M63 x 5

front access, fuel pump drive gear

1шт.

20

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

front access cover, fuel pump drive gear

1шт.

21

J912772

RETAINER

bolt

1шт.

22

845-8060

BOLT,Hvy Hex, M8 x 60mm, Cl 8.8

1шт.
