Запчасти Case 550G (2-24) - FRONT GEAR COVER, 4-390 AND 4T-390 ENGINE, PRIOR TO CRAWLER P.I.N. JJG0255794 (01) - ENGINE

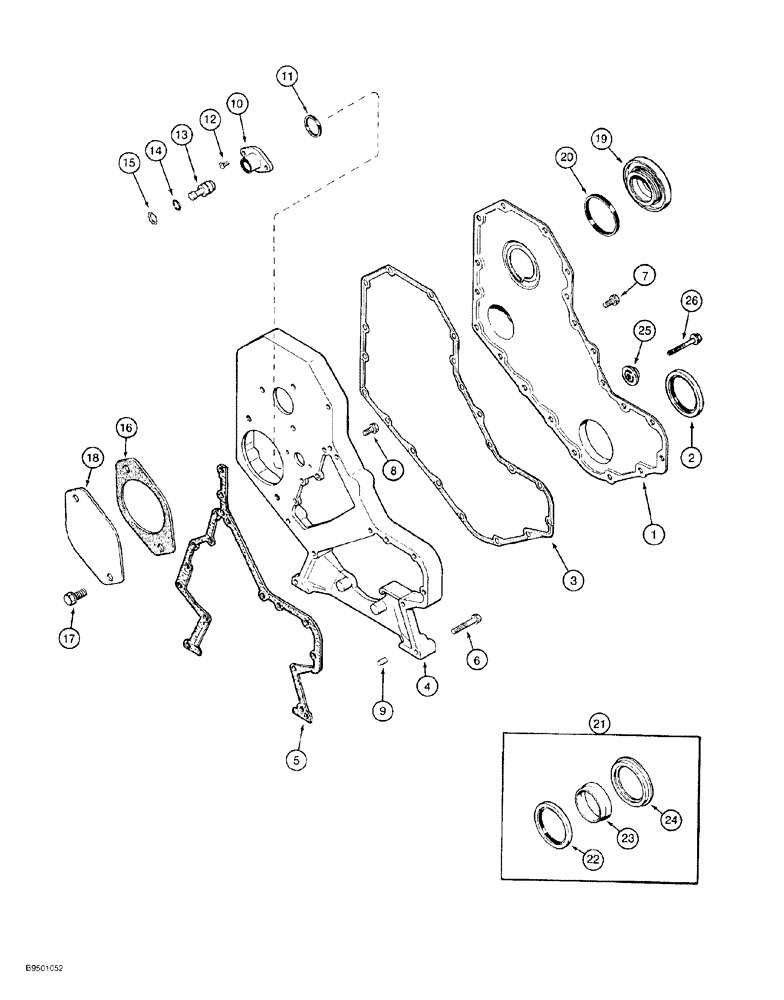

Схема запчастей Case 550G - (2-24) - FRONT GEAR COVER, 4-390 AND 4T-390 ENGINE, PRIOR TO CRAWLER P.I.N. JJG0255794 (01) - ENGINE
4
3
10
18
24
15
1
6
19
23
22
25
20
16
5
14
8
12
9
17
13
11
7
21
2
26

Артикул

Название

Примечание

Количество

1

J903794

COVER

gear, front

1шт.

2

NSS

NOT SOLD SEPARAT

SEAL oil, crankcase front, order Ref. 21, J904353 kit

1шт.

3

J914385

GASKET,1.02mm Thk

front cover

1шт.

4

J920758

HOUSING

timing gear

1шт.

5

J916131

GASKET

gear housing

1шт.

6

845-8050

BOLT,Hvy Hex, M8 x 50mm, Cl 8.8

10шт.

7

J924962

FLANGE BOLT

hex flange, special, 8 - 1.25 x 16 mm, external, retains Ref. 1 to Ref. 4

11шт.

8

J924962

FLANGE BOLT

hex flange, special, 8 - 1.25 x 16 mm, internal, retains Ref., Serial Range: 4-block

5шт.

9

J900257

PIN,10.01mm OD x 16mm L

dowel, locating, 16 mm long

2шт.

10

J919683

HOUSING

timing pin

1шт.

11

J915772

SEAL,Square, 1.68mm Thk x 29.87mm ID, -25

SEALRING Quad, timing pin housing

1шт.

12

J907998

SCREW,M5 x 0.8 x 17mm, Cl 8.8

2шт.

13

J903924

PIN,18.87mm OD x 55mm L

timing

1шт.

14

J913994

O-RING

sealing

1шт.

15

J904849

SNAP RING,0.875", Int, #87

Timing pin

1шт.

16

J931608

GASKET

access cover plate, Replaces: J919601

2шт.

17

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

Heavy

2шт.

18

J914868

COVER

PLATE access, flat

1шт.

19

J903463

PLUG,M63 x 5

front access, fuel pump drive gear

1шт.

20

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

front access cover, fuel pump drive gear

1шт.

21

J904353

GASKET KIT

oil seal, crankshaft front, Includes: Ref. 22 - 24

1шт.

22

NSS

NOT SOLD SEPARAT

SEAL oil, crankshaft front

1шт.

23

NSS

NOT SOLD SEPARAT

TOOL seal installation

1шт.

24

NSS

NOT SOLD SEPARAT

TOOL seal installation

1шт.

25

J912772

RETAINER

bolt

1шт.

26

845-8060

BOLT,Hvy Hex, M8 x 60mm, Cl 8.8

1шт.

Выбрано товаров: 26
