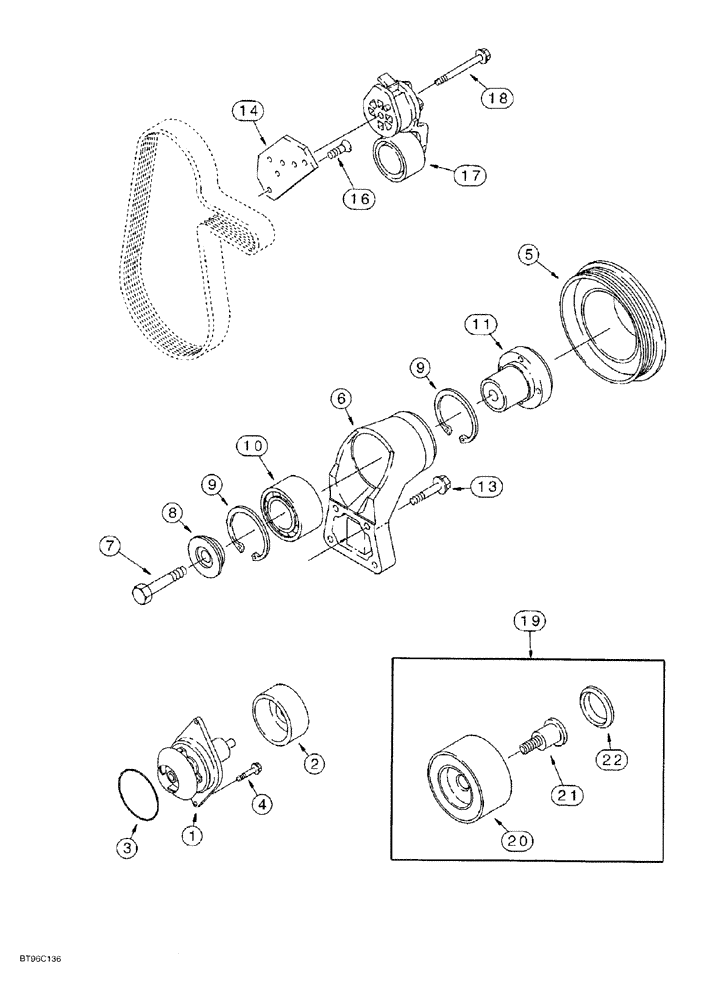

Запчасти Case 550G (2-22) - WATER PUMP SYSTEM, 4-390 AND 4T-390 ENGINE, PRIOR TO CRAWLER P.I.N. JJG0255794 (01) - ENGINE

J802970

PUMP, WATER

KIT, Replaces: A77703 and J802358

1шт.

J286278R

REMAN-WATER PUMP

550G Long Track, Prior To P.I.N. JJG0255794,

1шт.

J286278C

CORE-WATER PUMP

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

PUMP ASSY. water

1шт.

2

NSS

NOT SOLD SEPARAT

PULLEY water pump

1шт.

3

238-5341

O-RING,0.21" Thk x 3.475" ID, -341, Cl 5, 75 Duro

1шт.

4

J900227

BOLT,Hex, M8 x 1.25 x 22mm, Cl 10.9

2шт.

5

J914459

PULLEY

fan

1шт.

6

J911922

SUPPORT ASSY.

fan pulley

1шт.

7

J907769

BOLT,Hex, M10 x 70mm, Cl 12.9

hex, special, 10 - 1.5 x 70 mm, class 12.9

1шт.

8

J923044

RETAINER

fan hub

1шт.

9

100-21250

SNAP RING,2.50", Int, #250

2шт.

10

J910739

BALL BEARING,35mm ID x 64mm OD x 37mm W

1шт.

11

J911924

HUB

fan

1шт.

13

845-8040

BOLT,Hvy Hex, M8 x 40mm, Cl 8.8

4шт.

14

J919736

SUPPORT

belt tension

1шт.

16

J925186

SCREW,Torx, M8 x 1.25 x 25mm, Cl 10.9

Special

2шт.

17

J934817

BELT TENSIONER

belt, Replaces: J918944

1шт.

18

854-10070

BOLT,Hvy Hex, M10 x 70mm, Cl 10.9

1шт.

19

A77817

KIT

belt tensioner pulley, used to replace pulley of J934817, Ref. 17

1шт.

20

NSS

NOT SOLD SEPARAT

PULLEY belt tensioner

1шт.

21

NSS

NOT SOLD SEPARAT

BOLT pulley

1шт.

22

NSS

NOT SOLD SEPARAT

SEAL dust

1шт.
