(2-21A) - MUFFLER MOUNTING AND EXHAUST PARTS, MODELS WITH TURBOCHARGER CRAWLER P.I.N. JJG0255794 AND AFTER

Запчасти Case 550G (2-21A) - MUFFLER MOUNTING AND EXHAUST PARTS, MODELS WITH TURBOCHARGER CRAWLER P.I.N. JJG0255794 AND AFTER (01) - ENGINE

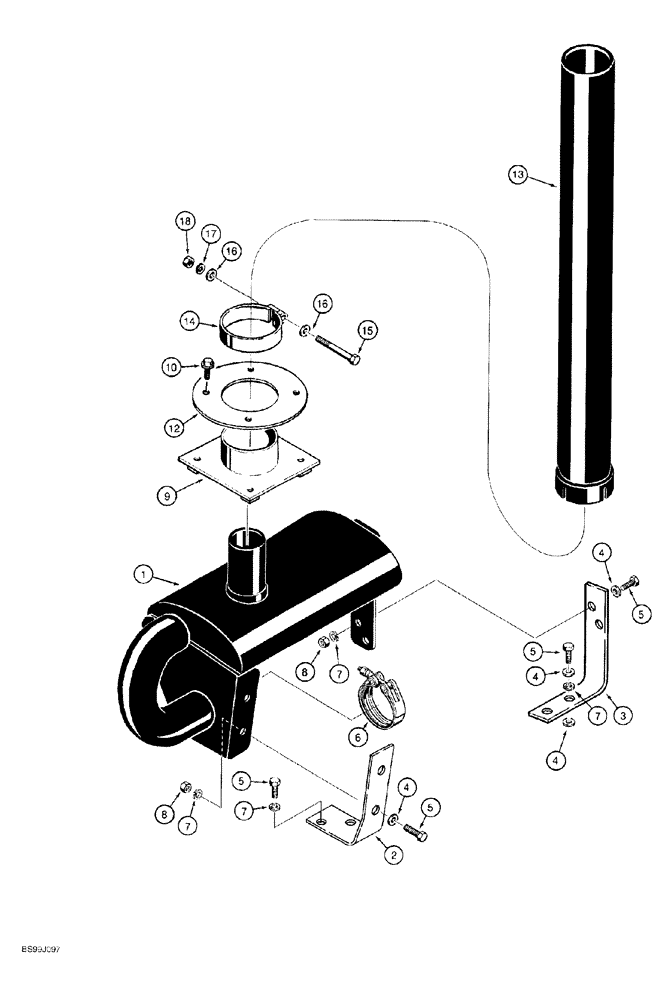

Схема запчастей Case 550G - (2-21A) - MUFFLER MOUNTING AND EXHAUST PARTS, MODELS WITH TURBOCHARGER CRAWLER P.I.N. JJG0255794 AND AFTER (01) - ENGINE
15
5
16
6
13
4
14
1
8
8
4
16
5
9
3
10
7
17
7
5
2
12
5
7
4
18
7
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

301320A1

MUFFLER

exhaust

1шт.

2

303371A1

BRACKET

mounting, muffler, rear

1шт.

3

303372A1

BRACKET

mounting, muffler, rear

1шт.

4

496-41041

WASHER,13/32" x 1 1/8" x .134"

Hardened

8шт.

5

613-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

hex, full threads, 10 - 1.5 x 30 mm

8шт.

6

A170467

CLAMP,72mm ID

exhaust tube retaining, includes hardware

1шт.

7

892-11010

LOCK WASHER,M10

8шт.

8

825-1410

NUT,M10, Cl 8

4шт.

9

R42378

BRACKET

exhaust pipe

1шт.

10

160-102

BOLT,Hex, 3/8" - 16 x 1", Gr 8, Full Thd

4шт.

12

182803A1

RING

FLANGE exhaust support

1шт.

13

R50444

PIPE

exhaust, muffler

1шт.

14

R42854

CLAMP

exhaust pipe

1шт.

15

113-2272

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

1шт.

16

195-81019

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

flat, 13/32" x 13/16" x 1/16"

2шт.

17

492-11038

LOCK WASHER,3/8"

1шт.

18

129-770

NUT,3/8"-16, G5

1шт.

19

102436A1

DECAL

attention, operating turbocharged engine, see Figure 9-38, Ref. 5, not illustrated

1шт.
