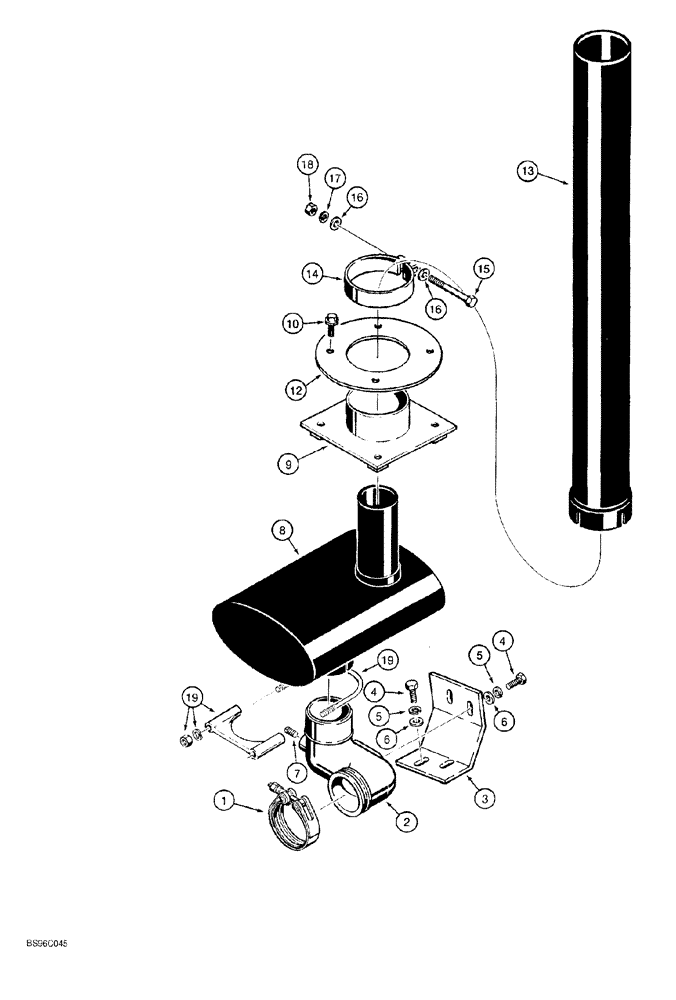

Запчасти Case 550G (2-20) - MUFFLER MOUNTING AND EXHAUST PARTS, MODELS WITH TURBOCHARGER, PRIOR TO CRAWLER P.I.N. JJG0255794 (01) - ENGINE

1

A170467

CLAMP,72mm ID

exhaust tube retaining, includes hardware

1шт.

2

A170987

ELBOW

TUBE

1шт.

3

A190798

SUPPORT

mounting

1шт.

4

613-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd

4шт.

5

892-11010

LOCK WASHER,M10

4шт.

6

D41740

WASHER

flat, special, 3/8"

4шт.

7

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

Replaces 221-841

1шт.

8

A189478

MUFFLER

exhaust, used on models with a turbocharger

1шт.

9

R42378

BRACKET

exhaust pipe

1шт.

10

160-102

BOLT,Hex, 3/8" - 16 x 1", Gr 8, Full Thd

4шт.

12

182803A1

RING

FLANGE exhaust support

1шт.

13

R50444

PIPE

exhaust, muffler

1шт.

14

R42854

CLAMP

exhaust pipe

1шт.

15

113-2272

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

1шт.

16

195-81019

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

flat, 13/32" x 13/16" x 1/16"

2шт.

17

492-11038

LOCK WASHER,3/8"

1шт.

18

129-770

NUT,3/8"-16, G5

1шт.

19

L14222

CLAMP,79.25mm ID

includes hardware

1шт.
