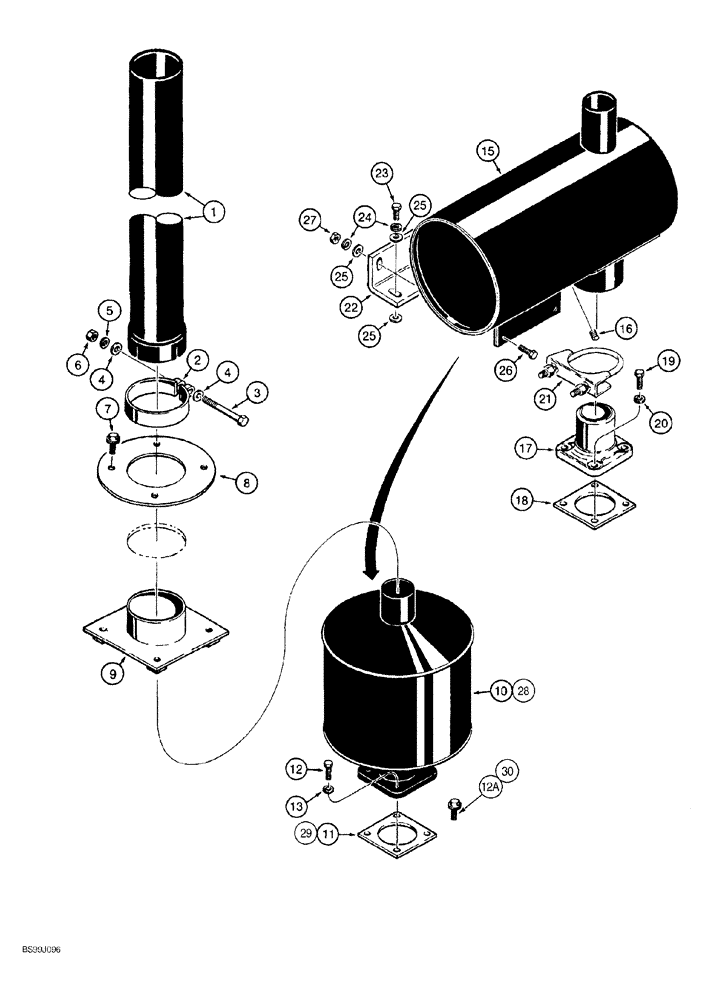

Запчасти Case 550G (2-18) - MUFFLER MOUNTING AND EXHAUST PARTS, MODELS WITHOUT TURBOCHARGER (01) - ENGINE

1

R50444

PIPE

exhaust

1шт.

2

R42854

CLAMP

exhaust pipe

1шт.

3

113-2272

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

1шт.

4

195-81019

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

flat, 13/32" x 13/16" x 1/16"

2шт.

5

492-11038

LOCK WASHER,3/8"

1шт.

6

129-770

NUT,3/8"-16, G5

1шт.

7

160-102

BOLT,Hex, 3/8" - 16 x 1", Gr 8, Full Thd

4шт.

8

182803A1

RING

FLANGE exhaust support

1шт.

9

R42378

BRACKET

exhaust pipe

1шт.

10

A172785

MUFFLER

standard, prior to crawler P.I.N. JJG0255794

1шт.

10

302938A1

MUFFLER

standard, crawler P.I.N. JJG0255794 and after

1шт.

11

J912220

GASKET,0.4mm Thk

steel, Serial Range: muffler-manifold

1шт.

12

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

No Longer Used, Order 844-10025

4шт.

12a

844-10025

BOLT,Hex, M10 x 25mm, Cl 8.8

Replaces 614-10025 and 892-11010

4шт.

13

892-11010

LOCK WASHER,M10

No longer used, Order 844-10025 shown above

4шт.

15

A172489

MUFFLER

spark arrester, if used, mounting, Includes: Ref. 16

1шт.

16

217-77

PLUG

square, 3/8" PT, spark arrester muffler and mounting

1шт.

17

A170611

ADAPTER

muffler, spark arrester, mounting

1шт.

18

J912220

GASKET,0.4mm Thk

steel, spark arrester muffler and mounting

1шт.

19

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

Spark Arrester Muffler and Mounting

4шт.

20

892-11010

LOCK WASHER,M10

Spark arrester muffler and mounting

4шт.

21

A62874

CLAMP

includes hardware, spark arrester muffler and mounting

1шт.

22

A172480

SUPPORT

spark arrester muffler, mounting

1шт.

23

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

Spark arrester muffler and mounting

2шт.

24

892-11010

LOCK WASHER,M10

Spark arrester muffler and mounting

4шт.

25

D41740

WASHER

flat, special, 3/8", spark arrester muffler and mounting

1шт.

26

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

Spark arrester muffler and mounting

2шт.

27

825-1410

NUT,M10, Cl 8

Spark arrester muffler and mounting

2шт.

28

302396A1

MUFFLER

spark arrester, if used, mounting

1шт.

29

J912220

GASKET,0.4mm Thk

steel, muffler to manifold, used with muffler 302396A1 shown above, spark arrester muffler and mounting

1шт.

30

844-10025

BOLT,Hex, M10 x 25mm, Cl 8.8

Used with muffler 302396A1 shown above, Spark arrester muffler and mounting

4шт.
