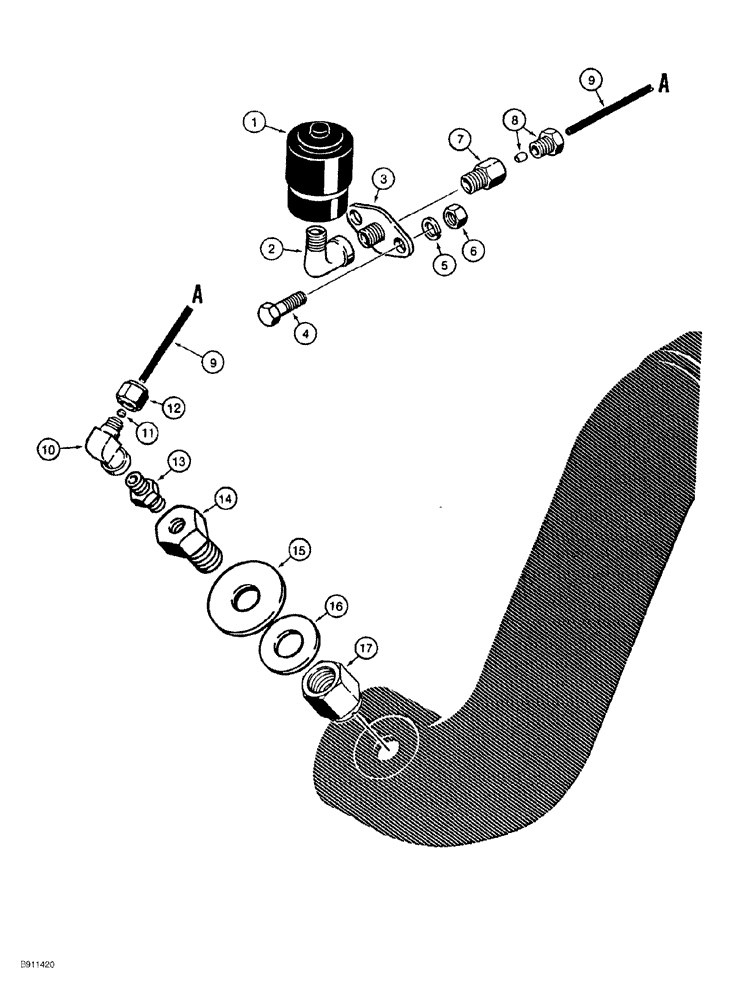

Запчасти Case 550G (2-16) - AIR RESTRICTION INDICATOR, MODELS WITH A TURBOCHARGER (01) - ENGINE

1

A59569

INDICATOR

restriction, air

1шт.

2

217-20

ELBOW,90 Degree, 1/8"-28 NPTF, Fem x 1/8"-27 NPTF Male

Street

1шт.

3

H357707

FLANGE

BRACKET restriction indicator mounting

1шт.

4

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

5

492-11025

LOCK WASHER,1/4"

2шт.

6

425-104

NUT,1/4"-20, Cl 5

2шт.

222-400

HYD CONNECTOR,1/8" NPT x 5/16"-24

ADAPTER compression, 1/8" tube O.D. x 1/8" PT, Includes: Ref. 7 and 8

1шт.

7

NSS

NOT SOLD SEPARAT

BODY adapter

1шт.

8

222-500

TUBE NUT,5/16" - 24 NPT

hex, 1/8" tube O.D. x 5/16"-24

1шт.

9

R52565

TUBE,0.125" OD x 29.5" L

nylon, 750 mm (29-1/2") long, cut from L60539X bulk tube shown below, no longer available, order R49591 shown below

1шт.

9

R49591

PLASTIC-RUBBER TUBE,3.18 mm OD x 530 mm L

nylon, 530 mm (20-7/8") long, cut from L60539X bulk tube, shown below, Replaces: R52565

1шт.

222-5390

ELBOW,90 Degree, 3/8"-24 x 1/8" NPT

compression, 1/8" tube O.D. x 1/8" female PT, 90°, if used, Includes: Ref. 10 - 12

1шт.

10

NSS

NOT SOLD SEPARAT

BODY elbow

1шт.

11

222-4976

SLEEVE,1/8" Tube

O.D. 1/8" Tube

1шт.

12

222-4988

TUBE NUT,1/8" Tube

hex, O.D. x 3/8"-24 1/8" Tube

1шт.

13

D36264

FITTING

ADAPTER air restriction indicator, filter-type

1шт.

14

A170609

FITTING

ADAPTER special, 1/8" PT x 3/4" NC, if used

1шт.

15

S107793

SEALING WASHER

WASHER, with rubber, 3/4", if used

1шт.

16

495-11081

WASHER,3/4", SAE

If used

1шт.

17

131-83

NUT,3/4"-10

heavy hex, self-locking, 3/4" NC, if used

1шт.

L60539X

TUBE

bulk, nylon, 3 mm (1/8") ID x 4267 mm (168") long, See Ref. 9's

1шт.
