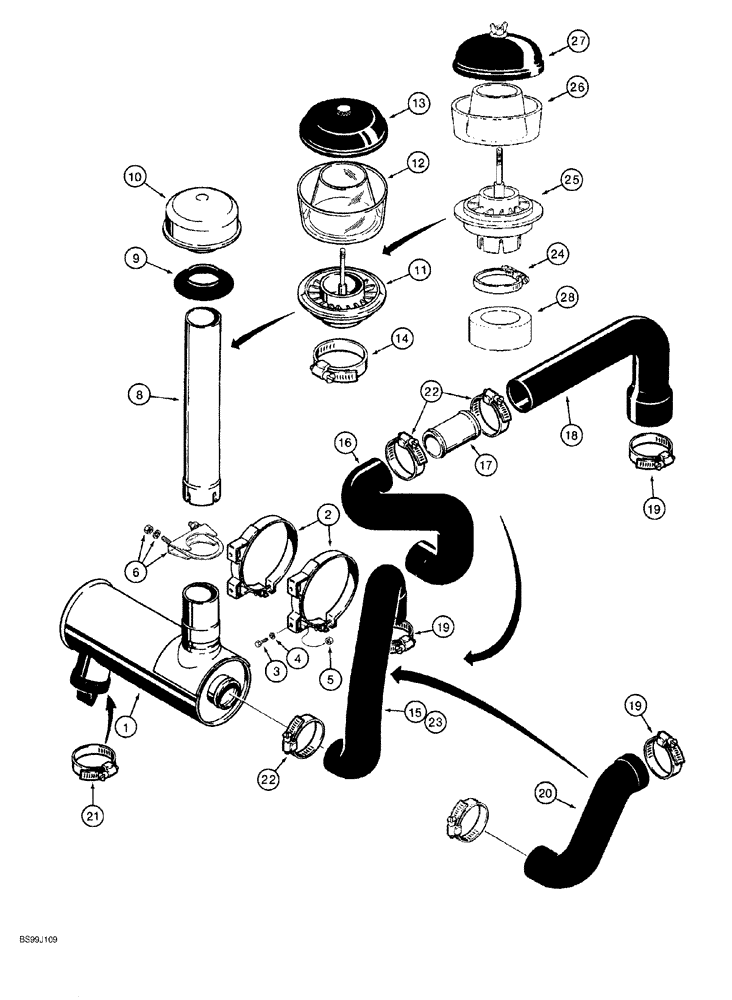

Запчасти Case 550G (2-10) - AIR CLEANER MOUNTING AND INTAKE PARTS (01) - ENGINE

1

A170966

AIR CLEANER

ASSY., prior to crawler P.I.N. JJG0255794, see Figure 2-12

1шт.

1a

128783A1

AIR CLEANER

ASSY. engine, crawler P.I.N. JJG0255794 and after, see Figure 2-13A, not illustrated

1шт.

2

L113910

CLAMP

air cleaner mounting, includes hardware

2шт.

3

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

4

492-11038

LOCK WASHER,3/8"

4шт.

5

425-106

NUT,3/8"-16, Cl 5

4шт.

6

L14222

CLAMP,79.25mm ID

air cleaner pipe, includes hardware, prior to crawler P.I.N JJG0255794

1шт.

8

A170512

TUBE

air cleaner inlet, prior to crawler P.I.N JJG0255794

1шт.

9

D93451

GROMMET

hood, air cleaner inlet pipe

1шт.

10

A61277

CAP

air cleaner, if used

1шт.

A24391

AIR CLEANER

PRECLEANER ASSY., if used, no longer available, order 228120A1 shown below, Includes: Ref. 11 - 14

1шт.

193867A1

PRECLEANER

(AIR) if used, no longer used, order 228120A1 shown below, Includes: Ref. 11 - 14

1шт.

11

NSS

NOT SOLD SEPARAT

BODY precleaner

1шт.

12

365413R1

BOWL

precleaner

1шт.

13

365412R91

COVER

precleaner

1шт.

14

214-1448

HOSE CLAMP,#48, 2.56" - 3.5", Type F Worm

adjustable, precleaner, 2-9/16" - 3-1/2" dia., use with 193867A1

1шт.

15

R49013

INTAKE AIR HOSE,63.50 mm ID, 76.20 mm ID x 556.00 mm, SAE J200

Air cleaner to intake manifold, Used on models without a turbocharger with a standard muffler, Prior to crawler P.I.N. JJG0255794, if used

1шт.

16

R56616

INTAKE AIR HOSE,63.50 mm ID x 290.00 mm, SAE J200

At air cleaner, Used on models without a turbocharger with a spark arresting muffler, Prior to crawler P.I.N. JJG0255794, if used

1шт.

17

R56615

TUBE,63.5 mm OD x 115 mm L

intermediate, prior to crawler P.I.N. JJG0255794, if used

1шт.

18

R56614

INTAKE AIR HOSE,63.50 mm ID, 76.20 mm ID x 401.00 mm, SAE J200

At intake manifold, Used on models without a turbocharger with a spark arresting muffler, Prior to crawler P.I.N. JJG0255794, if used

1-2шт.

19

214-3164

HOSE CLAMP,3-1/4" - 4-1/8", HD Worm

adjustable, at intake manifold, 3-1/4" - 4-1/8" dia.

1шт.

20

R49014

PIPE

air cleaner to turbocharger, used on models with a turbocharger, prior to crawler P.I.N. JJG0255794, if used

1шт.

20

259526A1

INTAKE AIR HOSE,76.00 mm ID x 262.00 mm, SAE J200

air cleaner to turbocharger, used on models with a turbocharger, crawler P.I.N. JJG0255794 and after, if used

1шт.

21

214-1448

HOSE CLAMP,#48, 2.56" - 3.5", Type F Worm

adjustable, air cleaner dust valve, 2-9/16" - 3-1/2" dia.

1шт.

22

214-3256

HOSE CLAMP,2-3/4" - 3-5/8", HD Worm, W/ Liner

adjustable, air cleaner hose, 2-3/4" - 3-5/8" dia.

1-2шт.

23

304231A1

INTAKE AIR HOSE,387.00 mm, SAE J200

Air cleaner to intake manifold, Used on models without a turbocharger with a standard muffler or with a spark arresting muffler, crawler P.I.N. JJG0255794 and after, if used, no longer available, Order 314707A1 shown below

1шт.

23

314707A1

LARGE HOSE

HOSE,LARGE air cleaner, to intake manifold, used on models without a turbocharger with a standard muffler or with a spark arresting muffler, crawler P.I.N. JJG0255794 and after, if used, Replaces: 304231A1

1шт.

228120A1

PRECLEANER

ASSY. air cleaner, Replaces: A24391 and 193867A1

1шт.

24

214-1464

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

Adjustable, Precleaner

1шт.

25

NSS

NOT SOLD SEPARAT

BASE precleaner

1шт.

26

277377R1

FILTER BOWL

BOWL precleaner

1шт.

27

A42281

COVER

precleaner

1шт.

28

301732A1

PAD

air cleaner seal

1шт.
