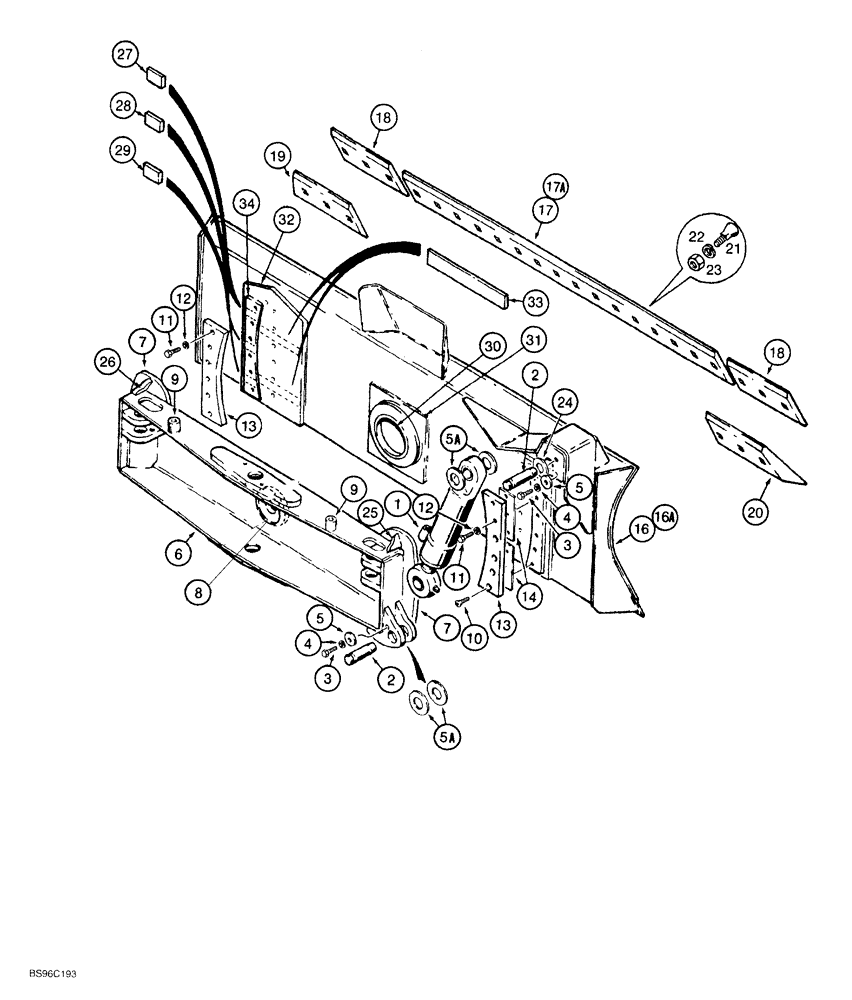

Запчасти Case 550G (9-04) - LEVELING BEAM, BLADE AND TILT CYLINDER (07) - HYDRAULIC SYSTEM

1

1542717C1

CYLINDER

ASSY. tilt, 76 mm (3") ID x 203 mm (8") stroke, see Figure 8-22

1шт.

2

D34796

PIN

tilt cylinder mounting

2шт.

3

413-1016

BOLT,Hex, 5/8" - 11 x 1", Gr 5

hex, 5/8" NC x 1"

2шт.

4

492-11062

BEARING WASHER,5/8"

2шт.

5

70523

WASHER,16.67mm ID x 47.63mm OD x 6.35mm Thk

flat, special, pin retaining

2шт.

5a

96-81002

WASHER,1.53" ID x 3" OD x 0.26" Thk

flat, hardened, tilt cylinder mounting at leveling beam and blade, 1-17/32" x 3" x 1/4"

2шт.

R58797

BEAM

ASSY. leveling, blade, Includes: Ref. 6 - 9

1шт.

6

NSS

NOT SOLD SEPARAT

BEAM leveling, blade

1шт.

7

R58793

LARGE PLATE

PLATE, LARGE rub

2шт.

8

D34869

LARGE PLATE

Round swivel

1шт.

9

R58796

BLOCK

tapped

2шт.

10

61-46224

HEX SOC SCREW,FLAT, 5/8" x 1-1/2"

hex socket, 5/8" NC x 1-1/2"

4шт.

11

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

hex, 5/8" NC x 1-3/4"

8шт.

12

492-11062

BEARING WASHER,5/8"

8шт.

13

127980A1

LARGE PLATE

PLATE, LARGE wear

2шт.

14

D47911

SHIM,.0359" Thk

Wear plate

1шт.

16

182719A1

BLADE

53" gauge long track models, 2438 mm (96") wide, Replaces: R58812

1шт.

16a

182720A1

HALF BLADE

64" LGP models, 2642 mm (104") wide, Replaces: R58813

1шт.

17

R57844

EDGE

Cutting, center, long track models, 72 inches OAL

1шт.

17a

R57843

EDGE, CUTTING

Center, LGP models 80 inches OAL

1шт.

18

R57841

EDGE, CUTTING

end, standard

2шт.

19

R57846

EDGE, CUTTING

left-hand end, heavy duty

1шт.

20

R57845

EDGE, CUTTING

right-hand end, heavy duty

1шт.

21

20-2828

CARRIAGE BOLT,#3, 1/2" - 13 x 1 3/4", Gr 8

plow, 1/2" NC x 1-3/4"

24-26шт.

22

80679

LOCK WASHER,1/20.507 CST ZND

24-26шт.

23

429-108

NUT,1/2"-13, G8

hex, 1/2" NC, grade 8

24-26шт.

24

A12089

WASHER,38.89mm ID x 76.2mm OD x 1.9mm Thk

flat, special

1шт.

25

107461A1

GUSSET

leveling beam

1шт.

See service bulletin number NCR SB 021.2 92 for installation instructions.

1шт.

26

107462A1

GUSSET

leveling beam

1шт.

See service bulletin number NCR SB 021.2 92 for installation instructions.

1шт.

27

R40625

SHIM,.104" Thk

Mounting plate

1шт.

See service bulletin number NCR SB 021.2 92 for installation instructions.

1шт.

28

R40624

SHIM,.059" Thk

Mounting plate

1шт.

See service bulletin number NCR SB 021.2 92 for installation instructions.

1шт.

29

R40623

SHIM,.024" Thk

Mounting plate

1шт.

See service bulletin number NCR SB 021.2 92 for installation instructions.

1шт.

30

D34855

RING

swivel, blade

1шт.

See service bulletin number NCR SB 021.2 92 for installation instructions.

1шт.

31

R48943

LARGE PLATE

PLATE, LARGE swivel backing

1шт.

See service bulletin number NCR SB 021.2 92 for installation instructions.

1шт.

32

R58809

LARGE PLATE

PLATE, LARGE backing

2шт.

See service bulletin number NCR SB 021.2 92 for installation instructions.

1шт.

33

R40626

SHIM,.024" Thk

Backing plate

1шт.

See service bulletin number NCR SB 021.2 92 for installation instructions.

1шт.

34

R58808

LARGE PLATE

PLATE, LARGE tapped mounting

2шт.

See service bulletin number NCR SB 021.2 92 for installation instructions.

1шт.
