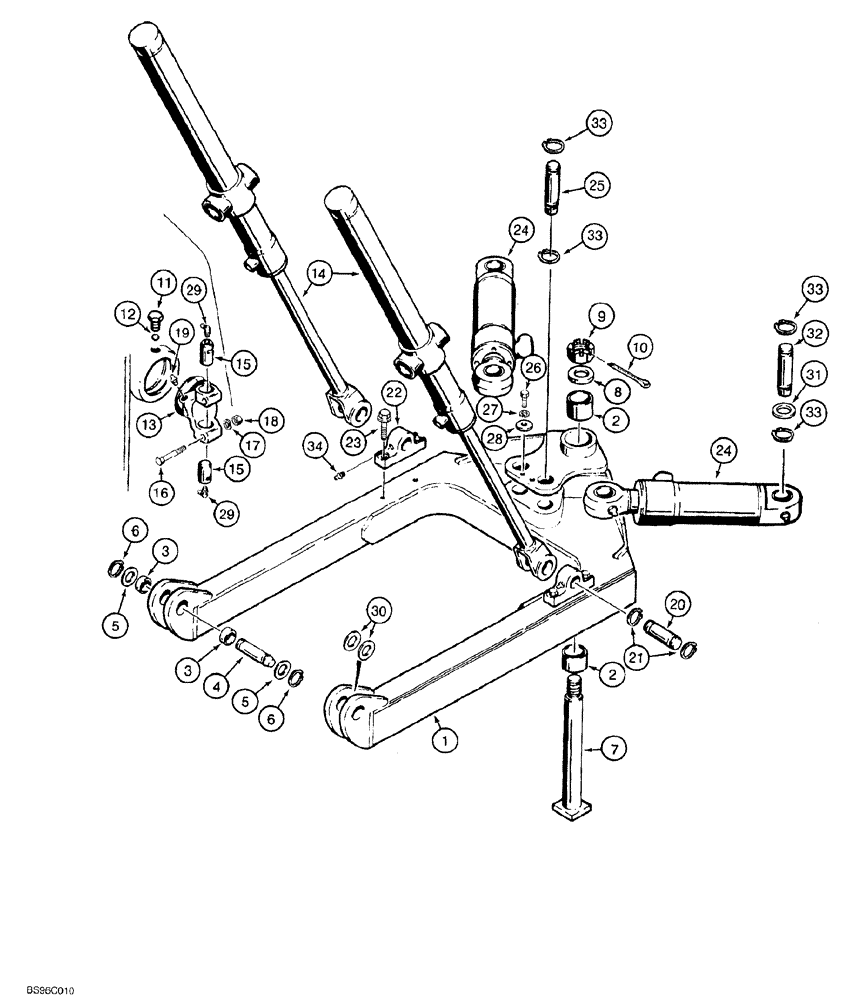

Запчасти Case 550G (9-02) - C-FRAME AND CYLINDERS (07) - HYDRAULIC SYSTEM

1

241962A1

FRAME

ASSY., C dozer, Replaces: R57259, Includes: Ref. 2 and 3

1шт.

2

D33023

BUSHING,51.02mm ID x 63.5mm OD x 50.8mm L

leveling beam mounting, 2" x 2-1/2" x 2"

2шт.

3

D32919

BUSHING,38.4mm ID x 47.63mm OD x 19.05mm L

mounting lug

4шт.

4

R50774

SPLIT PIN/SAFETY PIN,38.1mm OD x 127mm L

C-frame mounting

2шт.

5

D28610

WASHER,38.5mm ID x 63.5mm OD x 2.66mm Thk

flat, special

4шт.

6

100-16150

SNAP RING,#150, Ext

Pin

4шт.

7

D34789

AXLE PIN

leveling, Serial Range: beam-C-frame

1шт.

8

495-21162

WASHER,1 1/2"

flat, 1-5/8" x 3-1/2" x 3/16"

1шт.

9

425-1224

SLOTTED NUT,1 1/2"-6, G5

hex, slotted, 1-1/2" NC

1шт.

10

432-1640

COTTER PIN,1/4" x 2 1/2"

1/4" x 2-1/2"

1шт.

11

D28481

PLUG

special

2шт.

12

211-1024

BALL,3/4" Dia

chrome alloy steel, 3/4", grade 24

38шт.

13

R47082

TRUNNION

inner race

2шт.

14

1542565C1

CYLINDER

ASSY. lift, 64 mm (2-1/2") ID x 711 mm (28") stroke, see Figure 8-20

2шт.

15

D24508

PIN,31.74mm OD x 50.8mm L

, Serial Range: cylinder-trunnion

4шт.

16

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

4шт.

17

492-11038

LOCK WASHER,3/8"

4шт.

18

425-106

NUT,3/8"-16, Cl 5

4шт.

19

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

2шт.

20

D46467

PIN

lift, Serial Range: cylinder-C-frame

2шт.

21

103-16125

SNAP RING,#125, Ext

Cylinder mounting pin

4шт.

22

D46466

BRACKET

cylinder mounting

2шт.

23

360-1040

BOLT,Hex, 5/8" - 11 x 2 1/2", Gr 8

hex flange, 5/8" NC x 2-1/2", grade 8, use with B17577 blue Loctite No. 242 shown below

4шт.

24

140146A1

CYLINDER ASSY.

angle, 102 mm (4") ID x 211 mm (8-5/16") stroke, see Figure 8-24

2шт.

25

D34795

AXLE PIN,35.87mm OD x 136.4mm L

angle, Serial Range: cylinder-C-frame

2шт.

26

413-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5

2шт.

27

492-11062

BEARING WASHER,5/8"

2шт.

28

70523

WASHER,16.67mm ID x 47.63mm OD x 6.35mm Thk

flat, special

2шт.

29

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

4шт.

30

D28610

WASHER,38.5mm ID x 63.5mm OD x 2.66mm Thk

flat, special

1шт.

31

A12089

WASHER,38.89mm ID x 76.2mm OD x 1.9mm Thk

flat, special

1шт.

32

D44881

PIN,38.1mm OD x 136.4mm L

angle cylinder to leveling beam

2шт.

33

D25279

SNAP RING,M35, Int

4шт.

34

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

B17577

LOCTITE

blue, No. 242, 6 ml tube, see Ref. 23

1шт.
