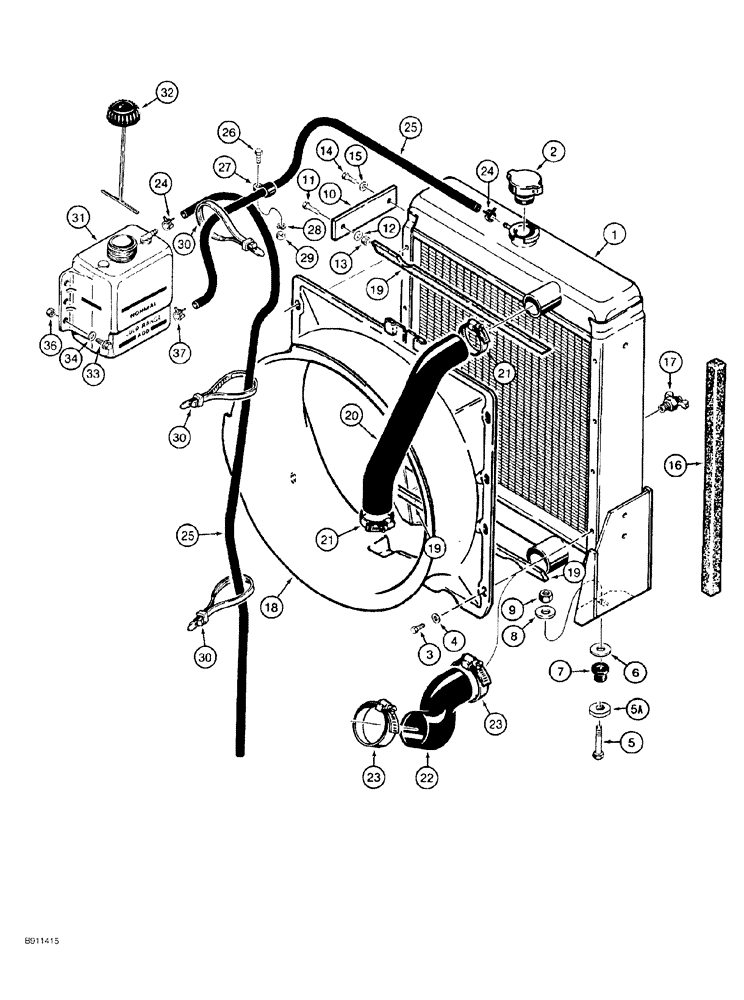

Запчасти Case 550G (2-08) - RADIATOR, HOSES AND COOLANT BOTTLE (01) - ENGINE

1

A172867

RADIATOR

standard, if used

1шт.

1

A172869

RADIATOR

anti-sandblast, if used

1шт.

2

A170241

RADIATOR CAP

15 psi

1шт.

3

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

Use with B17577 blue Loctite No. 242 shown below

8шт.

4

R55271

WASHER

flat, Replaces: H272880

8шт.

5

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

2шт.

5a

D25022

WASHER

flat, special, radiator mounting, 17/32" x 1-3/4" x 3/16"

2шт.

6

R40262

WASHER,13.11mm ID x 47.75mm OD x 2.38mm Thk

flat, special

2шт.

7

R29799

SHOCK ABSORBER

INSULATOR rubber

2шт.

8

496-21053

WASHER,17/32" x 1 1/16" x .134"

Hardened

2шт.

9

231-4118

LOCK NUT,1/2"-13, GB

hex, 1/2" NC

2шт.

10

A170665

STABILIZER

STRAP radiator mounting

2шт.

11

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

12

39519

WASHER,10.31mm ID x 34.9mm OD x 3.57mm Thk

flat, special, 3/8"

2шт.

13

230-4216

LOCK NUT,3/8"-16, GA

2шт.

14

613-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

Use with B17577 blue Loctite No. 242, Shown below

2шт.

15

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32")

2шт.

16

R53691

FILLING STRIP

PAD, 580 mm (23-13/16") long, cut from A139751 bulk pad shown below

2шт.

17

217-92

COCK

VALVE, 1/4" PT

1шт.

18

A173459

SHROUD

fan, prior to crawler P.I.N. JJG0255794

1шт.

18

186433A1

SHROUD

fan, crawler P.I.N JJG0255794 and after

1шт.

19

178769A1

SEAL

adhesive-backed, fan shroud

2шт.

20

A170239

RADIATOR HOSE,45.00 mm ID x 265.00 mm, SAE 20R4 CLASS C PER SAE J20 OR SAE 20R4 CLASS D1

Upper

1шт.

21

214-3140

HOSE CLAMP,1-3/4" - 2-5/8", HD Worm

adjustable., upper radiator hose, 1-3/4" - 2-5/8" dia.

2шт.

22

A170633

RADIATOR HOSE,58.00 mm ID x 220.00 mm, SAE 20R4 PER SAE J20 OR SAE 20R4 CLASS D1

Lower

1шт.

23

214-3148

HOSE CLAMP,2-1/4" - 3-1/8", HD Worm

Adj, lower radiator hose

2шт.

24

A171099

HOSE CLAMP,13.2mm - 15.4mm

spring-type

2шт.

25

A171872

HOSE,8.30 mm ID x 1000.00 mm, SAE J30, SAE 20R4 PER SAE j20e

Radiator to Coolant Bottle and Bottle Overflow, Cut from L126767 Bulk Hose Shown Below

2шт.

26

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

27

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

P-type, Coolant hose, at hood and side shield support

2шт.

28

492-11038

LOCK WASHER,3/8"

1шт.

29

425-106

NUT,3/8"-16, Cl 5

1шт.

30

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, nylon, coolant hoses to air cleaner hose and engine oil fill tube, 15"

1шт.

31

L127093

RESERVOIR

coolant

1шт.

32

1547924C1

CAP

recovery bottle

1шт.

33

121-107

SERRATED BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

34

495-11034

WASHER,5/16", SAE

(flat, 11/32" x 11/16" x 1/16")

4шт.

36

231-1445

NUT,5/16"-18, GB

1шт.

37

A171099

HOSE CLAMP,13.2mm - 15.4mm

spring-type, coolant bottle inlet, Replaces: 214-1404

1шт.

B17577

LOCTITE

blue, No. 242, 6 ml tube, see Ref. 3 and 14

1шт.

A139751

FILLING STRIP

FOAM bulk, 1905 mm (75") long, see Ref. 16

1шт.

L126767

HOSE,7.9mm ID x 2336mm L, SAE 30R6

See Ref. 25

1шт.
