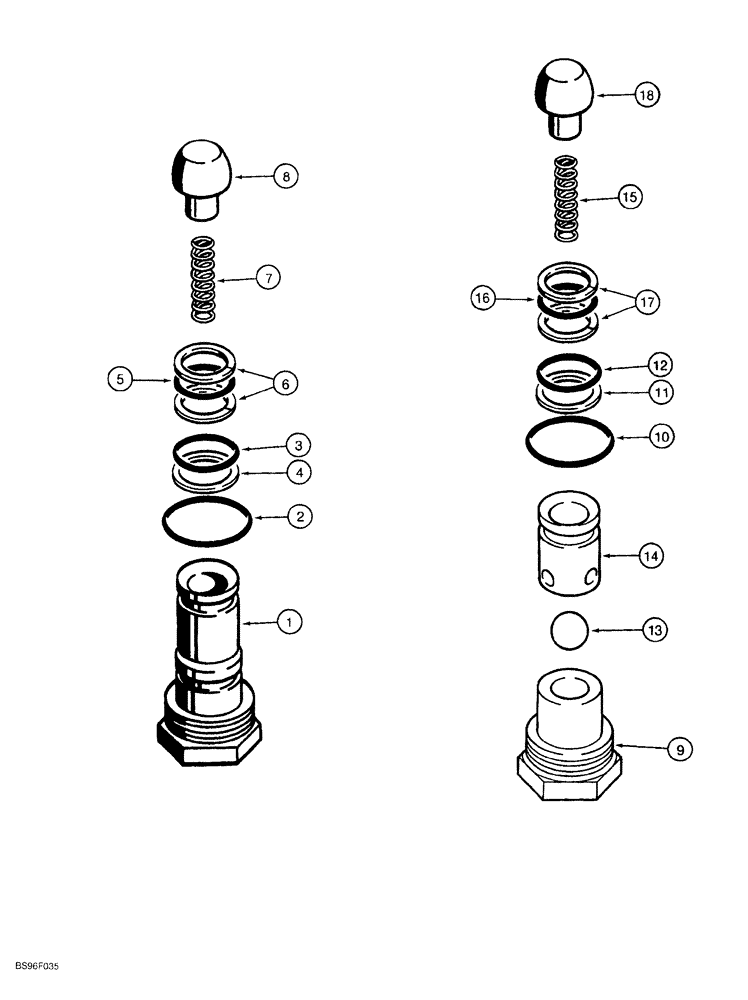

Запчасти Case 550G (8-44) - LOAD CHECK VALVE (07) - HYDRAULIC SYSTEM

D87307

VALVE

ASSY. load check, Includes: Ref. 1 - 8

6шт.

1

NSS

NOT SOLD SEPARAT

BODY load check valve

1шт.

2

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

3

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

4

L35297

RING,16.18mm ID x 19.07mm OD x 1.42mm Thk

backup

1шт.

5

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

1шт.

6

D88725

BACK-UP RING

2шт.

7

H268730

SPRING

poppet

1шт.

8

D28576

VALVE POPPET

load check

1шт.

122119A1

KIT

ASSY. anti-cavitation, check, lift section lower port, used on models with optional field installed 235418A1 low pressure regeneration kit, 8-04 or 8-05A for hyd. line routing to determine if your unit is equipped with 235418A1 kit, , Includes: Ref. 9-18

1шт.

9

NSS

NOT SOLD SEPARAT

BODY anti-cavitation check valve, models with low pressure regeneration kit

1шт.

10

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Anti-cavitation check valve, models with low pressure regeneration kit

1шт.

11

L35297

RING,16.18mm ID x 19.07mm OD x 1.42mm Thk

backup, center O-ring, anti-cavitation check valve, models with low pressure regeneration kit

1шт.

12

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Center, anti-cavitation check valve, models with low pressure regeneration kit

1шт.

13

211-1014

BALL,7/16" Dia

chrome alloy steel, grade 24, anti-cavitation check valve, models with low pressure regeneration kit

1шт.

14

N7902

RETAINER

ball, anti-cavitation check valve, models with low pressure regeneration kit

1шт.

15

H268730

SPRING

poppet, anti-cavitation check valve, models with low pressure regeneration kit

1шт.

16

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

Inner, anti-cavitation check valve, models with low pressure regeneration kit

1шт.

17

D88725

BACK-UP RING

inner O-ring, anti-cavitation check valve, models with low pressure regeneration kit

2шт.

18

D28576

VALVE POPPET

load check, anti-cavitation, models with low pressure regeneration kit

1шт.
